136 ADV200 WA • Quick start up guide - Specification and installation
A 1.4 Jumpers and Switches
INT-P-ADV (MASTER and SLAVE) cards
The jumpers and switches on these cards are factory-set. DO NOT change these
settings.
A 1.5 LEDs
The cards incorporate a LED diagnostics system for rapid analysis of everything
happening on a multi-unit drive.

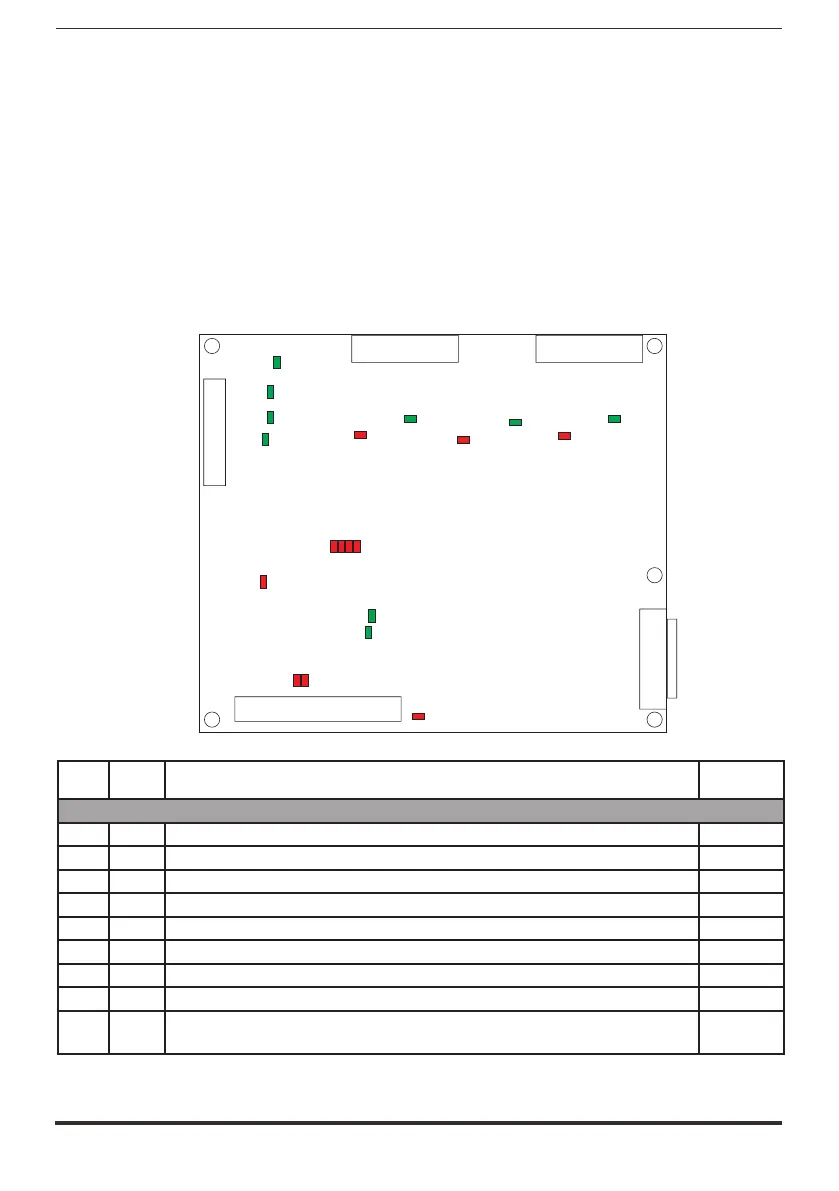

INT-P-ADV (MASTER and SLAVE) cards
H2
H3
H6
H1
H5
H17
H16
H4
DP
H7
H8
H9
H10 H11
H18
H15 H12
H14
H13
H19
LEDS Colour FUNCTION
Normal
functioning
MONITOR
H1 Green +15V�PWR�U monitor On
H2 Green +15V�PWR�V monitor On
H3 Green +15V�PWR�W monitor On
H4 Green +15V monitor On
H5 Green -15V monitor On
H6 Green +3,3V monitor On
H16 Green +24V monitor On
H17 Green +5V monitor On
DP* Green
It switches on after power supply start-up when the FPGA configuration sequence is
complete
On
