36 ADV200 WA • Quick start up guide - Specification and installation

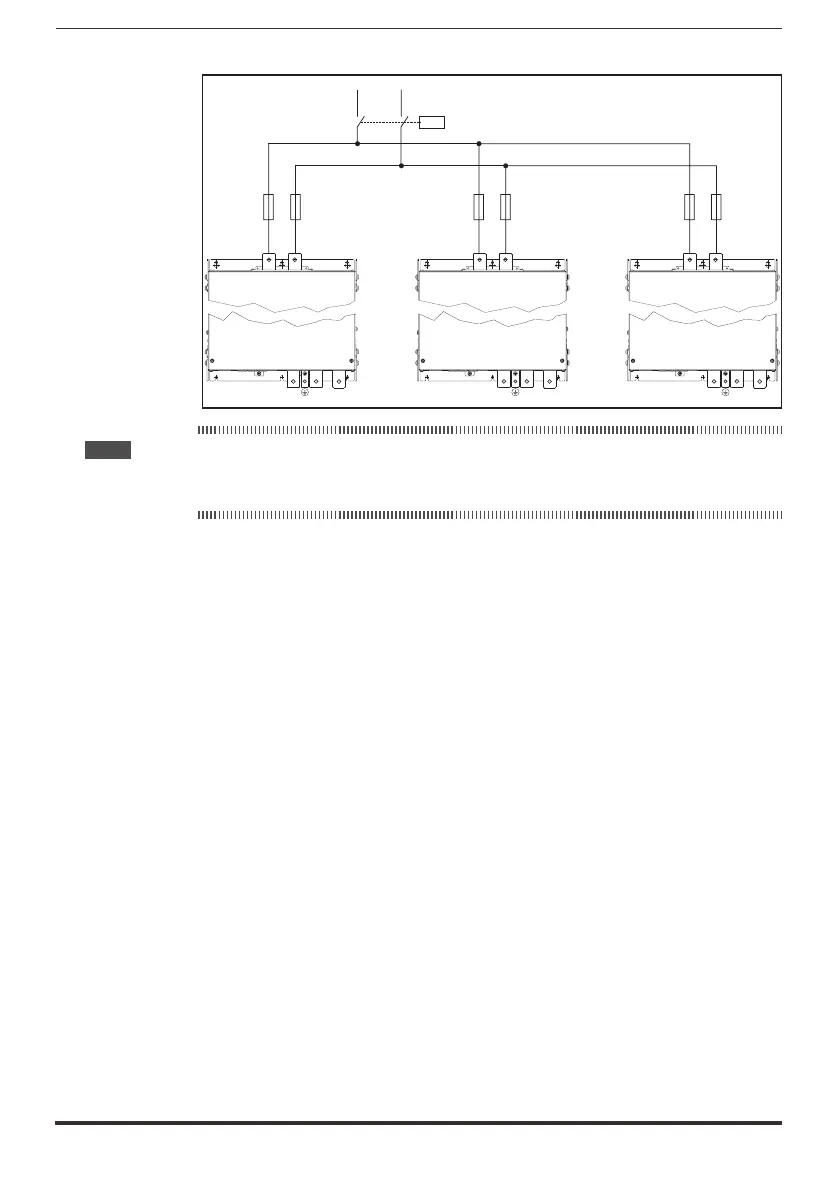

1000 ... 1200 kW (ADV200 WA-...-DC)

C D

U V W

ADV-...-MS..-4-DC

C D

U V W

ADV-...-SL-4-DC

(450 ... 750 V )DC

K1M

F1F1

C D

U V W

ADV-...-SL-4-DC

Note! Terminals BR1/BR2 are standard up to size ADV200 WA-3300, optional in sizes ADV200 WA-4370 ...

5750, larger sizes are not used.

Recommended combination F1 fuses: see paragraph “10.1 Optional external fuses”, page 117.

5.1.7 Input mains choke (L1)

Sizes ADV200 WA-1015 ... 61600: Integrated on DC-link.

Sizes ADV200 WA-72000 ... and above: external choke mandatory (for the rec-

ommended combination see chapter “10.2.1 Optional input chokes (L1)”, page 120.

Sizes ADV-...-DC: not available.
