ADV200 WA • Quick start up guide - Specification and installation 61
2 Description of the parameter.
3 Depends on the type of parameter:
● Numeric parameter: displays the numeric value of the parameter, in the
format required, and unit of measurement (gure A).
● Binary selection: the parameter may assume only 2 states, indicated as
OFF-ON or 0 - 1 (gure B).
● LINK type parameter: displays the description of the parameter set from the
selection list (gure C).
● ENUM type parameter: displays the description of the selection (gure D)
● Command: displays the method of execution of the command (gure E)
4 In this position, the following may be displayed:
● Numeric parameter: displays the default, minimum and maximum values
of the parameter. These values are displayed in sequence pressing the ► key
(figure A).
● LINK type parameter: displays the number (PAR) of the parameter set (g-
ure C) .
● ENUM type parameter: displays the numeric value corresponding to the cur-
rent selection (gure D).
● Command: in the case of an error in the command, indicates that ESC must
be pressed to terminate the command (figure G).
● Messages and error conditions (figure F):
Param read only attempt to modify a read-only parameter
Password active the parameter protection password is active
Drive enabled attempt to modify a non-modiable parameter with the drive enabled
Input value too high the value entered too high
Input value too low the value entered too low
Out of range attempt to insert a value outside the min. and max. limits

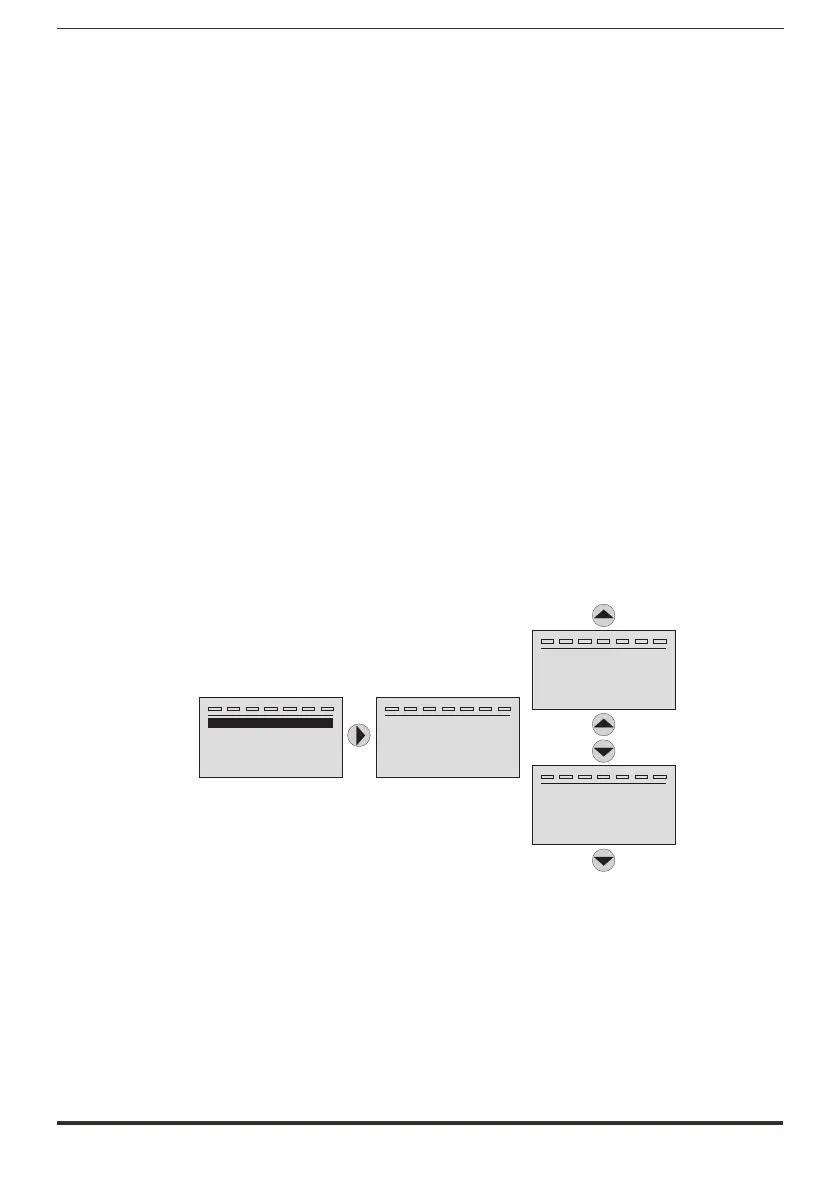

6.2.3 Scanning of the parameters
T+ T- EN LOC ILim n:0 AL
01 MONITOR
02 DRIVE INFO
03 STARTUP WIZARD
04 DRIVE CONFIG
T+ T- EN LOC ILim n:0 AL
0 1 . 0 1
PA R : 2 5 0
Out
p
ut current
+0. 3 A
T+ T- EN LOC ILim n:0 AL
0 1 . 0 2
PA R : 2 5 2
Out ut volta e
p g
-
1 V
T+ T- EN LOC ILim n:0 AL
0 1 . 2 2
PA R : 1 4 0 0
Digital out ut X mon
p
0
. . .
. . .
6.2.4 List of the last parameters modied
Pressing the CUST key, a list containing the last 10 parameters modied is ac-
cessed. One parameter at a time is displayed and the list can be scrolled using
the ▲ and ▼ keys.
To exit this list, press the ► key.
6.2.5 “Goto parameter” function
Pressing the CUST key twice, or once if already in the “List of modied param-
eters”, the “Goto parameter” is activated.
