ADV200 WA • Quick start up guide - Specification and installation 59

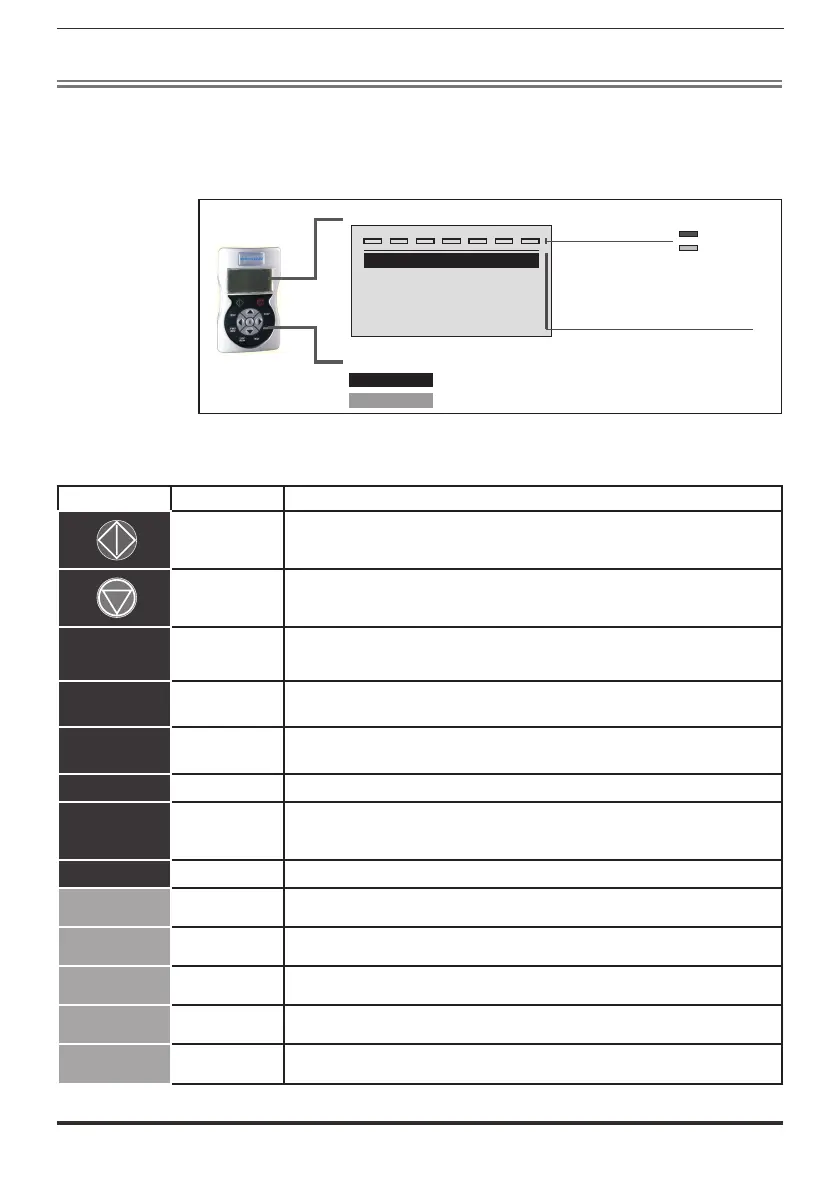

6 - Use of the keypad
This chapter describes the keypad and methods of use for display and program-
ming of inverter parameters.
6.1 Description
T+ T- EN LOC ILim n:0 AL
01 MONITOR
02 DRIVE INFO
03 STARTUP WIZARD
04 DRIVE CONFIG
7 virtual leds line:
Four alphanumeric lines
with 21-digit each
led is lit
led is off
Membrane keyboard :
• commands
• navigation
LCD display
Membrane keyboard
Inverter control programming menu navigation keys.
Symbol Reference Description
Start Starts the motor
Stop Stops the motor
ESC
Escape Returns to the higher level menu or submenu. Exit from a parameter, a list of parameters,
from the list of the last 10 parameters and from the Goto parameter function (see CUST).
Can be used to exit from a message that requires use of this.
FWD
REV
Forward/Reverse Reverses the direction of rotation of the motor
LOC
REM
Local/Remote Changes the method of use from local to remote and vice versa.
Is active only if the drive is not enabled.
RST
Reset Resets alarms only if the causes have been eliminated.
CUST
Custom The rst time it is pressed, displays the list of the last 10 parameters modied.
Pressing this key a second time activates the Goto parameter function for access to a
parameter through its number. To exit these functions, press the ◄ key.
DISP
Display Displays a list of drive functioning parameters.
E
Enter Accesses the submenu or parameter selected or selects an operation,
Is used during parameter modication to conrm the new value set.
▲
Up Moves selection in a menu or a list of parameters up.
During modication of a parameter, increases the value of the digit under the cursor.
▼
Down Moves the selection in a menu or a list of parameters down.
During modication of a parameter, decreases the value of the digit under the cursor.
◄
Left Returns to the higher level menu.
During modication of a parameter, moves the cursor to the left.
►
Right Accesses the submenu or parameter selected.
During modication of a parameter, moves the cursor to the right.
