84 ADV200 WA • Quick start up guide - Specification and installation

7.3 Programming

7.3.1 Menu display modes

The programming menu can be displayed in two modes, which can be selected

using the Access mode parameter (04 - DRIVE CONFIG menu), see chapter 6.5.2:

• Easy (default) only the main parameters are displayed.

• Expert all the parameters are displayed.

7.3.2 Programming of “function block” analog and digital input signals

The signals, variables and parameters of each single “function block” of the drive

are interconnected in order to achieve the congurations and controls inside the

control system.

These can be managed and modied using the keypad, PC congurator or eld-

bus programming.

The programming mode is based on the following logic:

src (source; i.e.: Ramp ref 1 src, PAR: 610)

This term denes the source of the function block input, i.e. the

signal to be processed in the function block.

The different congurations are dened in the relative selection lists.

cfg (conguration; i.e.: Mpot init cfg, PAR: 880)

This term refers to the parameter setting and its effect on the func-

tion block.

For example: Ramp times, internal reference adjustment, etc...

mon (display; i.e.: Ramp ref 1 mon, PAR: 620)

This term refers to the variable output from the function block,

which is the result of the calculations performed on the actual

block.

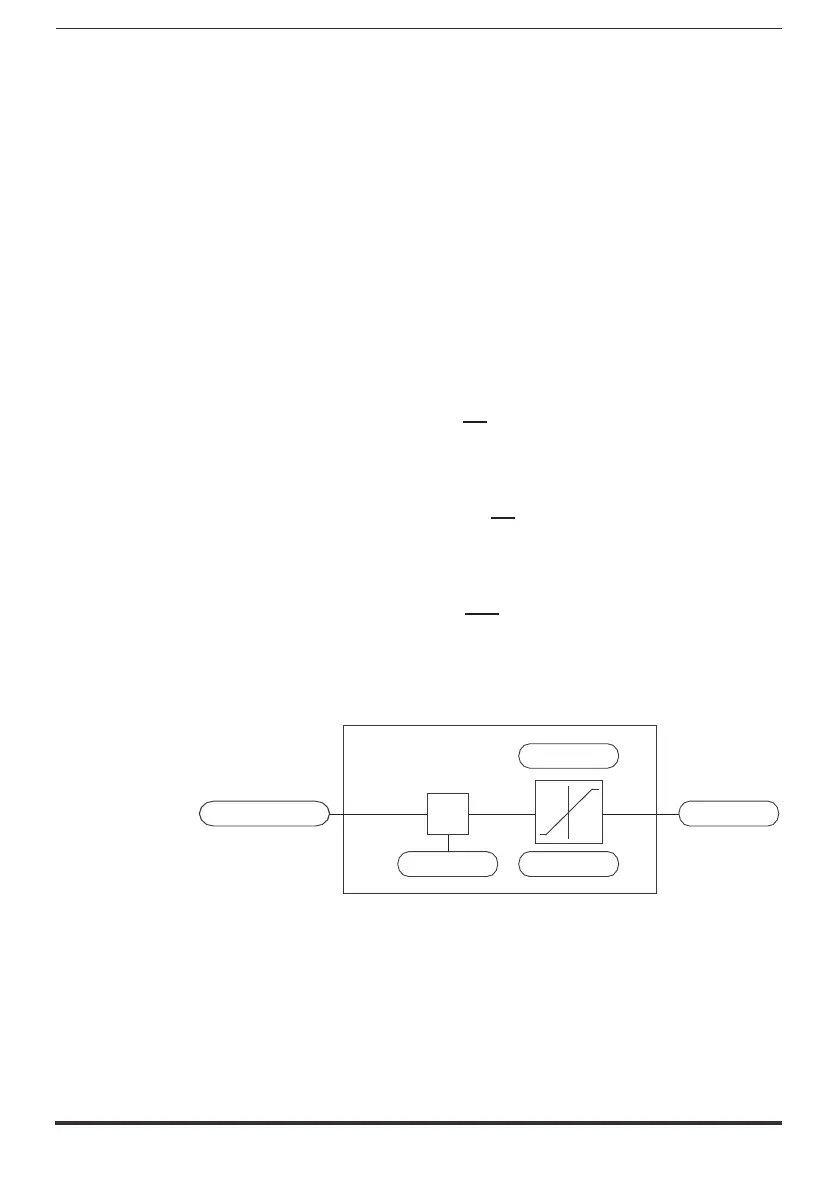

Input selected

Parameter

Variable

cfg

src

mon

Function block

7.3.3 Variable interconnections mode

The source (src) allows the desired control signal to be assigned to the function

block input.

This operation is performed by using specic selection lists.

Possible control signal sources:

1 – Physical terminal

The analog and digital signals come from the terminal strip of the regulation card
