28 ADV200 WA • Quick start up guide - Specification and installation

5.1.2 Connection of shielding

• Sizes 1...5

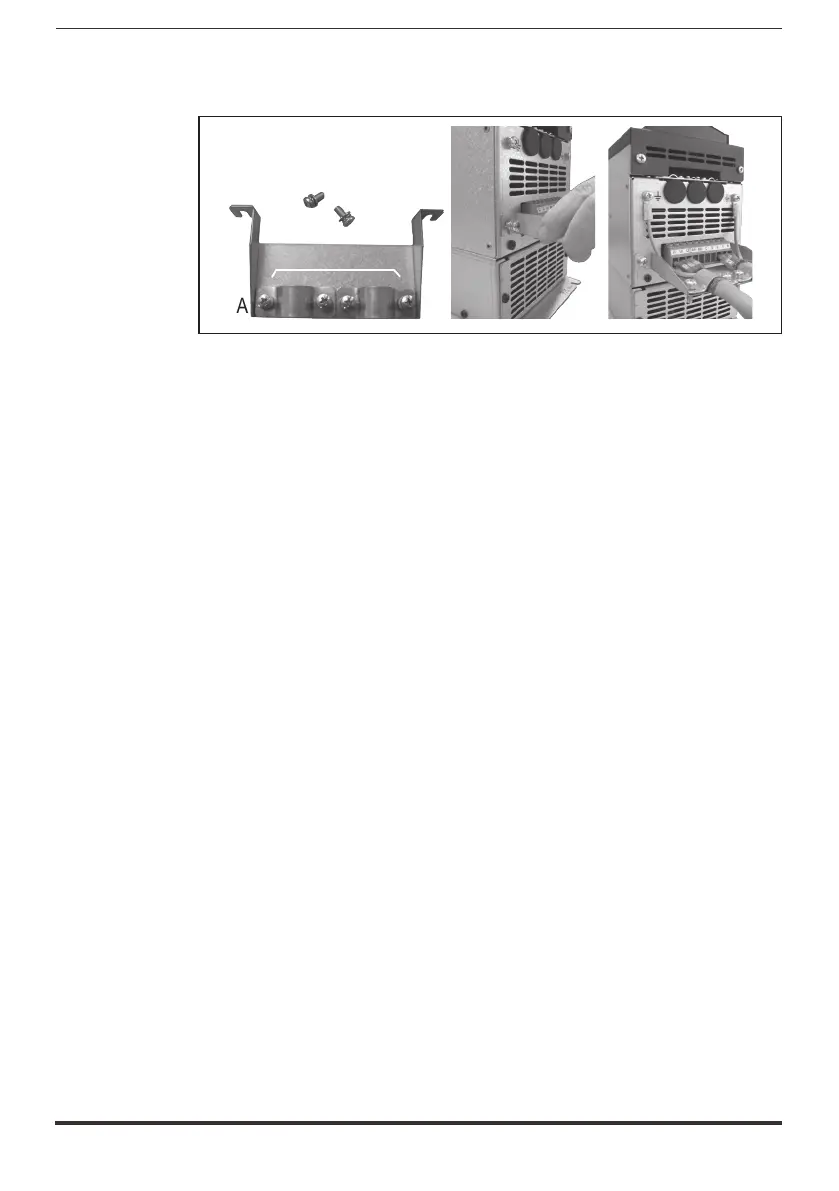

Fasten the metallic support (A), for shielding of the power section, in the two hous-

ings (B) and secure with the two screws + washer provided (C).

Fasten the shield of the cables to the omega sections (D).

• Sizes ≥ 6

For these sizes the metal support (A) is not provided. Cable shielding must be

provided by the installer.
