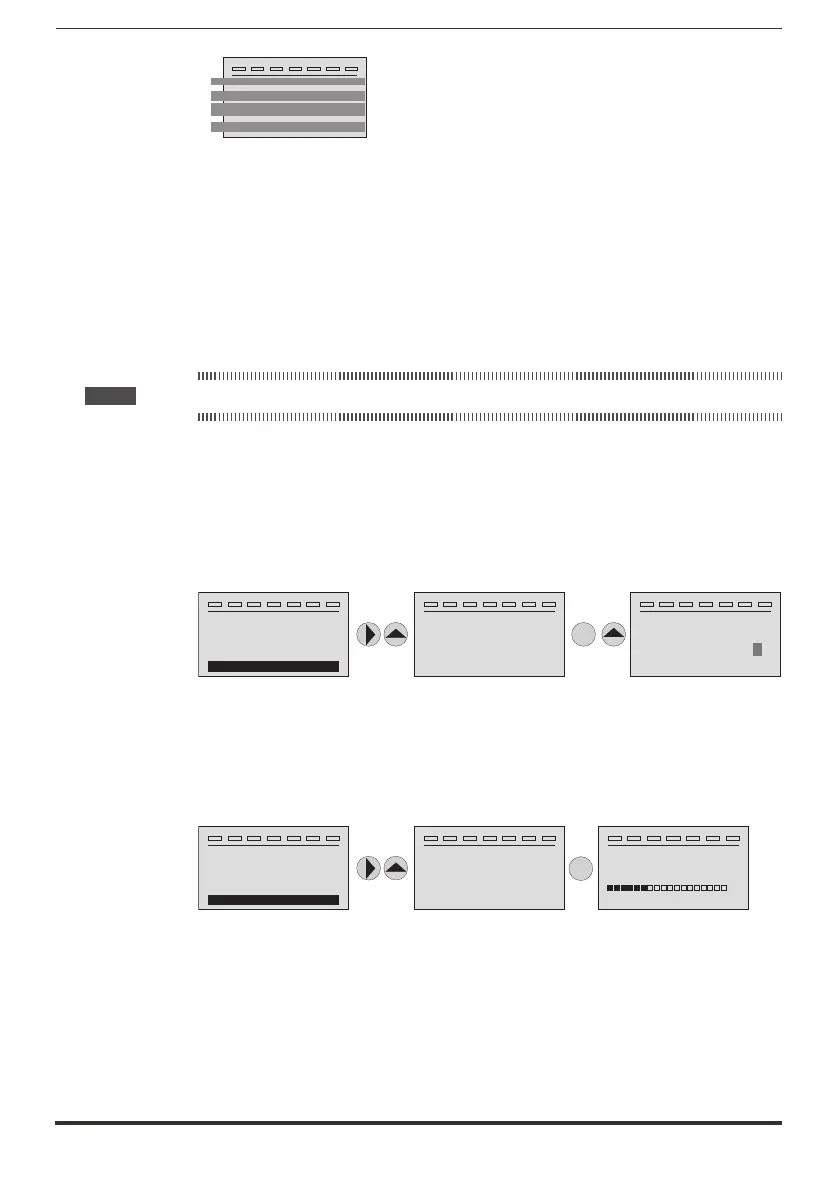

66 ADV200 WA • Quick start up guide - Specification and installation
T+ T- EN LOC ILim n:0 AL
2
Message
0 1
Load default
1
3
4
Press ESC to exit
Code: 0001H-1
1 MESSAGE : identies a message.
xx indicate show many messages are enqueued. The queue may contain a
maximum of 10 messages and the message with the highest number is the
most recent.
2 Description of the message (see chapter 8 for further information)
3 Sub-code of the message. Provides extra information in addition to the descrip-
tion.
4 “Press ESC to exit” is displayed if the message requires acknowledgment.
When a message is closed, the next message is displayed until the queue is
empty.
Note ! For further information, see chapter 8.2.
6.8 Saving and recovery of new parameter settings
Drive parameters can be saved on the keypad in 5 different memory areas.
This function is useful to obtain various sets of parameters, for safety backup or to
transfer the parameters from one drive to another.
6.8.1 Selection of the keypad memory
T+ T- EN LOC ILim n:0 AL
0 4 . 1 9
PA R : 5 9 4
Keypad memory select
Def: 1
T+ T- EN LOC ILim n:0 AL
01 MONITOR
02 DRIVE INFO
03 STARTUP WIZARD
04 DRIVE CONFIG
E
T+ T- EN LOC ILim n:0 AL
0 4 . 1 9
PA R : 5 9 4
Keypad memory select
Def: 1
1
000000002
Menu 04 DRIVE CONFIG, parameter 04.21 Keypad memory select, PAR : 594.
The keypad features 5 memory areas dedicated to saving parameters.
The memory to be used is selected using the Keypad memory select parameter.
Subsequent saving and recovery operations will be carried out on the memory
selected.
6.8.2 Saving of parameters on the keypad
T+ T- EN LOC ILim n:0 AL
0 4 . 1 7
PA R : 5 9 0
Save par to keypad
Press E to execute
E
T+ T- EN LOC ILim n:0 AL
0 4 . 1 7
PA R : 5 9 0
DRIVE --> K2006 X
T+ T- EN LOC ILim n:0 AL
01 MONITOR
02 DRIVE INFO
03 STARTUP WIZARD
04 DRIVE CONFIG
X 3
Menu 04 DRIVE CONFIG, parameter 04.19 Save par to keypad, PAR : 590.
Is used to transfer the parameters from the drive to the selected keypad memory.
To start the operation, press the E key.
During transfer, a bar is displayed which indicates progress of the operation.
Instead of the letter X, the number of the currently selected keypad memory is
displayed.
At the end of transfer, if this has been completed successfully, the “Done” caption
is displayed for a few seconds with subsequent return to the initial page.
