106 ADV200 • Functions description and parameters list

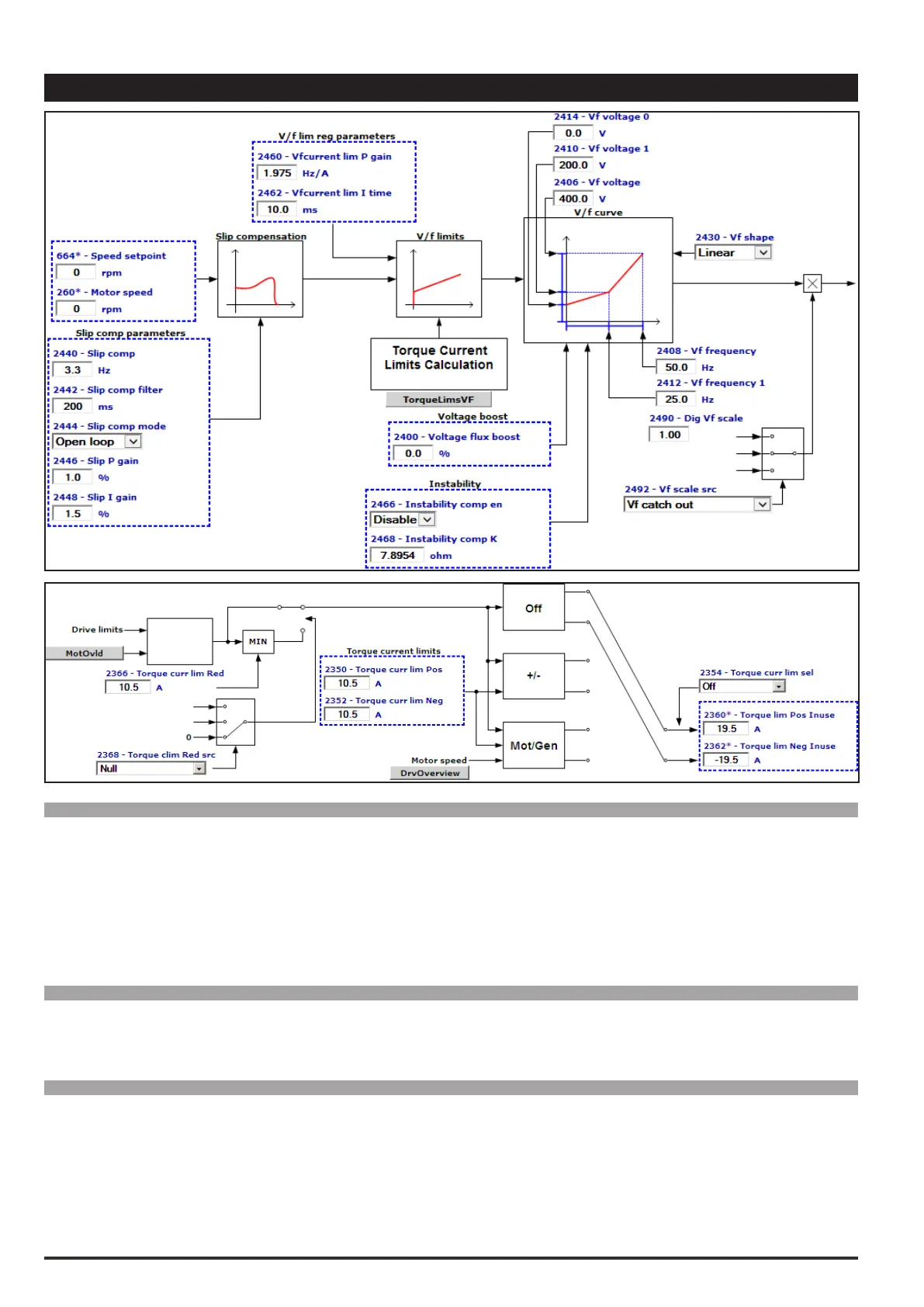

21 – FV PARAMETERS
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.1 2404 Voltage torque boost ENUM Disable 0 1 ERWZ V
Enables the automatic voltage boost. The automatic boost should be enabled in case of heavy loads or high
inertias applied to the motor shaft (for example, large fans).
The default drive setting is to pure V/f control.
0 Disable
1 Enable
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.2 2406 Vf voltage V FLOAT CALCF 10.0 690.0
ERWZS
V
Setting of the maximum voltage value to be applied at the motor terminals (usually set according to the motor data plate).
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
21.3 2408 Vf frequency Hz FLOAT CALCF 10.0 2000.0
ERWZS
V
Setting of the motor rated frequency (indicated on the motor data plate)
This is the frequency at which the drive output voltage reaches the maximum output voltage (Vf voltage) on
the motor.
