ADV200 • Functions description and parameters list 43

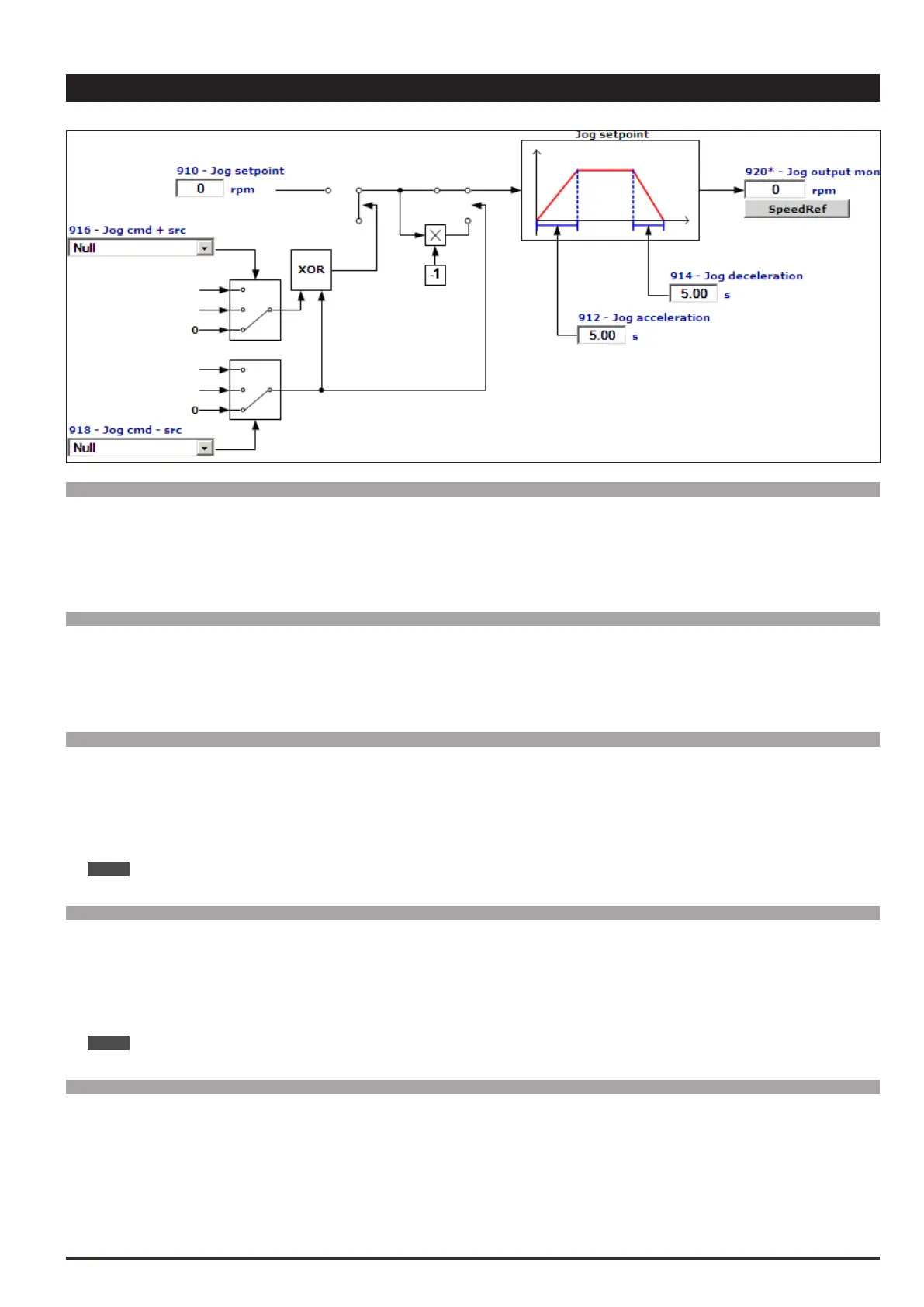

9 – JOG FUNCTION

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

9.1 910 Jog setpoint rpm INT16 0 CALCI CALCI RW FVS

The reference for Jog mode operation. This reference can also be set via an analog input. The Jog reference

is enabled when the signal used for the Jog + or Jog – command is enabled, the Run command is not present

and the drive output frequency is zero.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

9.2 912 Jog acceleration s FLOAT 5.0 0.01 1000.00 RW FVS

9.3 914 Jog deceleration s FLOAT 5.0 0.01 1000.00 RW FVS

Setting of the acceleration/deceleration ramp time (in seconds) used during Jog operation.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

9.4 916 Jog cmd + src LINK 16 6000 0 16384 RW FVS

Selection of the origin (source) of the Jog + function enabling signal. When this command is enabled it gener-

ates a Jog Mode reference with a sign matching the value entered for the Jog setpoint value parameter. The

signal to be associated with this function can be selected from the “L_DIGSEL2” selection list.

Note ! The Run command has priority over the Jog + command.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

9.5 918 Jog cmd - src LINK 16 6000 0 16384 RW FVS

Selection of the origin (source) of the Jog - function enabling signal. When this command is enabled the Jog

Mode reference sign is inverted with respect to the value entered in the Jog setpoint value parameter. The

signal to be associated with this function can be selected from the “L_DIGSEL2” selection list.

Note ! The Run command has priority over the Jog - command.

Menu PAR Description UM Type FB BIT Def Min Max Acc Mod

9.6 920 Jog output mon rpm INT16 16/32 0 0 0 ER FVS

The speed reference used by the Jog command is displayed.
