22.17 - FUNCTIONS/TEMP CONTROL

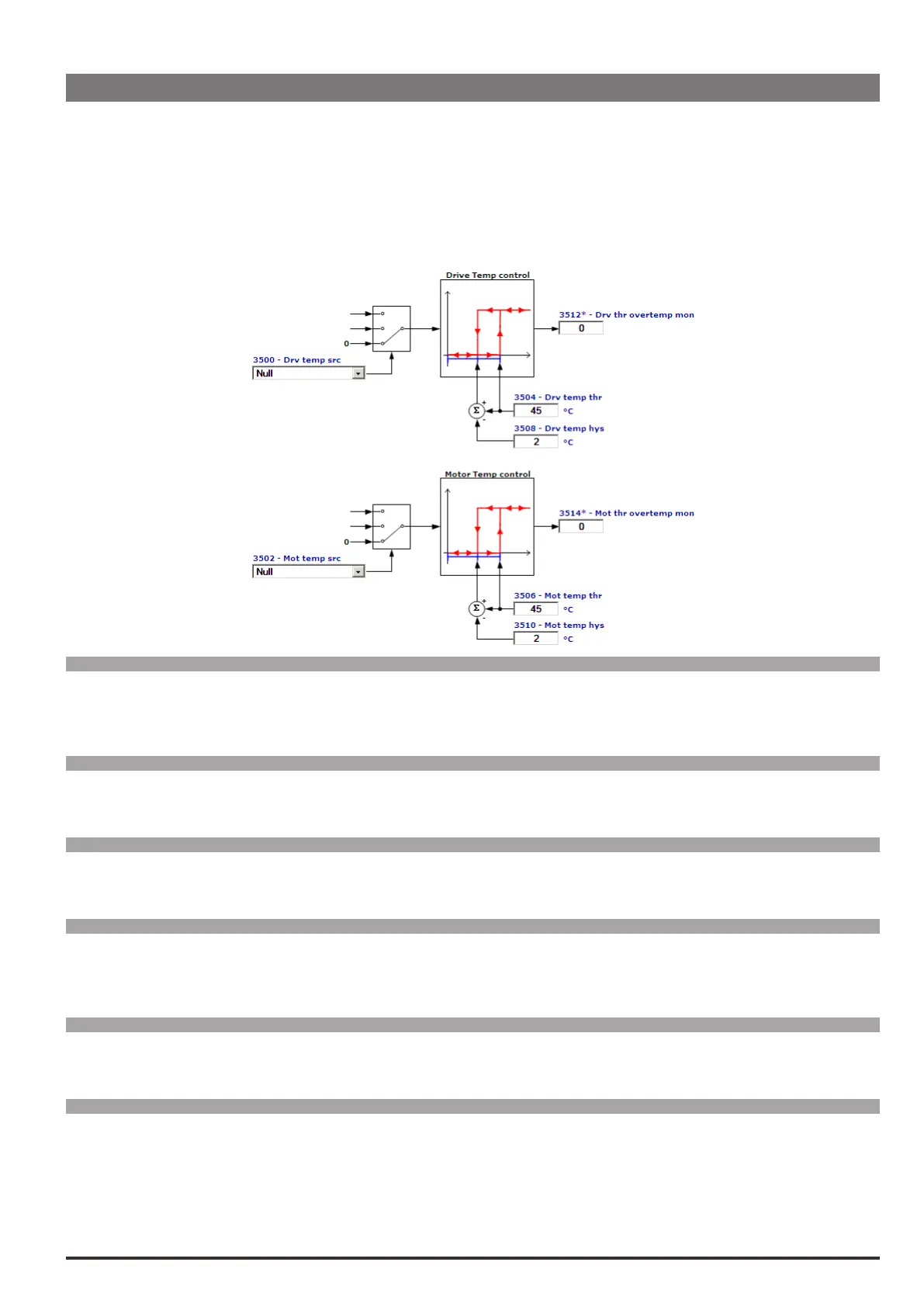

This function basically includes two comparators with hysteresis.
By managing temperature sensors such as the PTC, PT100 or KTY84, you can command (via the drive’s digital out-
puts) external solenoids to activate drive and/or motor cooling systems.
The TEMP CONTROL function works only on the basis of the temperature measured by its sensor and consequently
commands the digital output. It does not run any check of the system’s safety conditions (formation of condensation,
over-humidity). The user has to employ systems outside the inverter to check that working conditions are safe.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.17.1 3500 Drv temp src LINK 32BIT 6000 0 16384 ERW FVS
Selection of signal origin (source) for management of a temperature signal. The parameter to be assigned to
this function is selected from the “L_TEMPCTRL” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.17.2 3504 Drv temp thr degC INT32 45 1 100 ERW FVS
Setting the hysteresis comparator setpoint.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.17.3 3508 Drv temp hys degC INT32 2 0 CALCI ERW FVS
Setting of a tolerance band for the trip threshold set in PAR 3504.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.17.4 3502 Mot temp src LINK 32BIT 6000 0 16384 ERW FVS
Selection of signal origin (source) for management of a temperature signal. The parameter to be assigned to
this function is selected from the “L_TEMPCTRL” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.17.5 3506 Mot temp thr degC INT32 45 1 100 ERW FVS
Setting the hysteresis comparator setpoint.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
22.17.6 3510 Mot temp hys degC INT32 2 0 CALCI ERW FVS
Setting of a tolerance band for the trip threshold set in PAR 3506.
