gefran ADV200 User Manual

ADV200 • Functions description and parameters list 73

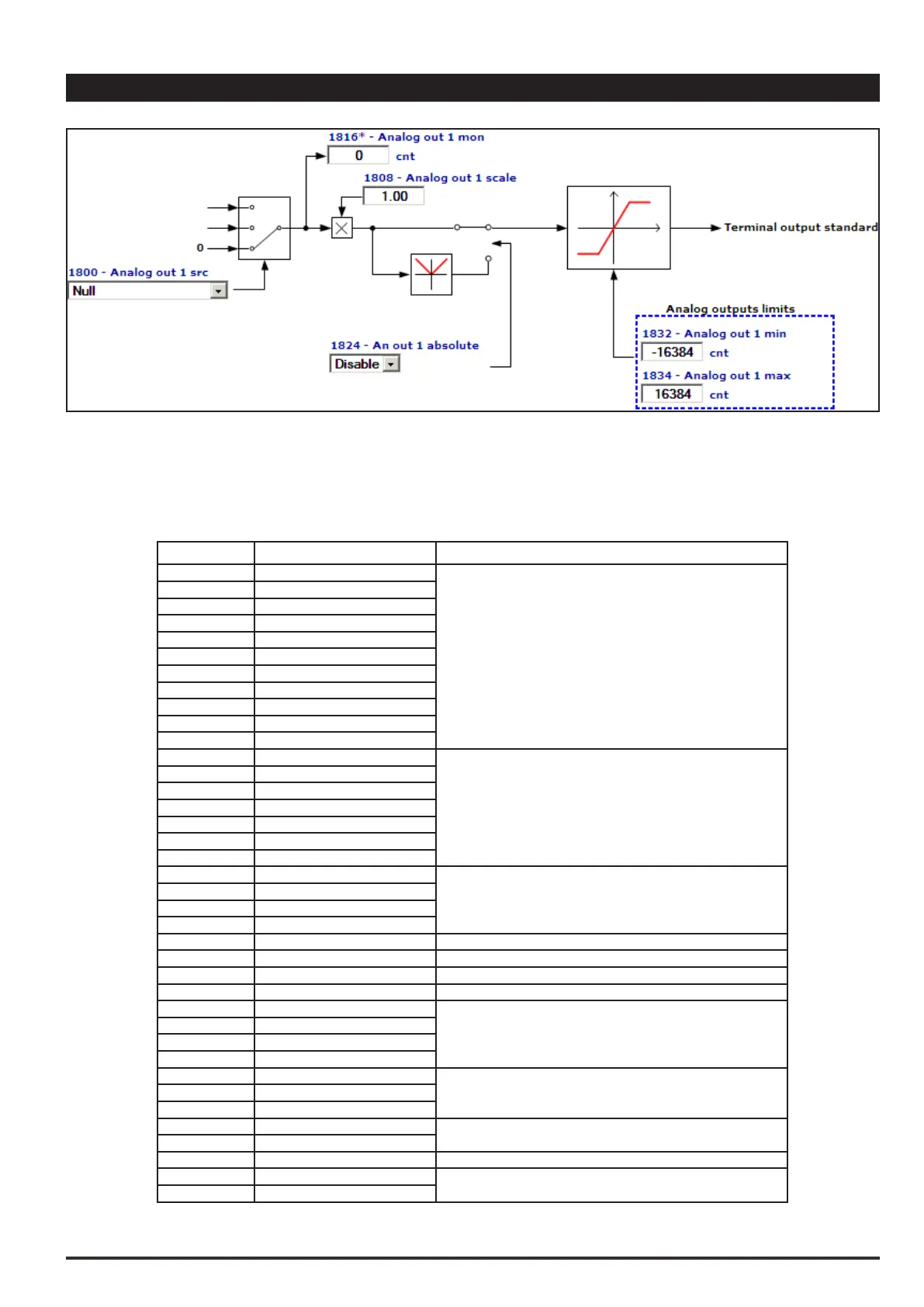

15 – ANALOG OUTPUTS
On the AVD regulation card there are two programmable analog outputs.
Analog output 1 supplies a two-pole +/-10VDC voltage signal, while analog output 2 can be programmed to obtain a
0-20mA or 4-20mA output signal in current or a signal in two-pole +/-10VDC voltage, depending on the parameter assigned.
Table: value of the signal of the analog outputs according to the measurement used
PAR Description Full scale output
626 Ramp ref out mon
10V = Full scale speed (Par 680)
628 Ramp setpoint
760 Ramp out mon
664 Speed setpoint
260 Motor speed
262 Motor speed nofilter
2150 Encoder 1 speed
852 Multi ref out mon
870 Mpot setpoint
894 Mpot output mon
920 Jog output mon
250 Output current
10V = 200% CT drive rated current (available on Quick startup
manual, this value is defined @400Vac, default switching
frequency and 40°C)
280 Torque current ref
282 Magnet current ref
284 Torque current
286 Magnet current
2360 Torque lim Pos Inuse
2362 Torque lim Neg Inuse
2386 Torque ref
10V = 200% Nominal motor torque
2388 Torque ref nofilter
3070 Droop out mon
3104 Inertia comp mon
252 Output voltage 10V = 200% Mains voltage (Par 560)
254 Output frequency 10V = 1000Hz
270 DC link voltage 10V = 7000V
3006 Speed ratio out mon 10V = 100%
1500 Analog input 1 mon
10V = 10V Analog input
1550 Analog input 2 mon
1600 Analog input 1X mon
1650 Analog input 2X mon
368 Drive overload accum
5V = 100% Accumulator3212 Motor overload accum
3260 Bres overload accum
2232 Spd reg P gain Inuse
10V = 400%
2234 Spd reg I gain Inuse
3446 Powerloss nextratio 10V = 50%
4024 … 4174 Fieldbus M->SX mon
10V = 16384 * 2^16
3700 … 3730 Pad X
