166 ADV200 • Functions description and parameters list
using decimal digits.
N.B.: The drive does not check that the multiplied parameter expressed in bits ts in a 16-bit integer. You must
make sure that the multiplier is compatible with the maximum value of the exchanged parameter and that it
does not exceed the maximum size of 32768.
Example: Fieldbus S->Mx mul = 10, S->M1 eldbus par = Motor speed, Sys S->M1 eldbus = Eu.
If the motor is running at 100 rpm, the PLC reads the value 100 * 10 = 1000 on the rst word that is exchanged.
23.5 – COMMUNICATION/WORD COMP
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
23.5.1 4400 Word bit0 src LINK 16 6000 0 16384 ERW FVS
23.5.2 4402 Word bit1 src LINK 16 6000 0 16384 ERW FVS
23.5.3 4404 Word bit2 src LINK 16 6000 0 16384 ERW FVS
23.5.4 4406 Word bit3 src LINK 16 6000 0 16384 ERW FVS
23.5.5 4408 Word bit4 src LINK 16 6000 0 16384 ERW FVS
23.5.6 4410 Word bit5 src LINK 16 6000 0 16384 ERW FVS
23.5.7 4412 Word bit6 src LINK 16 6000 0 16384 ERW FVS
23.5.8 4414 Word bit7 src LINK 16 6000 0 16384 ERW FVS
23.5.9 4416 Word bit8 src LINK 16 6000 0 16384 ERW FVS
23.5.10 4418 Word bit9 src LINK 16 6000 0 16384 ERW FVS
23.5.11 4420 Word bit10 src LINK 16 6000 0 16384 ERW FVS
23.5.12 4422 Word bit11 src LINK 16 6000 0 16384 ERW FVS
23.5.13 4424 Word bit12 src LINK 16 6000 0 16384 ERW FVS
23.5.14 4426 Word bit13 src LINK 16 6000 0 16384 ERW FVS
23.5.15 4428 Word bit14 src LINK 16 6000 0 16384 ERW FVS
23.5.16 4430 Word bit15 src LINK 16 6000 0 16384 ERW FVS

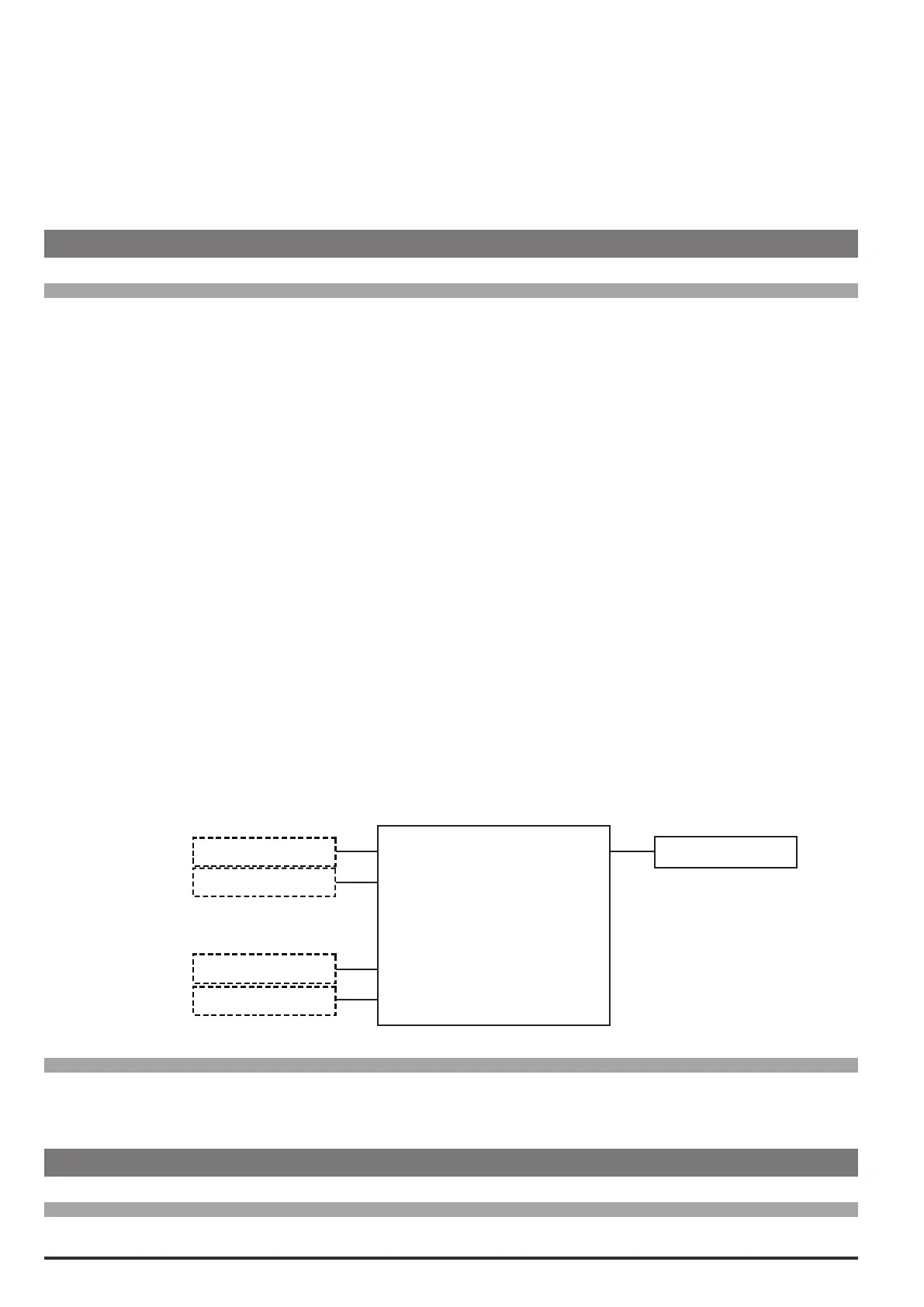

Selection of the origin (source) of the signal to be used for coding in Word comp. This function allows the user
to compose a single word composed of 16 signals, each of which can be selected from among those listed in
the “L_DIGSEL1” selection list.
The values of the sectioned sizes are converted into a single word.
Word bit0 src
Word bit1 src
Word bit14 src
Word bit15 src
Word comp mon
WORD_0
BIT_0
BIT_1
BIT_14
BIT_15
BIT_1
.........................
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
23.5.17 4432 Word comp mon UINT32 16 0 0 0 ER FVS
The hexadecimal value of the Word comp output is displayed.
23.6 – COMMUNICATION/WORD DECOMP
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
23.6.1 4450 Dig word decomp UINT32 16 0 0 0 ERW FVS
