ADV200 • Functions description and parameters list 45
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.5 950 Speed threshold 1 rpm INT32 0 CALCI CALCI RW FVS
Setting of speed threshold 1 (upper). When the threshold is exceeded the Speed threshold signal is disabled,
with a delay that can be set in Speed threshold dly.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.6 952 Speed threshold 2 rpm INT32 0 CALCI CALCI RW FVS
Setting of speed threshold 2 (lower). When the threshold is exceeded the Speed threshold signal is disabled,
with a delay that can be set in Speed threshold dly.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.7 954 Speed threshold dly ms UINT16 0 0 50000 RW FVS
Setting of the delay after which the transition from 0 c1 is activated. The transition from 0 c1 occurs when the
speed is within the set limits. The Speed threshold signal transition from 1 c 0 is always immediate.
If the motor speed is between Speed threshold 1 and Speed threshold 2, the Speed threshold signal is ac-
tive. If Speed threshold 1 < Speed threshold 2 the Speed threshold signal is not signicant.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.8 960 Set speed ref src LINK 16/32 628 0 16384 ERW FVS
Selection of the origin (source) of the signal used as speed reference and on which the speed reached control
is performed (for control with ramp, use Ramp setpoint, for control without ramp, use Speed setpoint). The
signal that can be used as the speed reference can be selected from among those listed in the “L_CMP” selec-
tion list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.9 962 Set speed error rpm INT16 100 0 CALCI RW FVS
Setting of the bandwidth of the tolerance within which, even if the speed is not equal to the reference, the two
values are considered to coincide and the Set speed signal is enabled.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.10 964 Set speed delay ms UINT16 0 0 50000 RW FVS

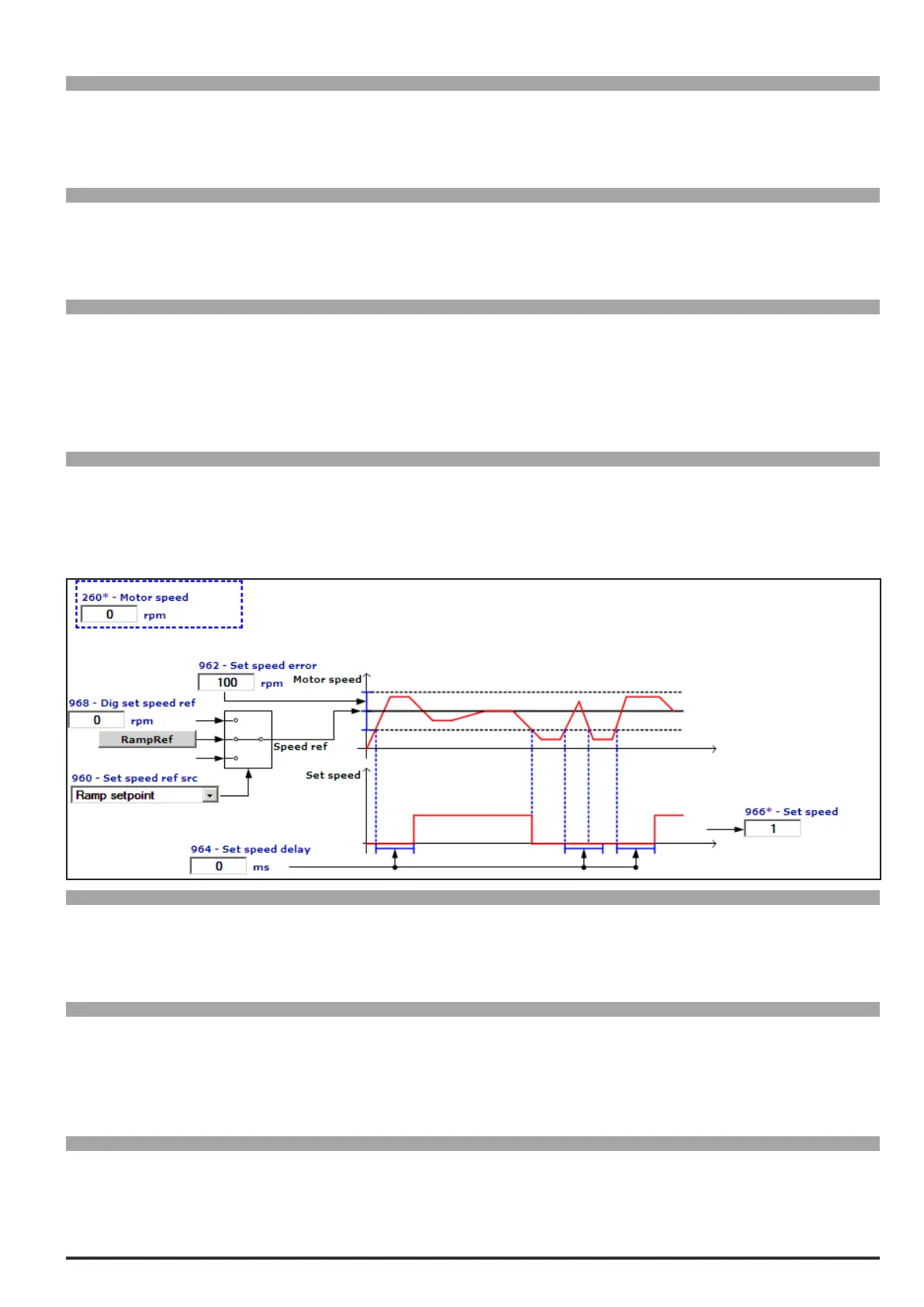

Setting of a delay in ms before the signal (Set speed programmed on a digital output), if the speed is within a
tolerance band dened by the Set speed error parameter, after which the transition from 0 c1 is enabled.
The transition of the Set Speed signal from 0 c1 is always immediate.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
10.11 968 Dig set speed ref rpm UINT16 16/32BIT 0 CALCI CALCI RW FVS
Setting of the threshold used as the speed reference: this parameter is used to set a xed threshold regardless
of the speed reference.
