GREE Multi Variable Air Conditioners Indoor Unit
96

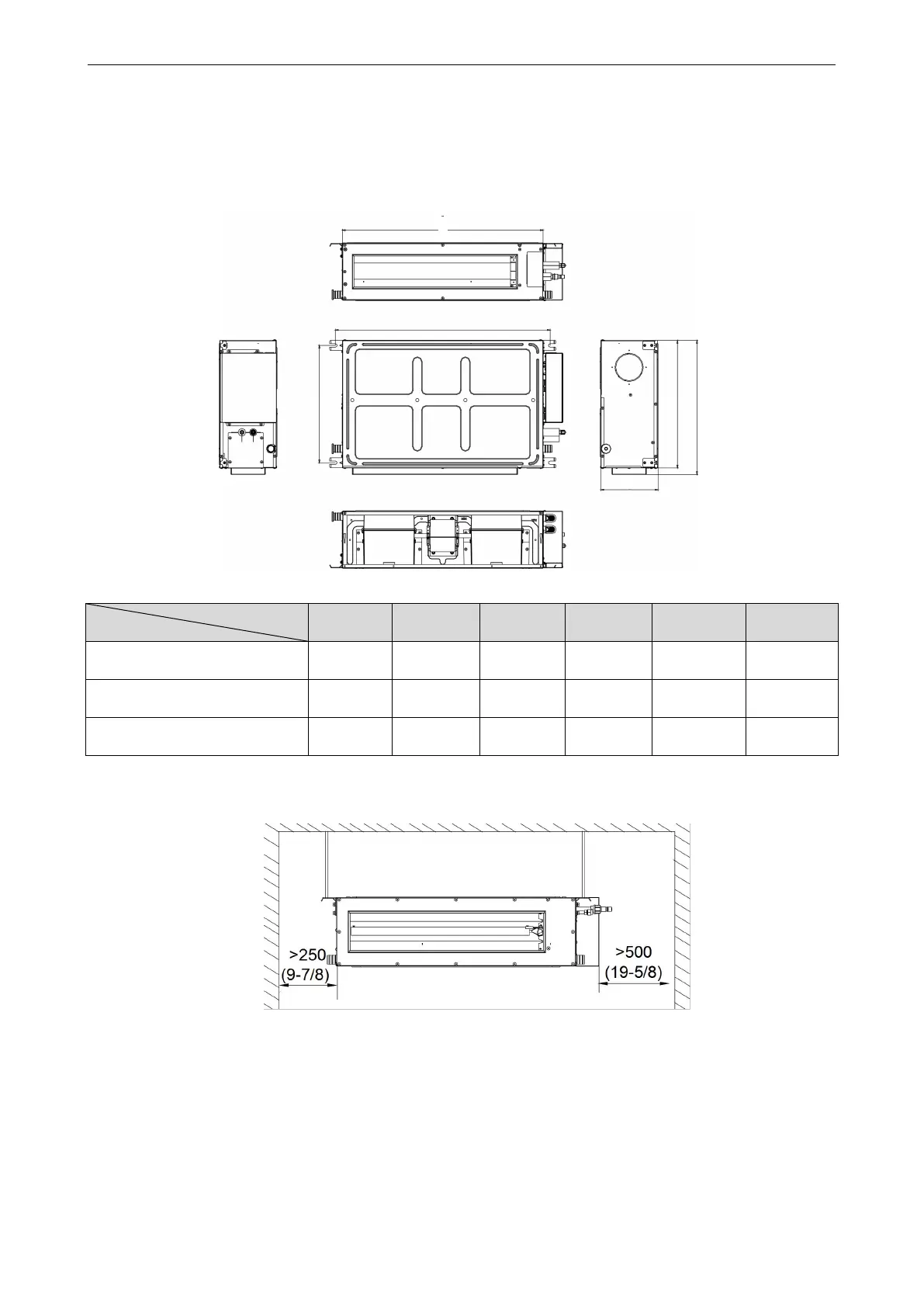

3.2 Installation of Slim Duct Type Indoor Unit
3.2.1 Outline and Installation Dimension
The following diagram is applicable for units with the cooling capacity ranging from 06kBtu/h to
24kBtu/h.
C
B
E
F
A
D
The following table lists the detailed dimensions.
Item
Model
A
B
C
D
E
F
GMV-ND06~12PLS/B-T(U)
760
(30)
415
(16-3/8)
710
(28)
200
(17-7/8)
462
(18-3/16)
486
(19-2/16)
GMV-ND14~18PLS/B-T(U)
1060
(41-3/4)
415
(16-3/8)
1010
(39-3/4)
200
(17-7/8)
462
(18-3/16)
486
(19-2/16)
GMV-ND24PLS/B-T(U)
1360
(53-1/2)
415
(16-3/8)
1310
(51-3/4)
200
(17-7/8)
462
(18-3/16)
486
(19-2/16)
3.2.2 Installation Space
Unit: mm(inch)
3.2.3 Installation Notice
(1) Installation dimension (refer to the outline dimension in the figure).
(2) Installation foundation.
(3) Make sure the top hanging rod, ceiling and building structure have sufficient strength to
withstand the weight of unit.
(4) Installation site and environment.
1) Keep the unit from insolation and rainch
