Motor and fan
Precondition: The power supply has been disconnected.
Step
Diagram
Operation Procedure
(5) Remove the
motor.

Remove the motor from the
support and remove the
centrifugal fan from the motor
axle. Then, remove the motor.

For motors that are
accompanied with supports,
the supports need removing as
well.
(6) Install a new
motor.

Assemble units based on the
reverse order of this procedure
and power on the units for test.
4.12 Air Handler type Indoor Unit
Motor and fan
Precondition: The power supply has been disconnected.
Procedures
Diagrams
Operating Instructions

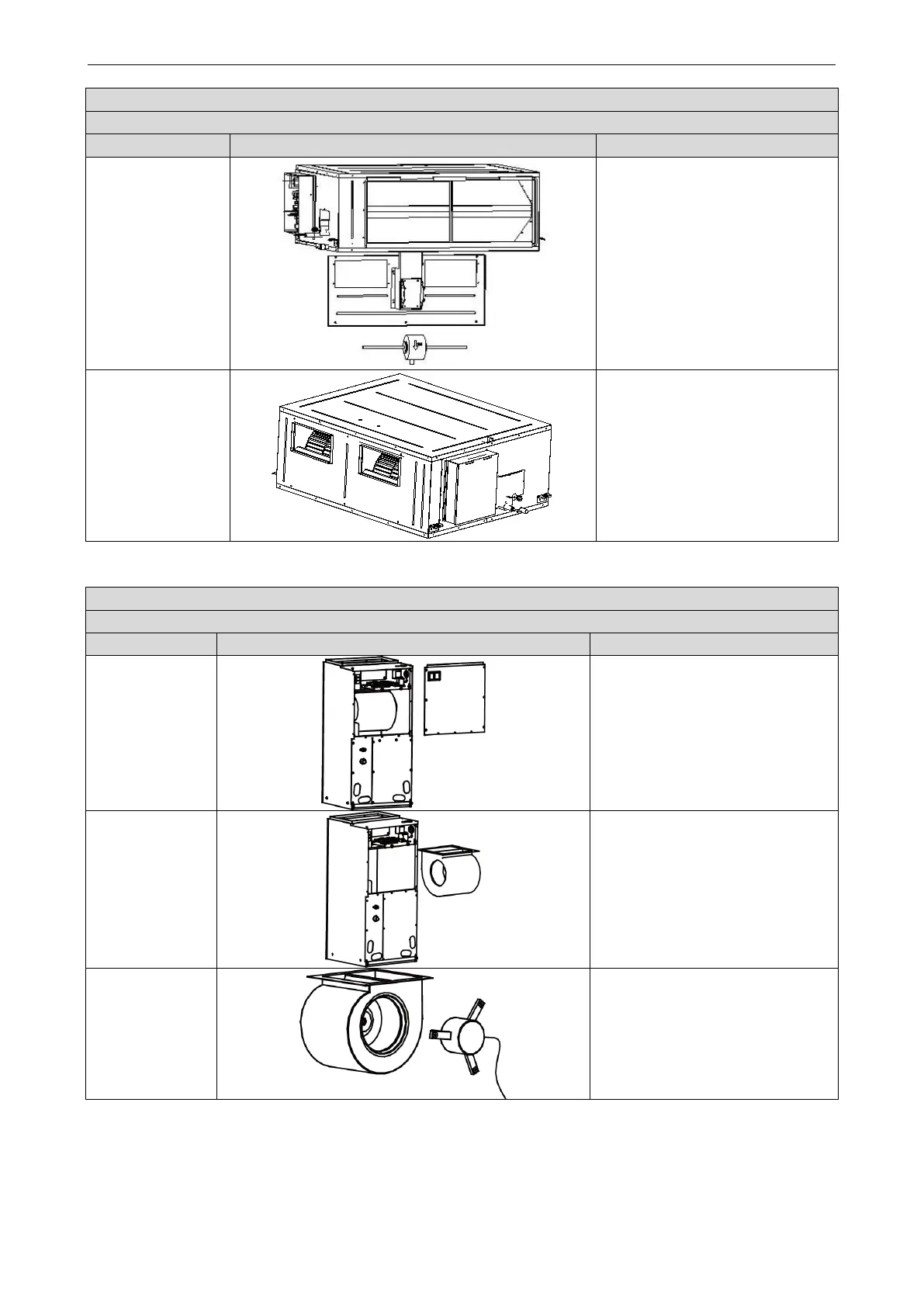

(1) Remove
the upper
panel.

Loosen screws round the upper
panel with a screwdriver.

Remove the upper panel from
unit.
(2) Remove
the fan.

Disconnect the wires of the fan
from the wiring terminal and
draw them out.

Loosen screws located at the
front of the fan with a
screwdriver.

Remove the fan from the unit.
(3) Remove
the motor.

Loosen screws fixing the motor
and fan blades.

Loosen screw bolts fixing the
bracket.

Remove the motor rightward
from the fan.
