5.4 High Static Pressure Duct Type Indoor Unit

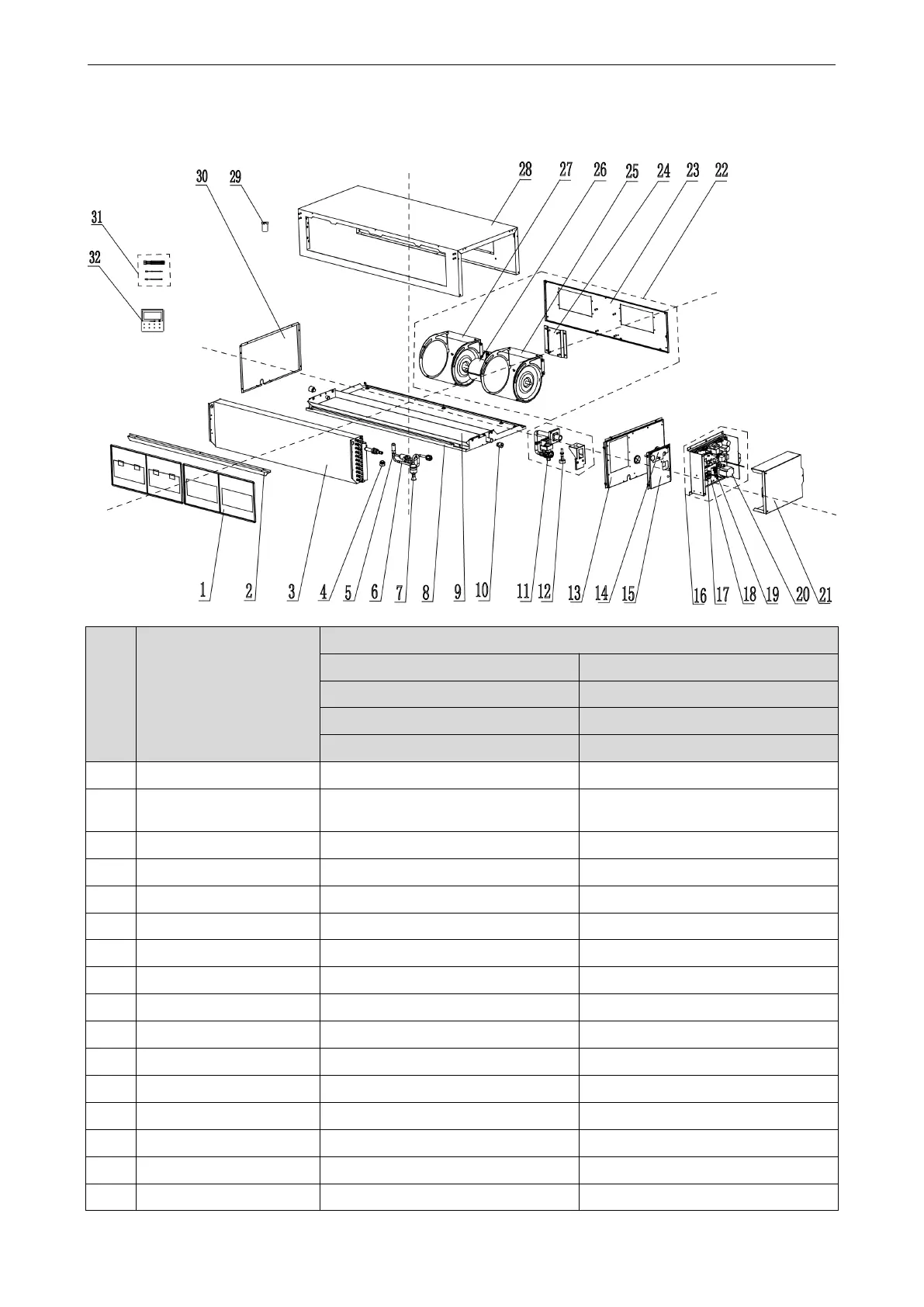

Exploded View of GMV-ND18PHS/A-T(U) / GMV-ND24PHS/A-T(U):
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND18PHS/A-T(U)
CM810N0140
GMV-ND24PHS/A-T(U)
CM810N0150
Part code
Quantity
1
Filter Sub-Assy
11125303
2
2
Guide groove of the filter
screen
02285301
1
3
Evaporator Assy
01024100090
1
4
Electric Expand Valve Fitting
4304413215
1
5
Electronic Expansion Valve
07334466
1
6
Strainer
0741410000601
1
7
Filter
07415210
1
8
Lower Cover Plate Sub-Assy
01265304
1
9
Water Tray Assy
01285317
1
10
Choke Plug of Drain Pipe
76712455
2
11
Water Pump
4313822001
1
12
Water Level Switch
450127011
1
13
Right Side Plate
01314100063
1
14
Seal plate'
01494100008
1
15
Cover Plate
01264100036
1
16
Electric Box Assy
01394100501
1
