GREE Multi Variable Air Conditioners Indoor Unit
53

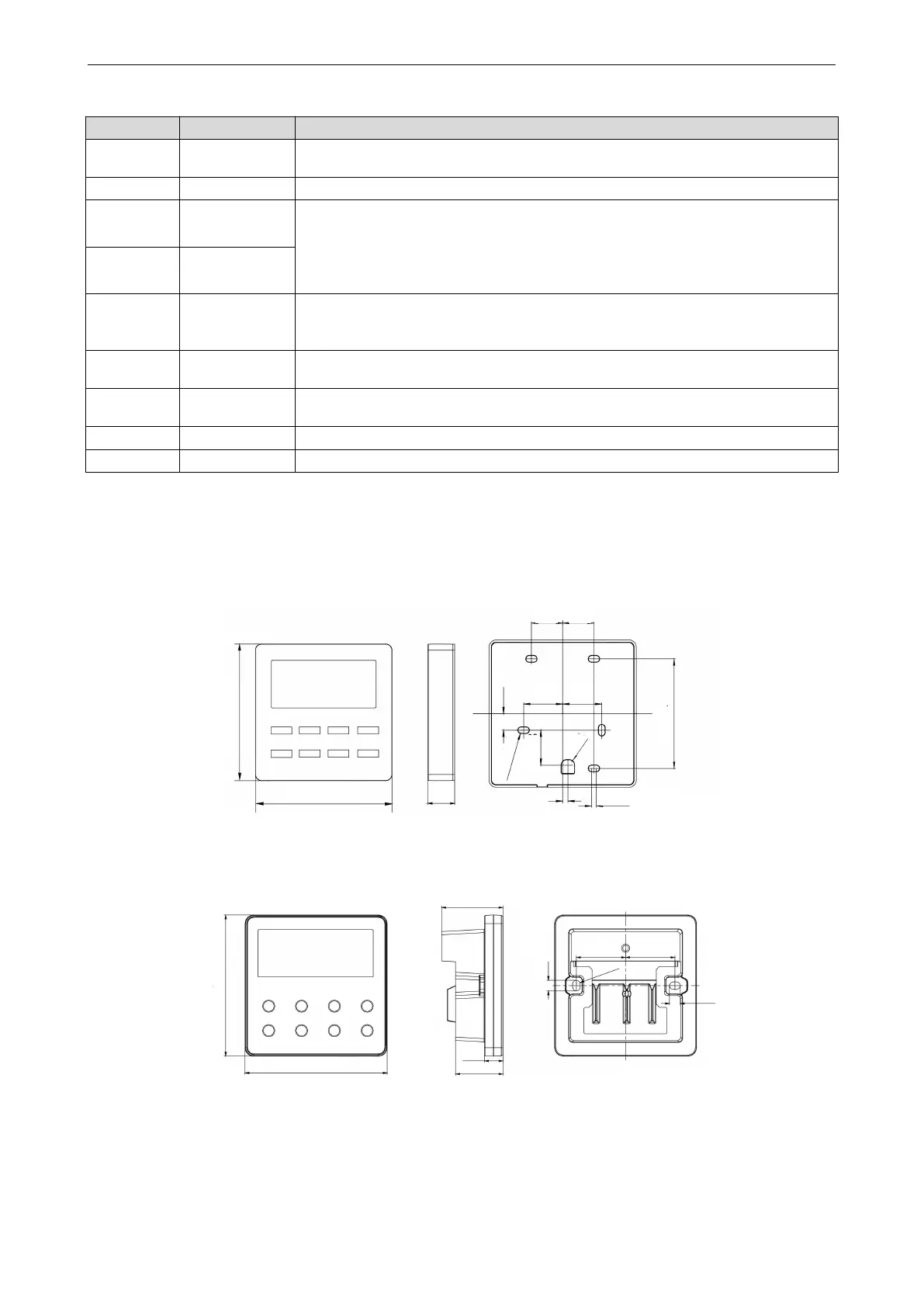

Table Function instruction of buttons
Set vertical air swing
Select and cancel functions
Set operating temperature of indoor unit
Set Timer
Switch Quiet mode, Air grade, Clean grade, set upper and lower temperature limit
under Save mode
Set and inquiry parameter
Switch Auto, Cooling, Dry, Fan, Heating, Floor Heating, 3D Heating and Space
Heating modes for indoor unit. (NOTICE! The Floor Heating, 3D Heating and Space
Heating function icon will show up when the unit has those functions)
Switch among Air, Quiet, Light, Health, Absence, Save, Clean, E-heater and X-fan
functions
Switch among auto, low speed, low-medium speed, medium speed, medium-high
speed, high speed and turbo status
Simultaneously press “▲” and “▼” for 5s to enter or cancel the Child Lock function
2.2 Installation and Removal
2.2.1 Installation Dimensions
Unit: mm(inch)
112(4-7/16)
12.7(1/2)
8.4(3-5/16)
10-R2.4(1/8)
2-R4(3/16)
26.8(1-1/16)
112(4-7/16)
22(7/8)
24
(15/16)
30
(1-3/16)
30
(1-3/16)
24
(15/16)
4(3/16)
5-3.5(1/8)
Fig.2.2.1 Installation dimensions for XK46
Unit:mm(inch)
86(3-3/8)
86(3-3/8)
6.6(1/4)
6.6(1/4)
38(1-1/2)
12.3(1/2)
29.5(1-3/16)
30
(1-3/16)
30
(1-3/16)
2-R3(1/16)
Fig.2.2.2 Dimension of wired controller XK79
