Gree GMV-ND07PLS/A-T(U) User Manual

GREE Multi Variable Air Conditioners Indoor Unit
209
No.
Name of part
For the following unit
For the following unit
Unit
Product Code
Unit
Product Code
GMV-ND18TS/A-T(U)
CM500N0920
GMV-ND24TS/A-T(U)
CM500N0930
Part code
Quantity
Part code
Quantity
11
Terminal Board
4201800002601
1
4201800002601
1
12
Main Board
30226000029
1
30226000029
1
13
Terminal Board
4201115402
1
4201115402
1
14
Electronic Expansion Valve
07334494
1
07334494
1
15
Strainer
0741410000601
2
0741410000601
2
16
Evaporator Assy
0102410009402
1
01024100093
1
17
Water Tray Sub-Assy
01284100137P
1
01284100137P
1
18
Propeller Housing Sub-assy
22202030
3
22202030
3
22202029
3
22202029
3
19
Brushless DC Motor
15704100003
1
15704100003
1
20
Joint Slack
73018731
1
73018731
1
21
Left Side Plate Sub-Assy
01314100104
1
01314100104
1
Above data is subject to change without notice, please refer the SP in global service website.
5.6 Floor Ceiling Type Indoor Unit

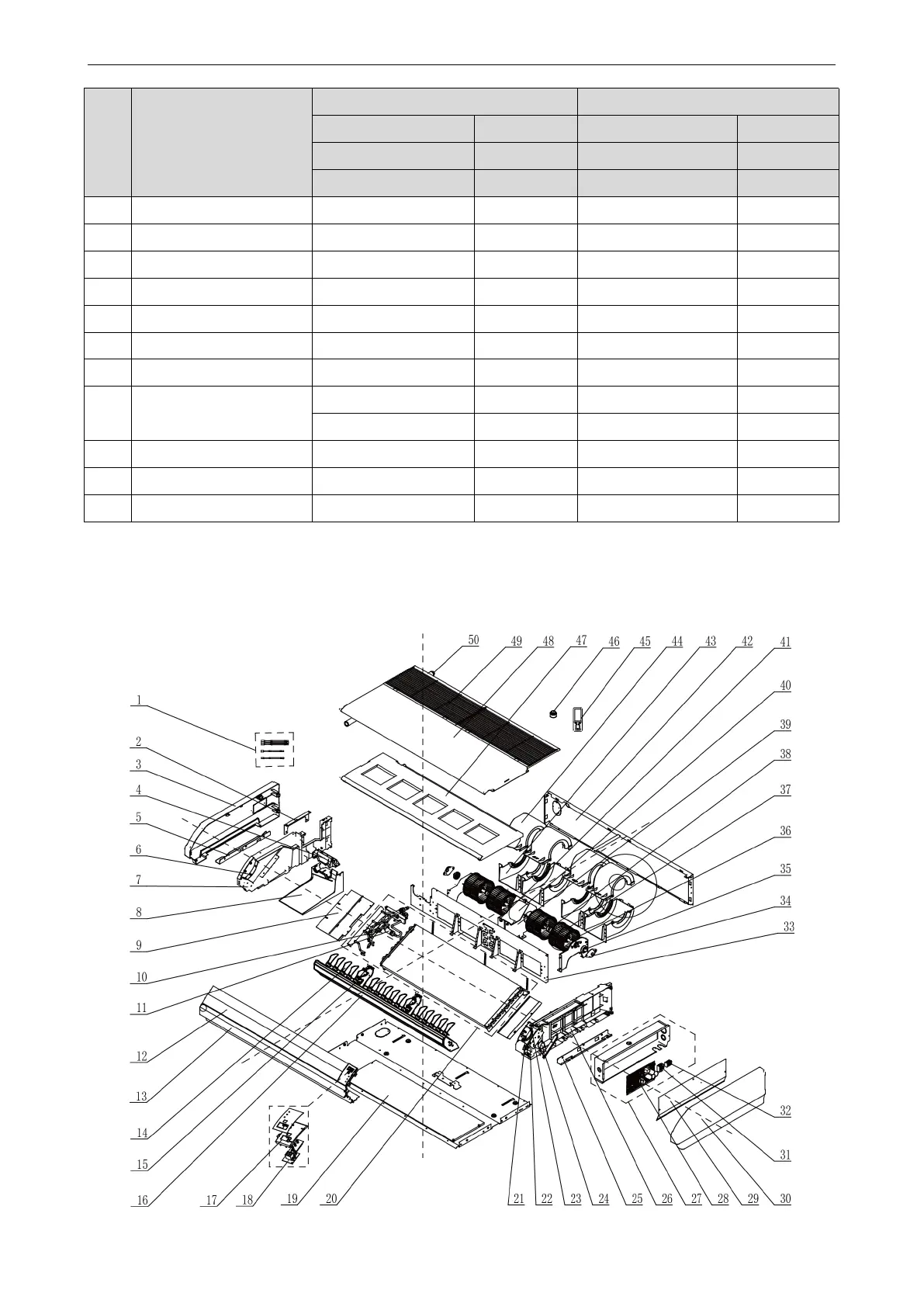

Exploded View of GMV-ND09ZD/A-T(U) / GMV-ND12ZD/A-T(U) / GMV-ND18ZD/A-T(U):
