3.15 Installation of Low Static Pressure Duct Type Indoor Unit

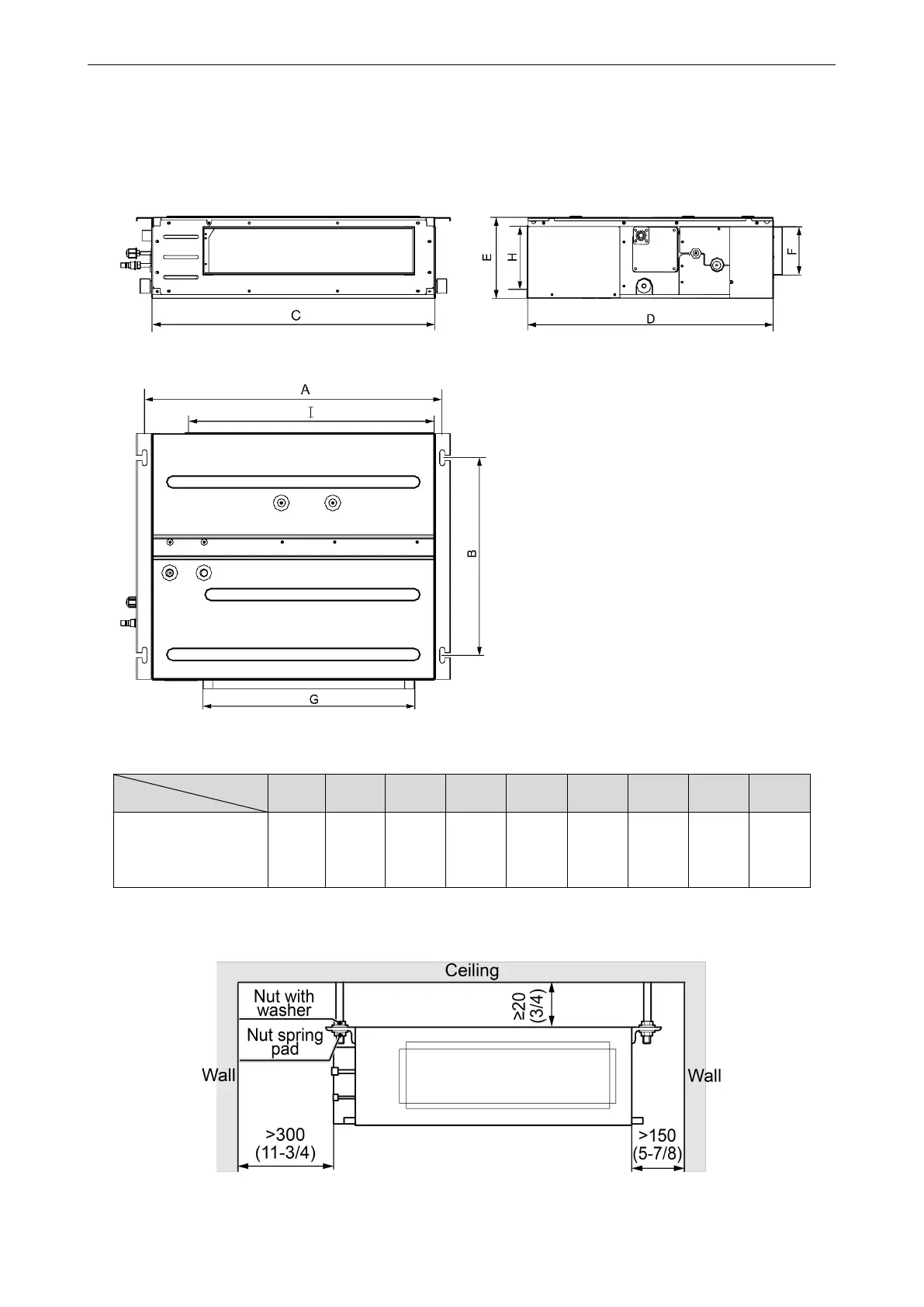

3.15.1 Outline and Installation Dimension
The following diagram is applicable for units with the cooling capacity ranging from 30kBtu/h to
48kBtu/h.
The following table lists the detailed dimensions.
Unit: mm(inch)
Item
Model
A
B
C
D
E
F
G
H
I
GMV-ND30PLS/C-T(U)
GMV-ND36PLS/C-T(U)
GMV-ND42PLS/C-T(U)
GMV-ND48PLS/C-T(U)
1379
(54-5/16)
565
(22-1/4)
1340
(52-3/4)
655
(25-13/16)
260
(10-1/4)
207
(8-1/8)
1153
(45-3/8)
220
(8-11/16)
1188
(46-3/4)
3.15.2 Outline and Installation Dimension
Unit: mm(inch)
