GREE Multi Variable Air Conditioners Indoor Unit
181
volute
tongue
back to
position.

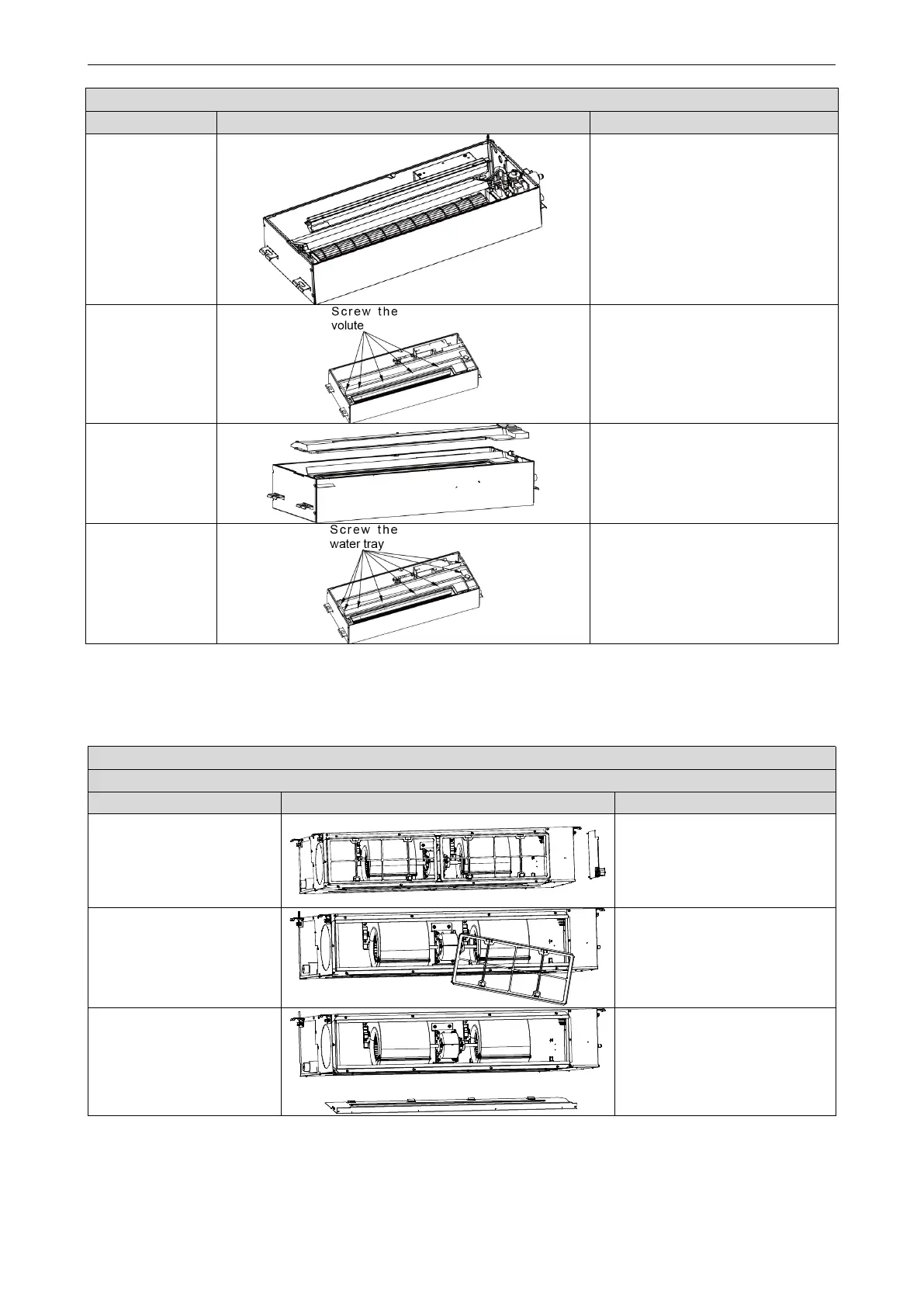

Put the volute tongue back to
position.
Use a screwdriver to screw the volute
tongue.
Use a screwdriver to screw the water
tray.
4.14 Low Static Pressure Duct Type Indoor Unit
NOTICE! The following steps are specific for GMV-ND30PLS/C-T(U) ~ GMV-ND48PLS/C-T(U) units,
the assembly and disassembly procedure is similar except the numbers of centrifugal fans and motors.
Precondition: The power supply has been disconnected.
1. Remove the line
connecting to the motor.
●Use a screwdriver to unscrew
the electric box cover.
●Remove from the master board
the line connecting to the motor
and remove the tie.
●Remove the filter from the air
return frame.
3. Remove the air return
cover plate.
●Use a screwdriver to unscrew
the air return cover plate.
