Gree GMV-ND07PLS/A-T(U) User Manual

GREE Multi Variable Air Conditioners Indoor Unit
104
the chassis. Please connect the power connection cord with the breaker. If the power cord is
not long enough, please prolong it with terminal block.
(6) Reinstall the wiring cover on the original place and tighten the bolt;
(7) Recover the surface panel.
3.5.5 Selection of Air Switch
Mode
Power Supply Specification
Circuit Breaker Capacity/A
GMV-ND07C/A-T(U)
208-230V~60Hz
6
GMV-ND09C/A-T(U)
208-230V~60Hz
6
GMV-ND12C/A-T(U)
208-230V~60Hz
6
GMV-ND18C/A-T(U)
208-230V~60Hz
6
3.6 Installation of High Static Pressure Duct Type Indoor Unit

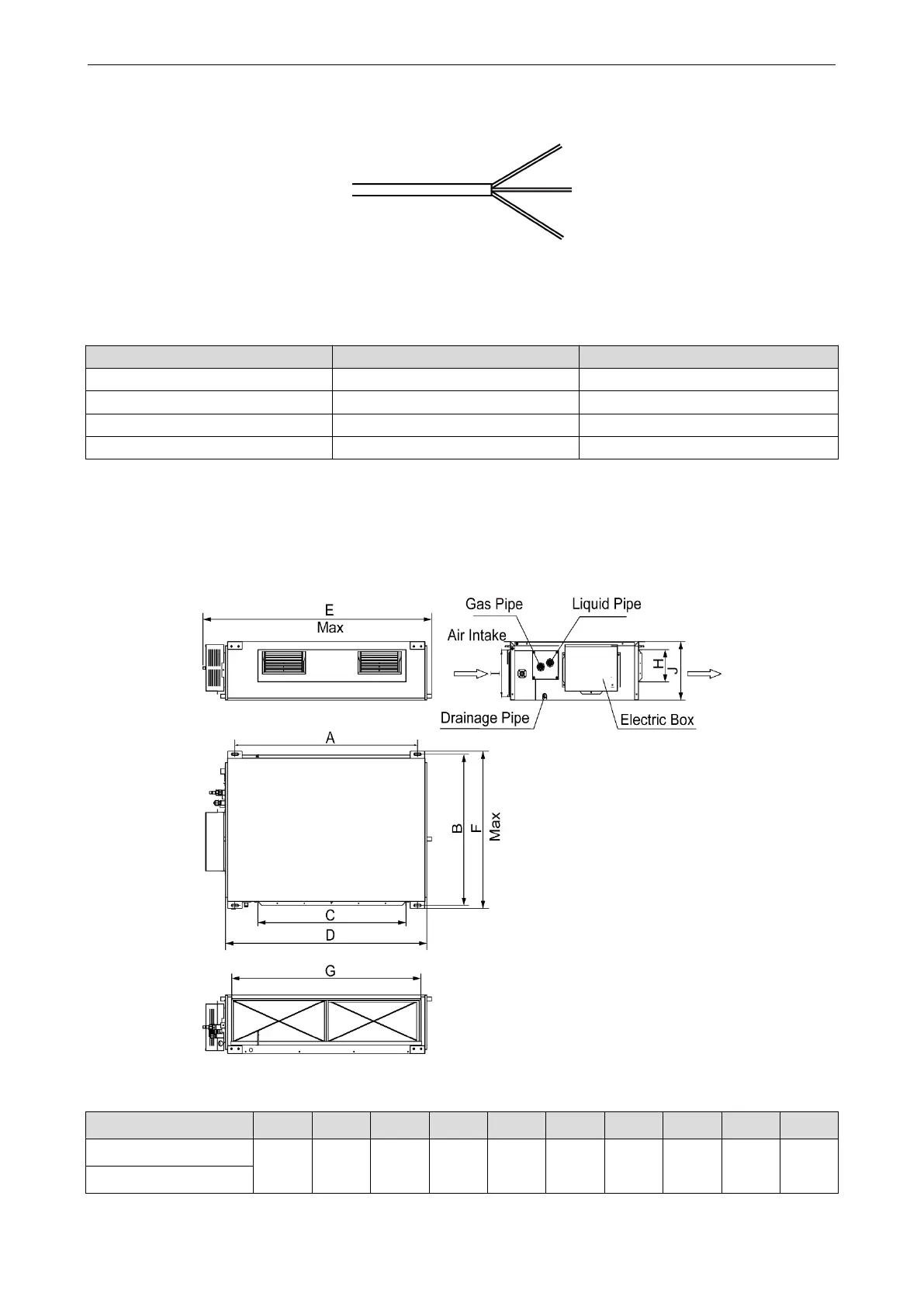

3.6.1 Outline and Installation Dimension
The following diagram is applicable for units with the cooling capacity ranging from 18 kBtu/h to 48
kBtu/h.
Below are dimensions of A, B, C, etc. for different models:
Unit: mm (inch)
Model
A
B
C
D
E
F
G
H
I
J
GMV-ND18PHS/A-T(U)
1101
(43-3/8)
517
(20-3/8)
820
(32-1/4)
1159
(45-5/8)
1271
(50)
558
(22)
1002
(39-1/2)
160
(6-1/4)
235
(9-1/4)
268
(10-1/2)
GMV-ND24PHS/A-T(U)
