Make sure all the installation work completed before energizing.
3.8.4 Selection of Air Switch and Power Cord
Model
Power Cord Size
Air Switch
apacity
(A)
Minimum Sectional
Area of Ground Wire
(mm
2
/AWG)
Minimum Sectional
Area of Power Cord
(mm
2
/AWG)
GMV-ND09ZD/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND12ZD/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND18ZD/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND24ZD/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND30ZD/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND36ZD/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND42ZD/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND48ZD/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18

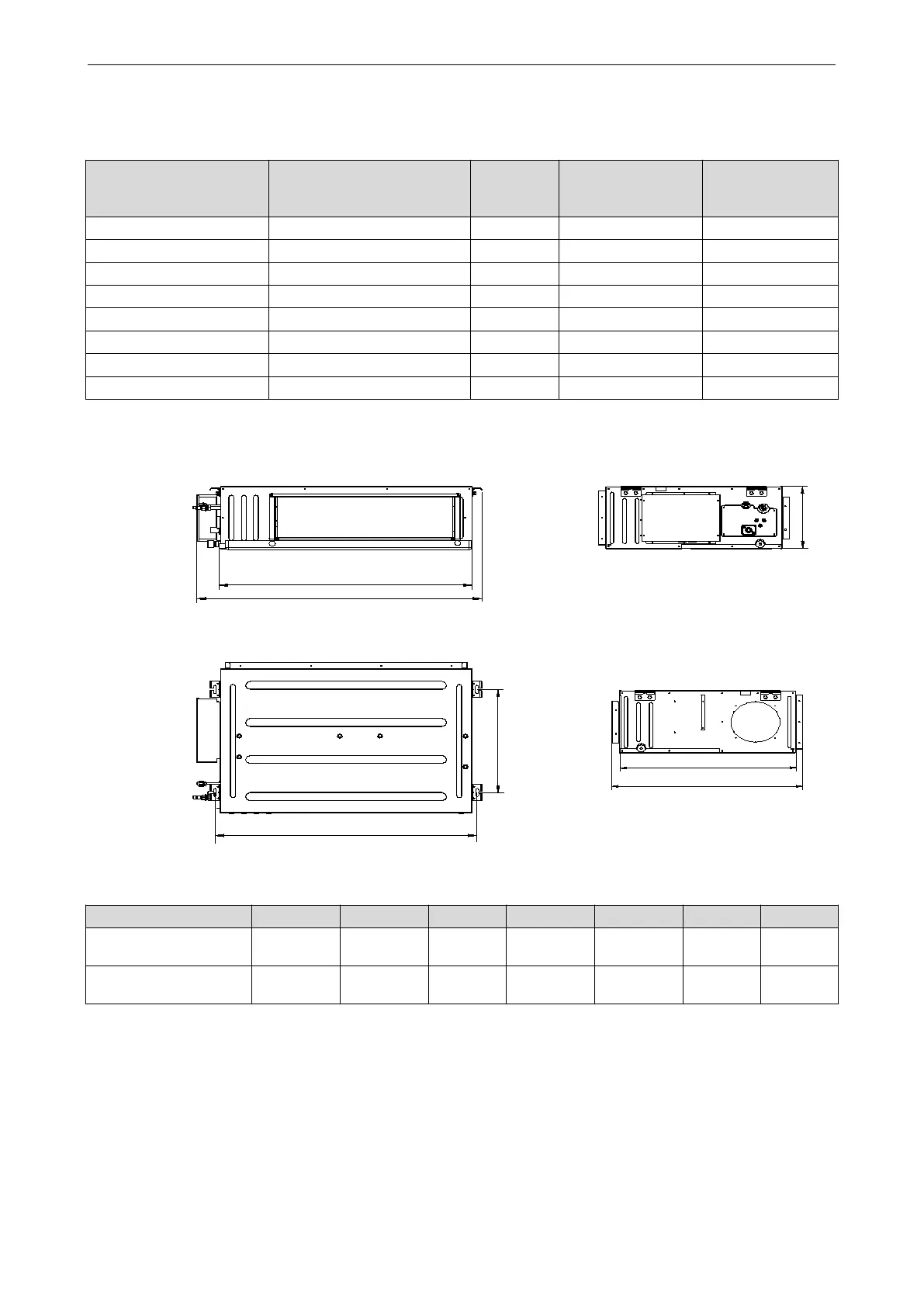

3.9 Installation of Fresh Air Processing Indoor Unit
3.9.1 Outline and Installation Dimension
C
F
B
A
D
G
E
The table below lists the detailed dimensions.
Unit: mm(inch)
Model
A
B
C
D
E
F
G
GMV-NDX42P/A-T(U)
1440
(56-11/16)
500
(19-11/16)
1580
(62-7/32)
300
(11-13/16)
754
(29-11/16)
1400
(55-1/8)
700
(27-9/16)
GMV-NDX48P/A-T(U)
1440
(56-11/16)
500
(19-11/16)
1580
(62-7/32)
300
(11-13/16)
754
(29-11/16)
1400
(55-1/8)
700
(27-9/16)
