4.8 Floor Ceiling Type Indoor Unit
NOTICE! The following steps are specific for GMV-ND48ZD/A-T(U) units. For other units, the assembly
and disassembly procedure is similar except the numbers of centrifugal fans and motors.
Motor and fan
Precondition: The power supply has been disconnected.

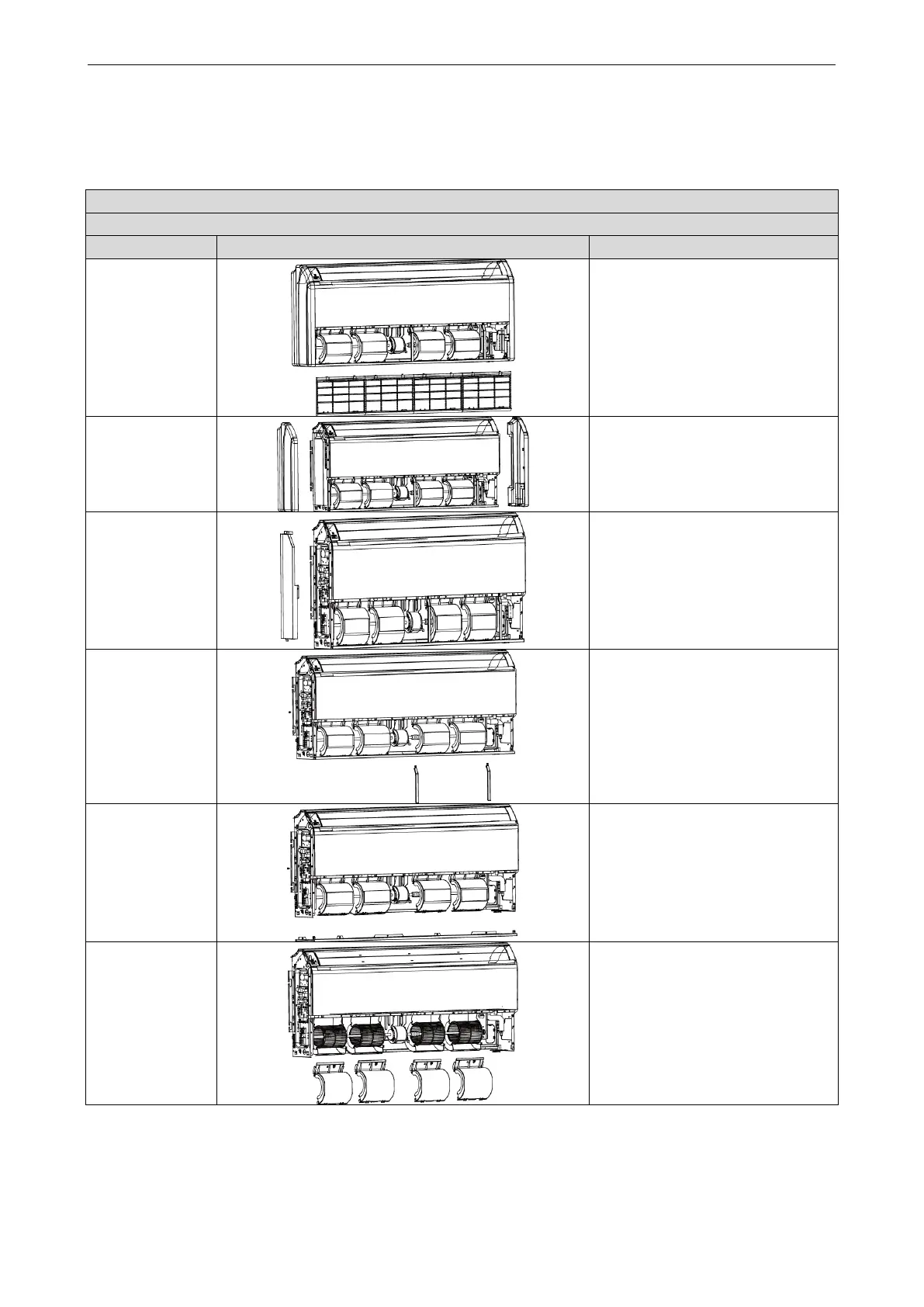

Step
Diagram
Operation Procedure
(1) Remove
the air
return grille.

Loosen the fasteners of the air
return grille and then remove
the grille.
(2) Remove
the left and
right cover
plates.

Use a screwdriver to unscrew
the left and right cover plates
and then remove the cover
plates.
(3) Remove
the electric
box cover
and the line
connecting
to the
motor.

Use a screwdriver to unscrew
the electric box cover.

Remove from the master board
the line connecting to the motor
and remove the tie.
(4) Remove
the limit
board.

Use a screwdriver to unscrew
the limit board and then remove
the board.
(5) Remove
the rear
connecting
board.

Use a screwdriver to unscrew
the rear connecting board and
then remove the board.
(6) Remove
the rear
volute
casing.

Loosen the fasteners that
connect the rear volute casing
with the front volute casing and
remove the rear volute casing.
