5.12 Air Handler type Indoor Unit
1 2 3 4 5 6 7 8 9 10
11
13 14 15 16 17
181920
21
12
2223242526
27
282930

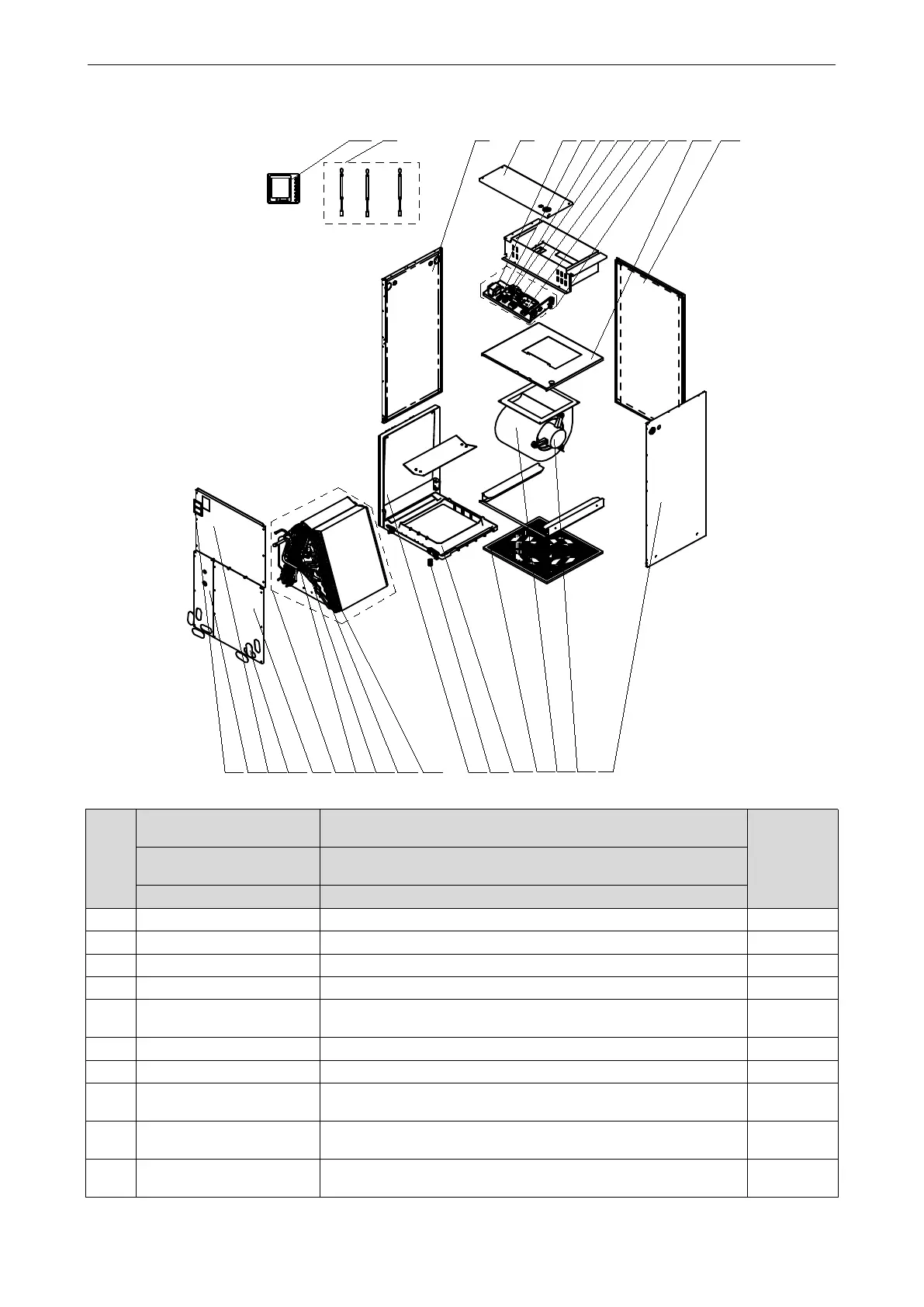

Exploded View of GMV-ND09A/A-T(U) / GMV-ND12A/A-T(U)
NO.
Model
GMV-ND09A/A-T(U)
GMV-ND12A/A-T(U)
Qty.
Product Code
CM810N1900
CM810N1910
Part Name
Part Code
1
insulating board
75142201
1
2
Lower cover plate 1
01264100070
1
3
Top Cover Board Sub-assy
01262200007
1
4
Plastic Cover
26902209
4
5
Lower cover plate
sub-assy 2
01262200009
1
6
Evaporator Assy
011001060571
1
7
Current Divider
035032060003
1
8
Strainer
0721304401
0721200102
1
1
9
Electronic Expansion
Valve
07334463
1
10
Electric Expand Valve
Fitting
4304413219
1
