3.11.4 Selection of air switch and power cord
Model
Power Cord Size
Air Switch
apacity
(A)
Minimum Sectional
Area of Ground Wire
(mm
2
/AWG)
Minimum Sectional
Area of Power Cord
(mm
2
/AWG)
GMV-ND07PHS/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND09PHS/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND12PHS/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND15PHS/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND18PHS/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND22PHS/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND24PHS/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND30PHS/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND36PHS/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND42PHS/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND48PHS/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND54PHS/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND72PH/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND96PH/B-T(U)
208-230V~60Hz
15
1.0/AWG18
1.0/AWG18

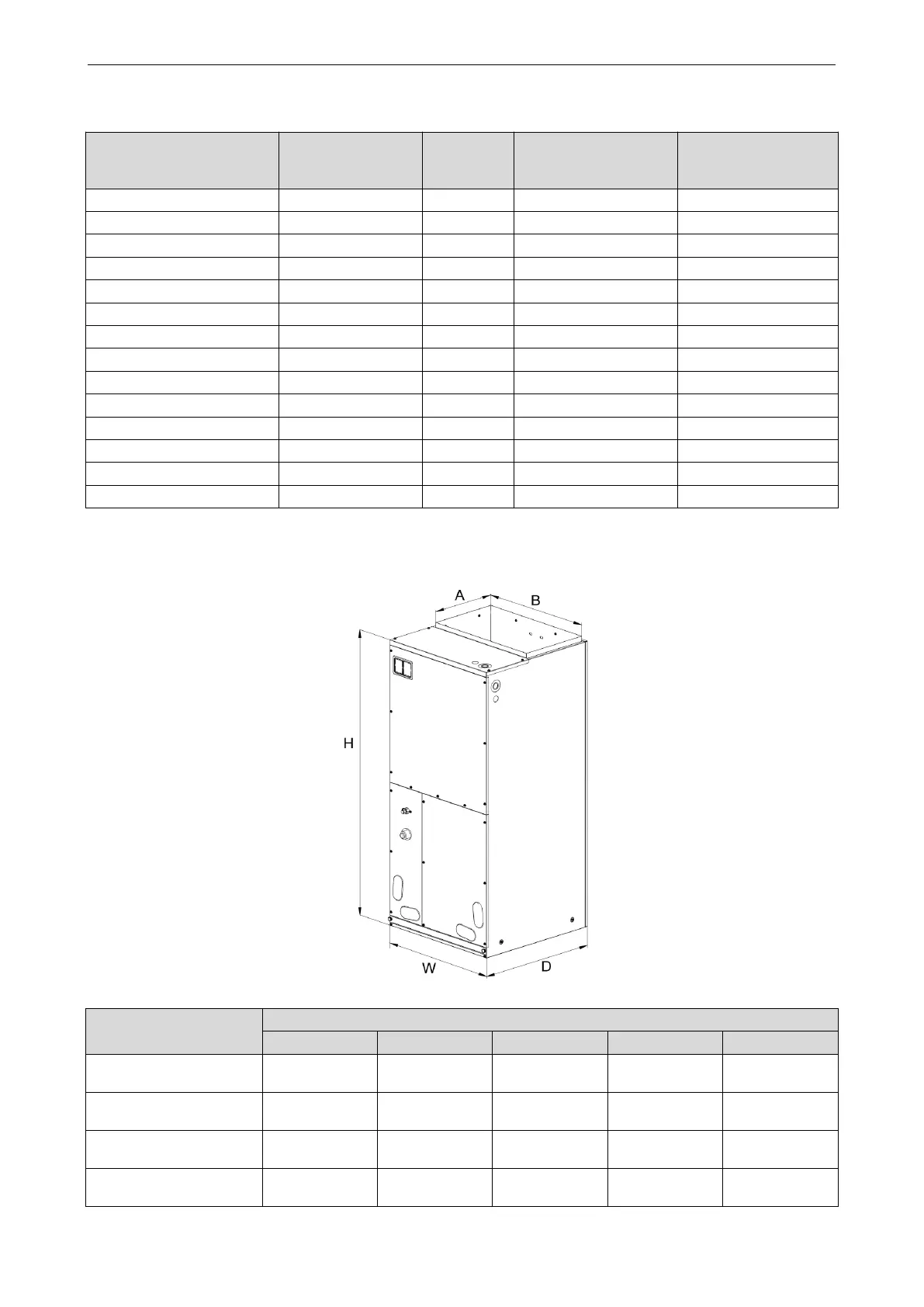

3.12 Installation of Air Handler type Indoor Unit
3.12.1 Outline and installation dimension
Unit: mm(inch)
MODEL
DIMENSION
W
D
H
A
B
GMV-ND09A/A-T(U)
460
(18-1/8)
540
(21-1/4)
1105
(43-1/2)
295
(11-5/8)
426
(16-3/4)
GMV-ND12A/A-T(U)
460
(18-1/8)
540
(21-1/4)
1105
(43-1/2)
295
(11-5/8)
426
(16-3/4)
GMV-ND18A/A-T(U)
460
(18-1/8)
540
(21-1/4)
1105
(43-1/2)
295
(11-5/8)
426
(16-3/4)
GMV-ND24A/A-T(U)
460
(18-1/8)
540
(21-1/4)
1105
(43-1/2)
295
(11-5/8)
426
(16-3/4)
