3.9.3 Installation Notice

The unit shall be installed by the professional personnel according to this installation instruction
to ensure proper use.

Please contact the local Gree appointed service center before installation. Any malfunction
caused by the unit that is not installed by the Gree appointed service center would probably not
be dealt with on time because of the inconvenience of the business contact.

It should be guided under the professional personnel when the air conditioner unit is moved to
other place.
3.9.4 Selection of Air Switch and Power Cord
Model
Power Cord Size
Air Switch
apacity
(A)
Minimum Sectional
Area of
Ground Wire
(mm
2
/AWG)
Minimum Sectional
Area of Power
Cord
(mm
2
/AWG)
GMV-NDX42P/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18
GMV-NDX48P/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18
GMV-NDX54P/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18
GMV-NDX72P/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18
GMV-NDX96P/A-T(U)
208/230V/60Hz
15
1.0/AWG18
1.0/AWG18

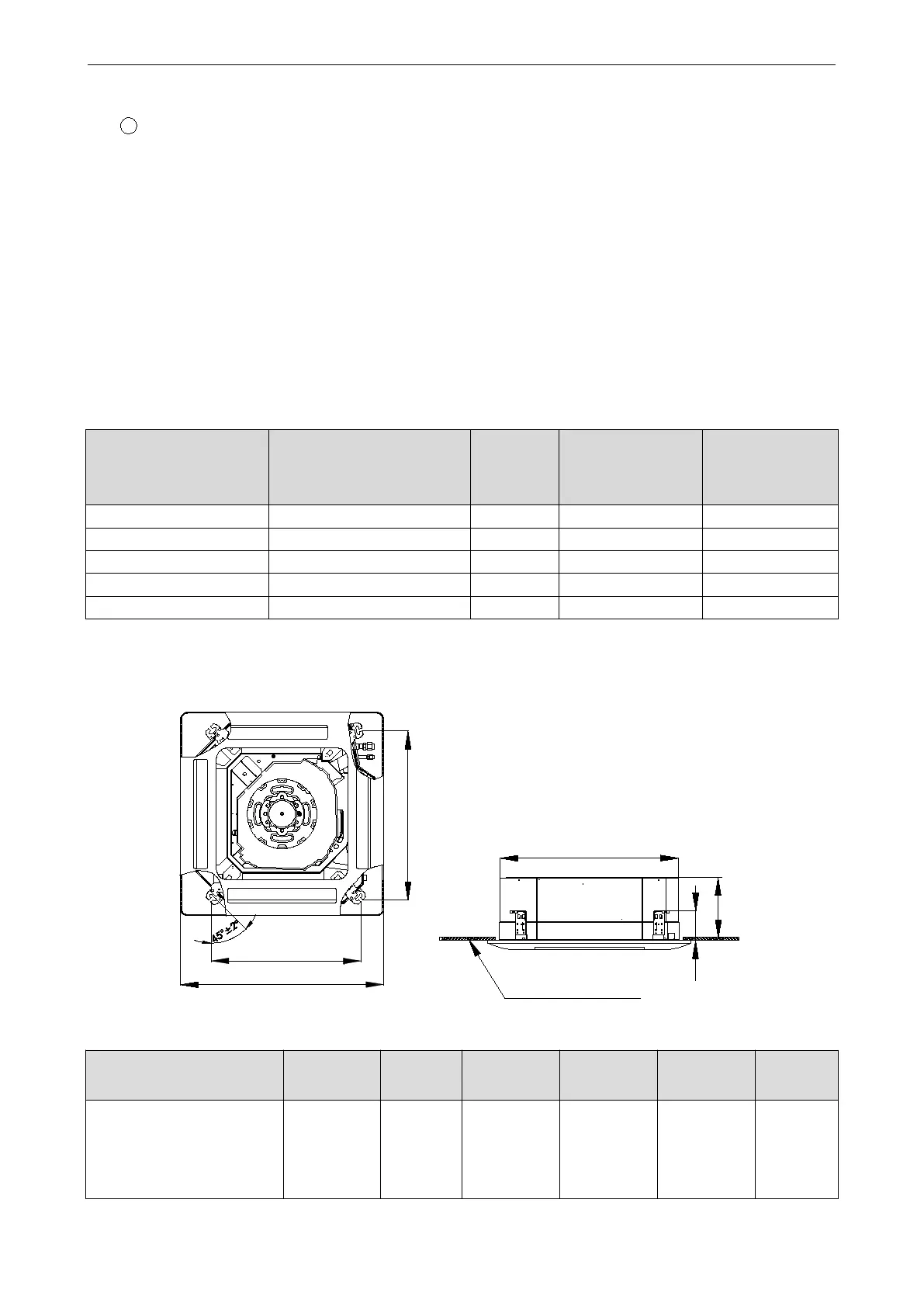

3.10 Installation of Compact Four-way Cassette Type Indoor Unit
3.10.1 Outline and installation dimension
Bottom face of ceiling
Suspension bolt pitch
E
F
B
C
D
A
Panel external dimension
Unit: mm(inch)
Model
A
B
C
D
E
F
GMV-ND07T/B-T(U)
GMV-ND09T/B-T(U)
GMV-ND12T/B-T(U)
GMV-ND15T/B-T(U)
GMV-ND18T/B-T(U)
670
(26-3/8)
596
(23-1/2)
592
(23-5/16)
571
(22-1/2)
145
(5-11/16)
240
(9-1/2)
