3.11 Installation of Super High Static Pressure Duct Type Indoor
Unit

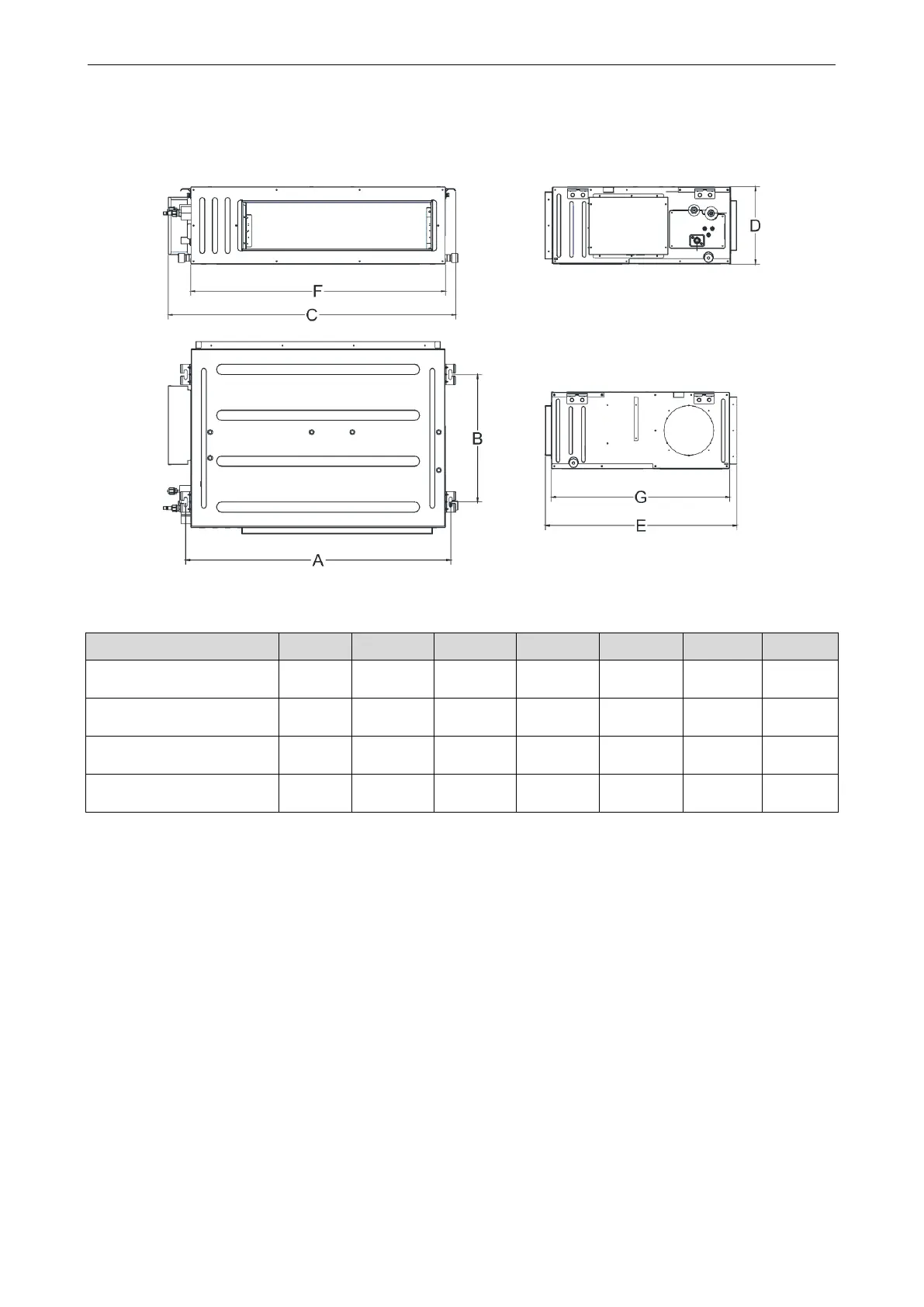

3.11.1 Outline and Installation Dimension
Below are dimensions of A, B, C, etc. for different models:
Unit: mm(inch)
Model
A
B
C
D
E
F
G
GMV-ND07~09PHS/B-T(U)
740
(29-1/8)
500
(19-11/16)
830
(32-11/16)
300
(11-13/16)
754
(29-11/16)
700
(27-9/16)
700
(27-9/16)
GMV-ND12~24PHS/B-T(U)
1040
(40-15/16)
500
(19-11/16)
1130
(44-31/64)
300
(11-13/16)
754
(29-11/16)
1000
(39-3/8)
700
(27-9/16)
GMV-ND30~42PHS/B-T(U)
1440
(56-11/16)
500
(19-11/16)
1530
(60-1/4)
300
(11-13/16)
754
(29-11/16)
1400
(55-1/8)
700
(27-9/16)
GMV-ND48~54PHS/B-T(U)
1440
(56-11/16)
500
(19-11/16)
1580
(62-7/32)
300
(11-13/16)
754
(29-11/16)
1400
(55-1/8)
700
(27-9/16)
