Gree GMV-ND07PLS/A-T(U) User Manual

GREE Multi Variable Air Conditioners Indoor Unit
234
No.
Name of part
For the following unit
Unit
Product Code
GMV-ND30G/B4B-T(U)
CM100N3020
GMV-ND36G/B4B-T(U)
CM100N3030
Part code
Quantity
43
Electric Box Cover
201022523
1
44
Electric Box Cover
2011204404S
1
45
Remote Controller
30510589
1
46
Electric Expand Valve
Fitting
4304413217
1
47
Fan Bearing
7651221001
1
48
Fan Bearing
76512210
1
49
Temperature Sensor
390002072
1
50
Temperature Sensor
39000076G
1
51
Temperature Sensor
390000454
1
Above data is subject to change without notice, please reference the SP in global service website.
5.10 Compact Four-way Cassette Type Indoor Unit

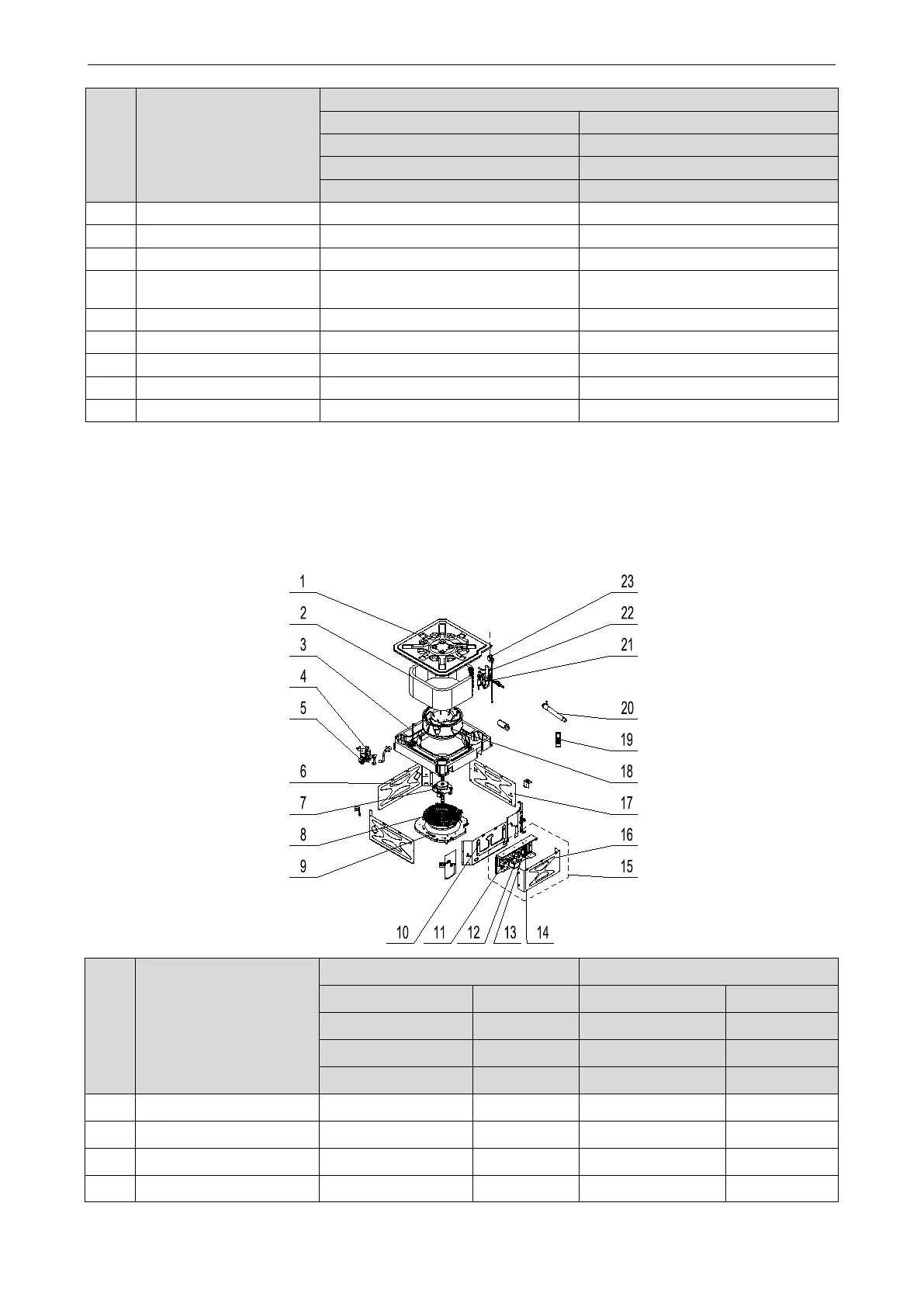

Exploded View of GMV-ND07T/B-T(U) / GMV-ND09T/B-T(U) / GMV-ND12T/B-T(U) /
GMV-ND15T/B-T(U) / GMV-ND18T/B-T(U)
No.
Name of part
For the following unit
For the following unit
Unit
Product Code
Unit
Product Code
GMV-ND07T/B-T(U)
CM500N0940
GMV-ND12T/B-T(U)
CM500N0960
GMV-ND09T/B-T(U)
CM500N0950
GMV-ND15T/B-T(U)
CM500N0970
Part code
Quantity
Part code
Quantity
1
Base Plate Assy
02229400007
1
02229400007
1
2
Evaporator Assy
01024100149
1
01024100137
1
3
Water Tray Assy
01289400004
1
01289400004
1
4
Liquid Level Switch
450102013
1
450102013
1
