4 Disassembly And Assembly Procedure of Main Parts
4.1 Low Static Pressure Duct Type Indoor Unit
NOTICE! The following steps are specific for GMV-ND09PLS/A-T(U) units. For other units, the assembly
and disassembly procedure is similar except the numbers of centrifugal fans and motors.
Motor and fan
Precondition: The power supply has been disconnected.

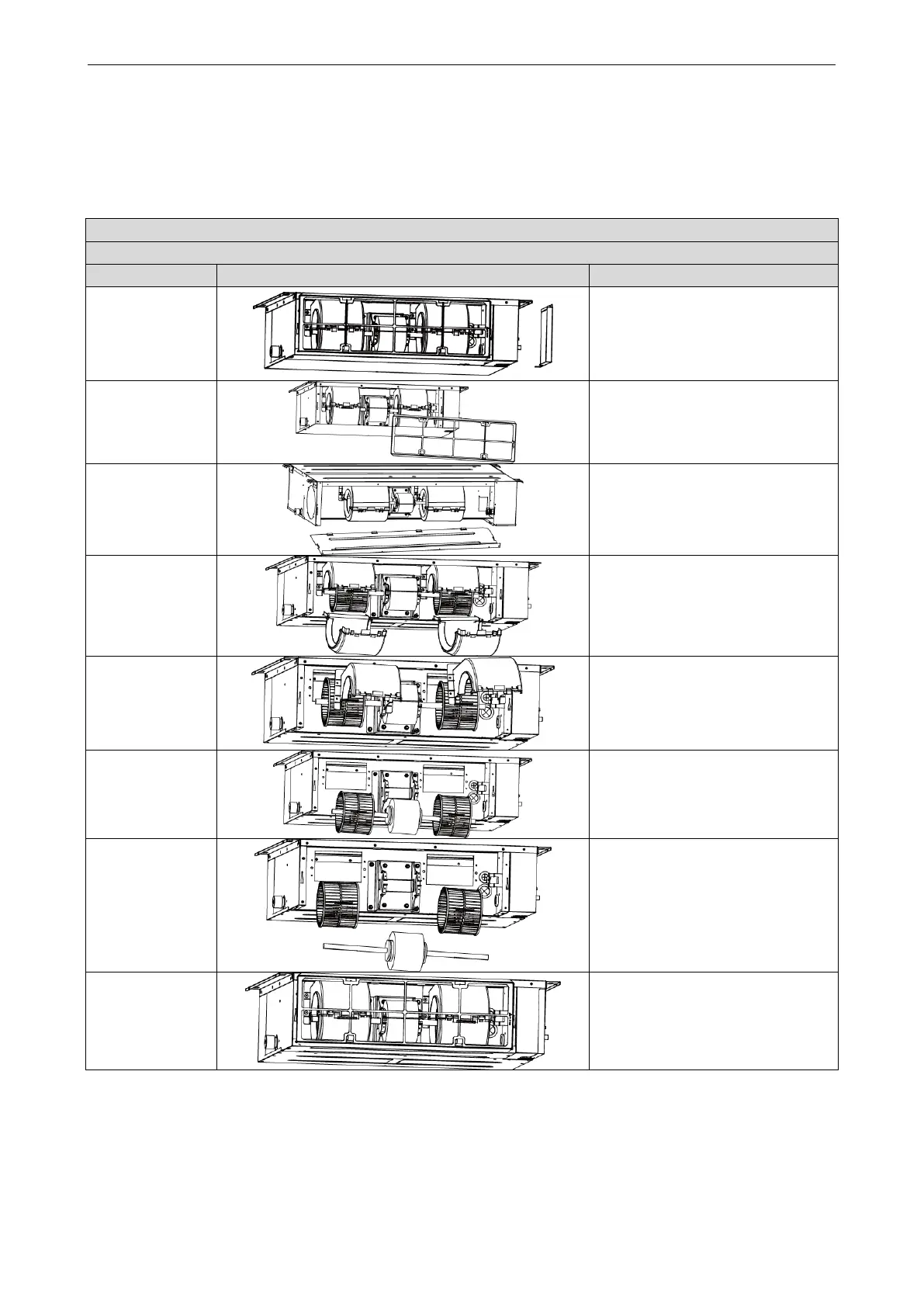

Step
Diagram
Operation Procedure
(1) Remove
the line
connecting
to the
motor.

Use a screwdriver to unscrew
the electric box cover.

Remove from the master board
the line connecting to the motor
and remove the tie.
(2) Remove
the filter.

Remove the filter from the air
return frame.
(3) Remove
the air
return cover
plate.

Use a screwdriver to unscrew
the air return cover plate.
(4) Remove
the rear
volute
casing.

Loosen the fasteners that
connect the rear volute casing
with the front volute casing and
remove the rear volute casing.
(5) Remove
the front
volute
casing.

Use a screwdriver to unscrew
the front volute casing and then
remove the volute casing.
(6) Loosen the
centrifugal
fan and
motor.

Use a hexagon to unscrew the
centrifugal fan and loosen the
fasteners of the motor.
(7) Remove
the motor.

Remove the motor from the
support and remove the
centrifugal fan from the motor
axle. Then, remove the motor.

For motors that are
accompanied with supports, the
supports need removing as well.
(8) Install a
new motor.

Assemble units based on the
reverse order of this procedure
and power on the units for test.
