5.9 Wall Mounted type Indoor Unit

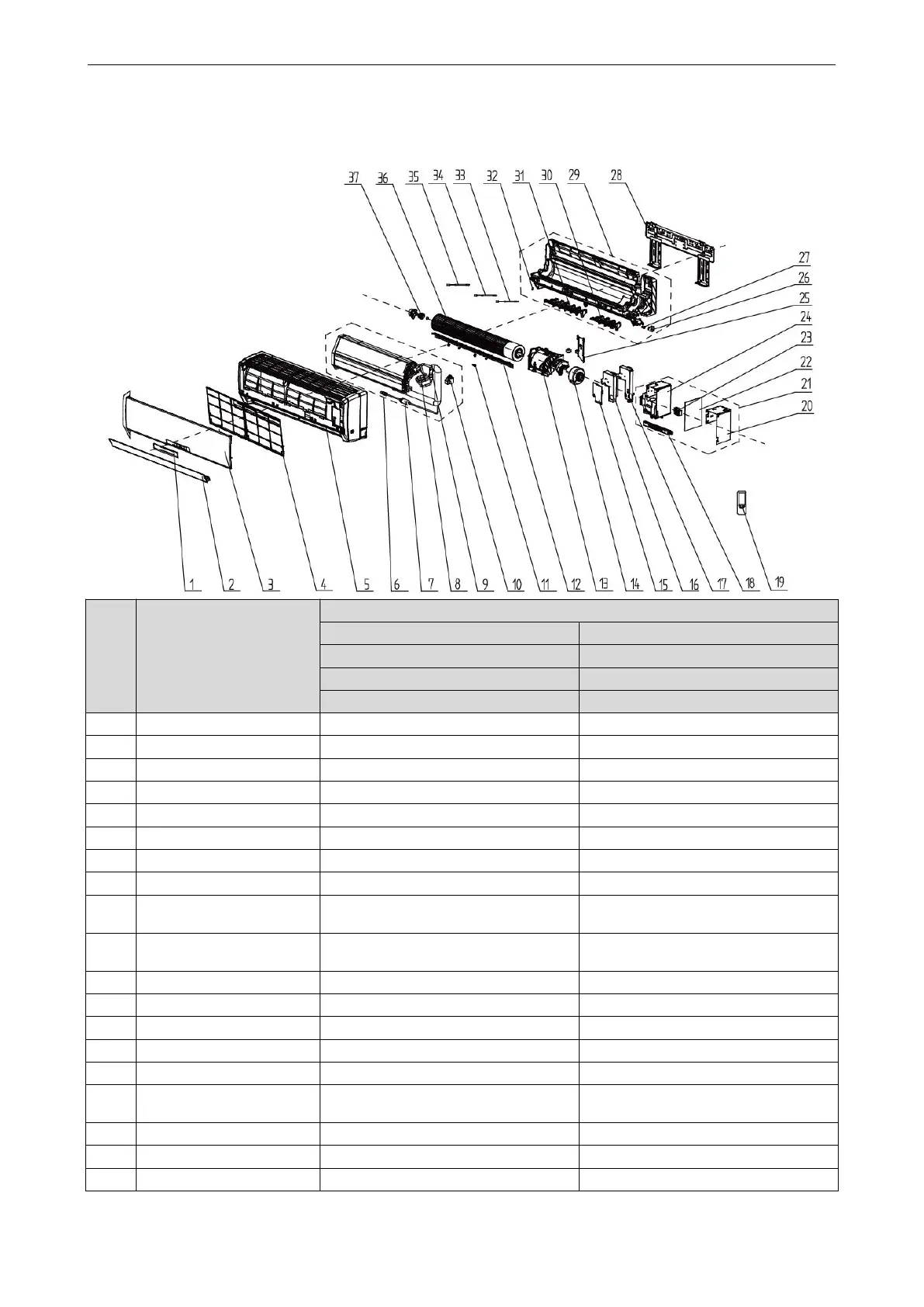

Exploded View of G GMV-N07G/A3A-D(U) / GMV-N09G/A3A-D(U)
No.
Name of part
For the following unit
Unit
Product Code
GMV-N07G/A3A-D(U)
CM100N1480
GMV-N09G/A3A-D(U)
CM100N1490
Part code
Quantity
1
Receiver Window
22432230
1
2
Guide Louver
10512157
1
3
Front Panel B1
20012122S
1
4
Filter Sub-Assy
1112220403
1
5
Front Case Sub-assy
2001213931
1
6
Evaporator Assy
01024100102
1
7
Strainer
07414100006
4
8
Strainer
07213050
4
9
Electronic Expansion
Valve
07334463
4
10
Electric Expand Valve
Fitting
4304413217
1
11
Axile Bush
10542036
1
12
Rear Grill
01472013
1
13
Motor Press Plate
26904100117
1
14
Fan Motor
1501208905
1
15
Electric Box Cover2
2012207504
1
16
Shield Cover of Electric
Box Sub-Assy
01592073
1
17
Electric Box Cover1
2224213502
1
18
Display Board
30565007
1
19
Remote Controller
30510589
1
