GREE
Multi
Variable
Air
Conditi
oners
Indoor
Unit
47
2
Wired
Controller
2.1
Control

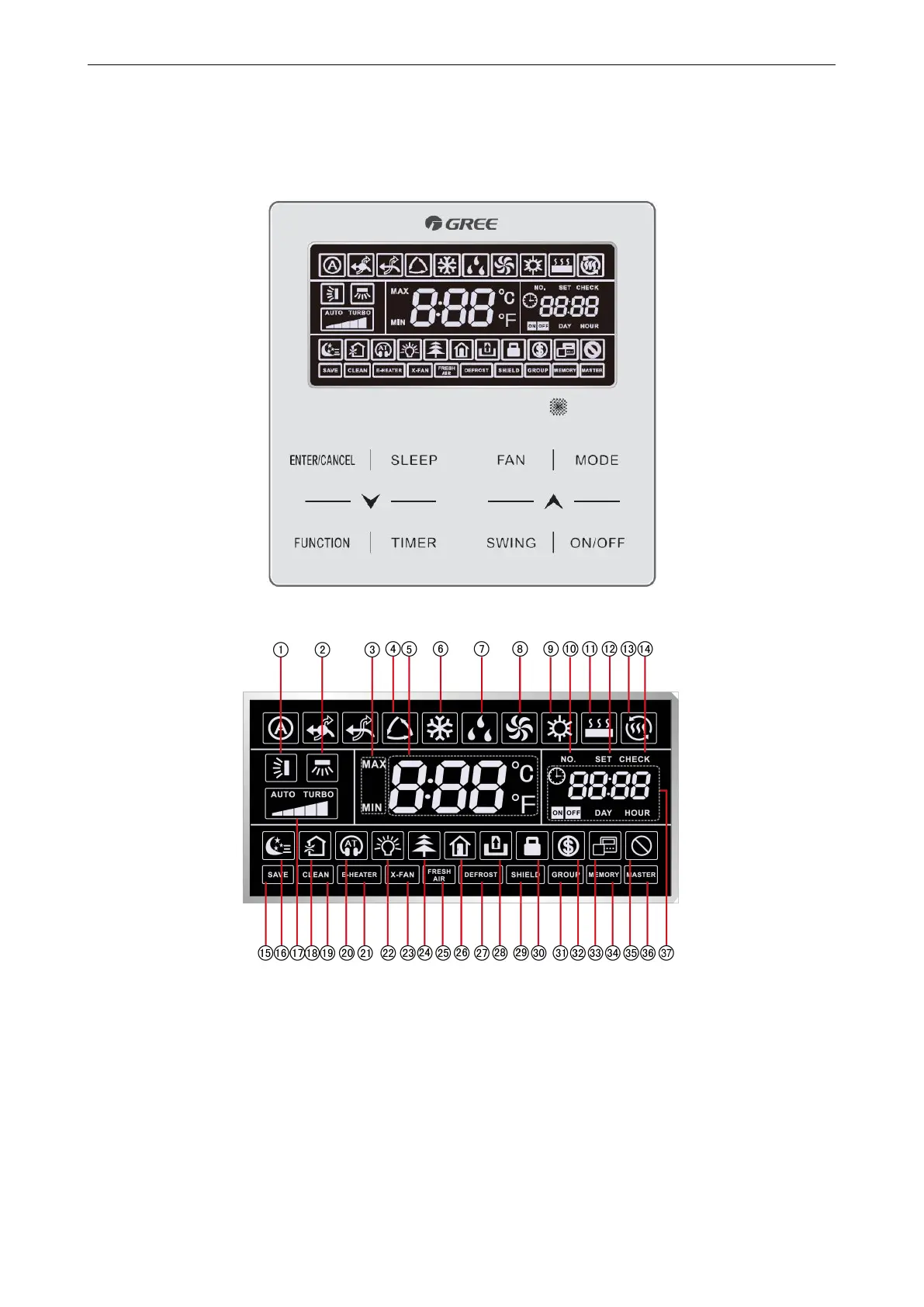

Panel
2.1.1
XK46
Wired
Controller
Fig.2.1.1
Appe
arance
of
wire
d
c
ontroller
Fig.2.1.2
LED
graphics
of
wire
d
c
ontroller
52
54
Table of Contents
Default Chapter
2
Table of Contents
2
Product
7
Chapter 1 Product
8
Product List
8
Low Static Pressure Duct Type Indoor Unit
8
Slim Duct Type Indoor Unit
8
Four-Way Cassette Type Indoor Unit
8
Wall Mounted Type Indoor Unit
9
Console Type Indoor Unit
10
High Static Pressure Duct Type Indoor Unit
10
Two-Way Cassette Type Indoor Unit
10
Floor Ceiling Type Indoor Unit
11
Fresh Air Processing Type Indoor Unit
11
Compact Four-Way Cassette Type Indoor Unit
11
Super High Static Pressure Duct Type Indoor Unit
12
Air Handler Type Indoor Unit
12
Ahu-Kit
13
1-Way Cassette Type Indoor Unit
13
Low Static Pressure Duct Type Indoor Unit
13
360°Air Discharge Compact Cassette Type Indoor Unit
14
Nomenclature
14
Product Features
15
Features of Low Static Pressure Duct Type Indoor Unit
15
Features of Slim Duct Type Indoor Unit
15
Features of Four-Way Cassette Type Indoor Unit
16
Features of Wall Mounted Type Indoor Unit
16
Features of Console Type Indoor Unit
17
Features of High Static Pressure Duct Type Indoor Unit
17
Features of Two-Way Cassette Type Indoor Unit
17
Features of Floor Ceiling Type Indoor Unit
17
Features of Fresh Air Processing Type Indoor Unit
18
Features of Compact Four-Way Cassette Type Indoor Unit
18
Features of Super High Static Pressure Duct Type Indoor Unit
19
Features of Air Handler Type Indoor Unit
19
Features of AHU-KIT
19
Features of 1-Way Cassette Type Indoor Unit
20
Features of Low Static Pressure Duct Type Indoor Unit
20
Features of 360°Air Discharge Compact Cassette Type Indoor Unit
20
Specifications
21
Low Static Pressure Duct Type Indoor Unit
21
Slim Duct Type Indoor Unit
23
Four-Way Cassette Type Indoor Unit
25
Wall Mounted Type Indoor Unit
27
Console Type Indoor Unit
30
High Static Pressure Duct Type Indoor Unit
31
Two-Way Cassette Type Indoor Unit
33
Floor Ceiling Type Indoor Unit
34
Fresh Air Processing Type Indoor Unit
36
Compact Four-Way Cassette Type Indoor Unit
38
Super High Static Pressure Duct Type Indoor Unit
39
Air Handler Type Indoor Unit
43
Ahu-Kit
45
1-Way Cassette Type Indoor Unit
46
Low Static Pressure Duct Type Indoor Unit
47
360°Air Discharge Compact Cassette Type Indoor Unit
48
Control
51
Chapter 2 Control
52
Operation Flowchart
52
Wired Controller
53
Control Panel
53
Installation and Removal
59
Remote Controller
64
Remote Controller YAP1F
64
Remote Controller YV1L1
65
Introduction to Unit Functions
66
Engineering Application Functions Operated through the XK46 Wired Controller
66
Engineering Application Functions Operated through the XK49 Wired Controller
82
Engineering Application Functions Operated through the XK79 Wired Controller
84
Engineering Application Functions Operated through the YV1L1 Remote Controller
87
Engineering Application Functions Operated through the YAP1F Remote Controller
93
Installation
95
Chapter 3 Installation
96
Engineering Installation Preparation and Notice
96
Installation Notice
96
Installation Key Points and Importance
96
Installation Materials Selection
97
Refrigerant Piping
98
Condensate Water Pipe
98
Insulation Material
98
Communication Cable and Control Cable
99
Power Cable
99
Hanger Rod and Support
99
Installation of Indoor Unit
100
Installation of Low Static Pressure Duct Type Indoor Unit
100
Installation of Slim Duct Type Indoor Unit
102
Installation of Four-Way Cassette Type Indoor Unit
104
Installation of Wall-Mounted Indoor Unit
106
Installation of Console Type Indoor Unit
108
Installation of High Static Pressure Duct Type Indoor Unit
110
Installation of Two-Way Cassette Type Indoor Unit
113
Installation of Floor Ceiling Type Indoor Unit
114
Installation of Fresh Air Processing Indoor Unit
116
Installation of Compact Four-Way Cassette Type Indoor Unit
118
Installation of Super High Static Pressure Duct Type Indoor Unit
120
Installation of Air Handler Type Indoor Unit
123
Installation of AHU-KIT
125
Installation of 1-Way Cassette Type Indoor Unit
128
Installation of Low Static Pressure Duct Type Indoor Unit
130
Installation of 360°Air Discharge Compact Cassette Type Indoor Unit
131
Installation of Connection Pipe
133
Flaring Process
133
Pipe Bending
133
Indoor Pipe Connection
134
Installation of Drain Pipe
135
Precautions When Doing the Piping Work
135
Installing the Drain Pipes
135
Precautions When Doing Riser Piping Work
137
Testing of Drain Piping
138
Electrical Installation
138
Maintenance
139
Chapter 4 Maintenance
140
Malfunction List
140
Malfunction List for the Wired Controller
140
Display of Light Board (Only for Two-Way Cassette Type Indoor Unit)
140
Exception Analyzing and Troubleshooting
141
After-Sales Emergency Masures
153
Wiring Diagram
154
Low Static Pressure Duct Type Indoor Unit
154
Slim Duct Type Indoor Unit
155
Four-Way Cassette Type Indoor Unit
155
Wall Mounted Type Indoor Unit
156
Console Type Indoor Unit
157
High Static Pressure Duct Type Indoor Unit
158
Two-Way Cassette Type Indoor Unit
159
Floor Ceiling Type Indoor Unit
159
Fresh Air Processing Indoor Unit
160
Compact Four-Way Cassette Type Indoor Unit
161
Super High Static Pressure Duct Type Indoor Unit
161
Air Handler Type Indoor Unit
163
Ahu-Kit
164
1-Way Cassette Type Indoor Unit
164
Low Static Pressure Duct Type Indoor Unit
165
360°Air Discharge Compact Casssette Type Indoor Unit
165
Disassembly and Assembly Procedure of Main Parts
166
Low Static Pressure Duct Type Indoor Unit
166
Slim Duct Type Indoor Unit
167
Four-Way Cassette Type Indoor Unit
168
Wall Mounted Type Indoor Unit
170
Console Type Indoor Unit
172
High Static Pressure Duct Type Indoor Unit
173
Two-Way Cassette Type Indoor Unit
175
Floor Ceiling Type Indoor Unit
176
Fresh Air Processing Indoor Unit
177
Compact Four-Way Cassette Type Indoor Unit
179
Super High Static Pressure Duct Type Indoor Unit
182
Air Handler Type Indoor Unit
184
1-Way Cassette Type Indoor Unit
185
Low Static Pressure Duct Type Indoor Unit
187
360°Air Discharge Compact Casssette Type Indoor Unit
188
Exploded Views and Part List
191
Low Static Pressure Duct Type Indoor Unit
191
Slim Duct Type Indoor Unit
196
Four-Way Cassette Type Indoor Unit
203
High Static Pressure Duct Type Indoor Unit
208
Two-Way Cassette Type Indoor Unit
213
Floor Ceiling Type Indoor Unit
215
Fresh Air Processing Type Indoor Unit
224
Console Type Indoor Unit
227
Wall Mounted Type Indoor Unit
229
Compact Four-Way Cassette Type Indoor Unit
240
Super High Static Pressure Duct Type Indoor Unit
242
Air Handler Type Indoor Unit
252
Ahu-Kit
256
1-Way Cassette Type Indoor Unit
260
Low Static Pressure Duct Type Indoor Unit
262
360°Air Discharge Compact Casssette Type Indoor Unit
264
