inside the option boxes and may reduce its lifetime and influence its operation.

Choose a flat and strong mounting surface.

Make sure there is enough free space in front and in the side of the AHU-KIT unit for future
maintenance.

The installation site should be far away from heat source, inflammable gas and smoke.

Keep the air handling unit, power supply wiring and transmission wiring at least 1 m away from
televisions and radios. This is to prevent image interference and noise in those electrical
appliances (Noise may be generated depending on the conditions under which the electric
wave is generated, even if 1 m is kept).

Make sure the electronic expansion valve is installed in an upright position.
3.13.3 Selection of air switch and power cord
Model
Power Supply
Circuit Breaker
Capacity (A)
Minimum Sectional
Area of Ground Wire
(mm
2
/AWG)
Minimum Sectional
Area of Power Cord
(mm
2
/AWG)
GMV-N12U/A-T(U)
208/230V-1ph-60Hz
15
1.0/AWG18
1.0/AWG18
GMV-N24U/A-T(U)
15
1.0/AWG18
1.0/AWG18
GMV-N48U/A-T(U)
15
1.0/AWG18
1.0/AWG18
GMV-N96U/A-T(U)
15
1.0/AWG18
1.0/AWG18
GMV-N192U/A-T(U)
15
1.0/AWG18
1.0/AWG18
3.14 Installation of 1-way Cassette Type Indoor Unit

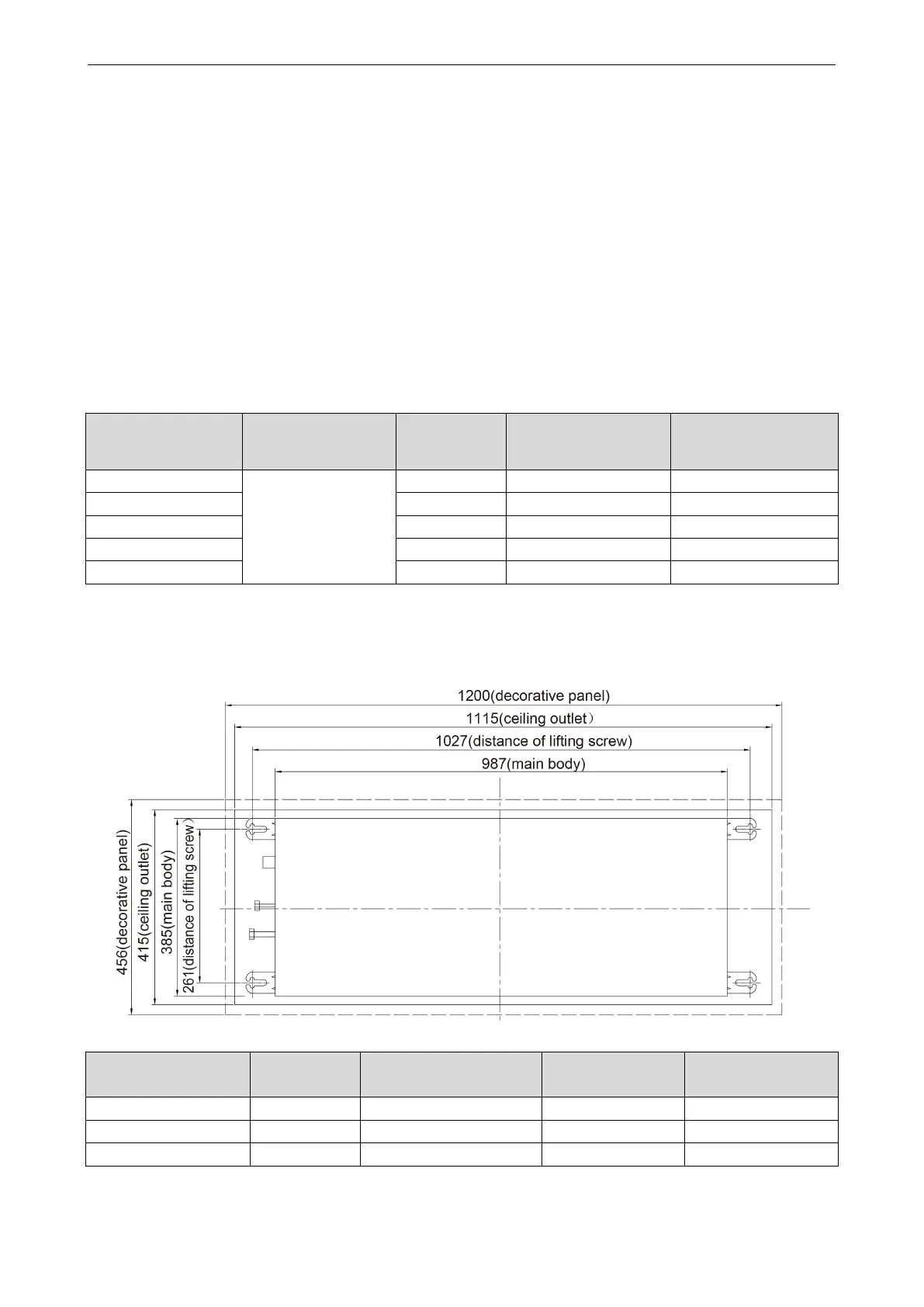

3.14.1 Outline and Installation Dimension
Unit: mm (inch)
Unit: mm (inch)
Model
Indoor unit(A)
Suspension bolt pitch(B)
Ceiling opening(C)
Decoration panel(D)
GMV-ND07TD/A-T(U)
987(38-7/8)
1027(40-3/8)
1115(43-7/8)
1200(47-1/4)
GMV-ND09TD/A-T(U)
987(38-7/8)
1027(40-3/8)
1115(43-7/8)
1200(47-1/4)
GMV-ND12TD/A-T(U)
987(38-7/8)
1027(40-3/8)
1115(43-7/8)
1200(47-1/4)
