5.2 Slim Duct Type Indoor Unit

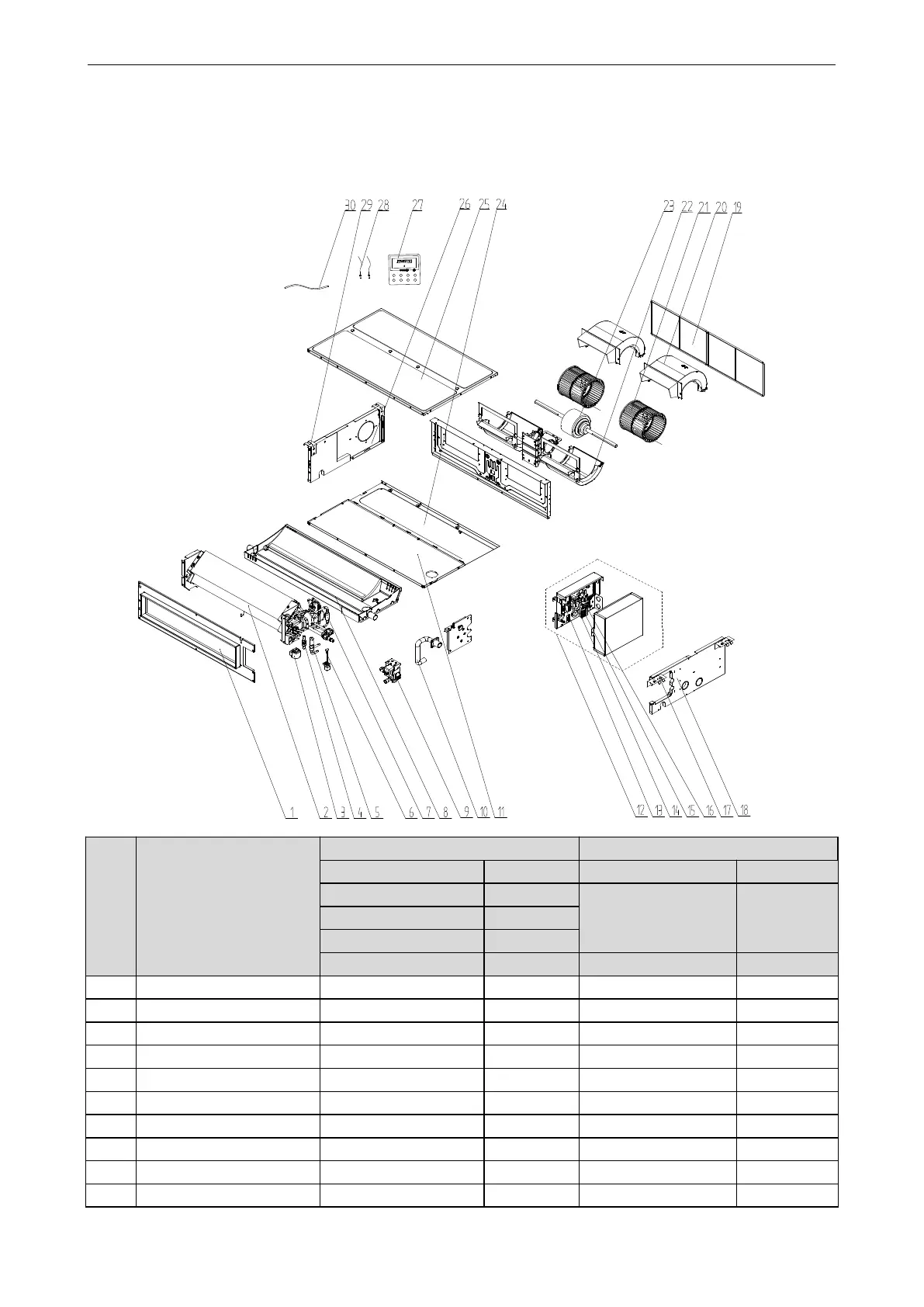

Exploded View of GMV-ND06PLS/B-T(U) / GMV-ND07PLS/B-T(U) / GMV-ND09PLS/B-T(U) /
GMV-ND12PLS/B-T(U):
No.
Name of part
For the following unit
For the following unit
Unit
Product Code
Unit
Product Code
GMV-ND06PLS/B-T(U)
CM810N1980
GMV-ND12PLS/B-T(U)
CM810N1700
GMV-ND07PLS/B-T(U)
CM810N1720
GMV-ND09PLS/B-T(U)
CM810N1710
Part code
Quantity
Part code
Quantity
1
Air Outlet Frame Assy
000141000012
1
000141000012
1
2
Evaporator Assy
011001000363
1
011001000360
1
3
Electric Expand Valve Fitting
` 4304413266
1
` 4304413266
1
4
Strainer
0721200102
1
0721200102
1
5
Electronic Expansion Valve
07334463
1
07334463
1
6
Liquid Level Switch
430024000005
1
430024000005
1
7
Strainer
07213050
1
07213050
1
8
Water Tray Assy
000069000060
1
000069000060
1
9
Water Pump
812007060016
1
812007060016
1
10
Pump Drainpipe
200070000005
1
200070000005
/
