3.12.3 Selection of air switch and power cord
Model
Power Supply
Circuit
Breaker
Capacity (A)
Minimum Sectional
Area of Ground Wire
(mm
2
/AWG)
Minimum Sectional
Area of Power Cord
(mm
2
/AWG)
GMV-ND09A/A-T(U)
208/230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND12A/A-T(U)
208/230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND18A/A-T(U)
208/230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND24A/A-T(U)
208/230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND30A/A-T(U)
208/230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND36A/A-T(U)
208/230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND42A/A-T(U)
208/230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND48A/A-T(U)
208/230V~60Hz
15
1.0/AWG18
1.0/AWG18
GMV-ND54A/A-T(U)
208/230V~60Hz
15
1.0/AWG18
1.0/AWG18

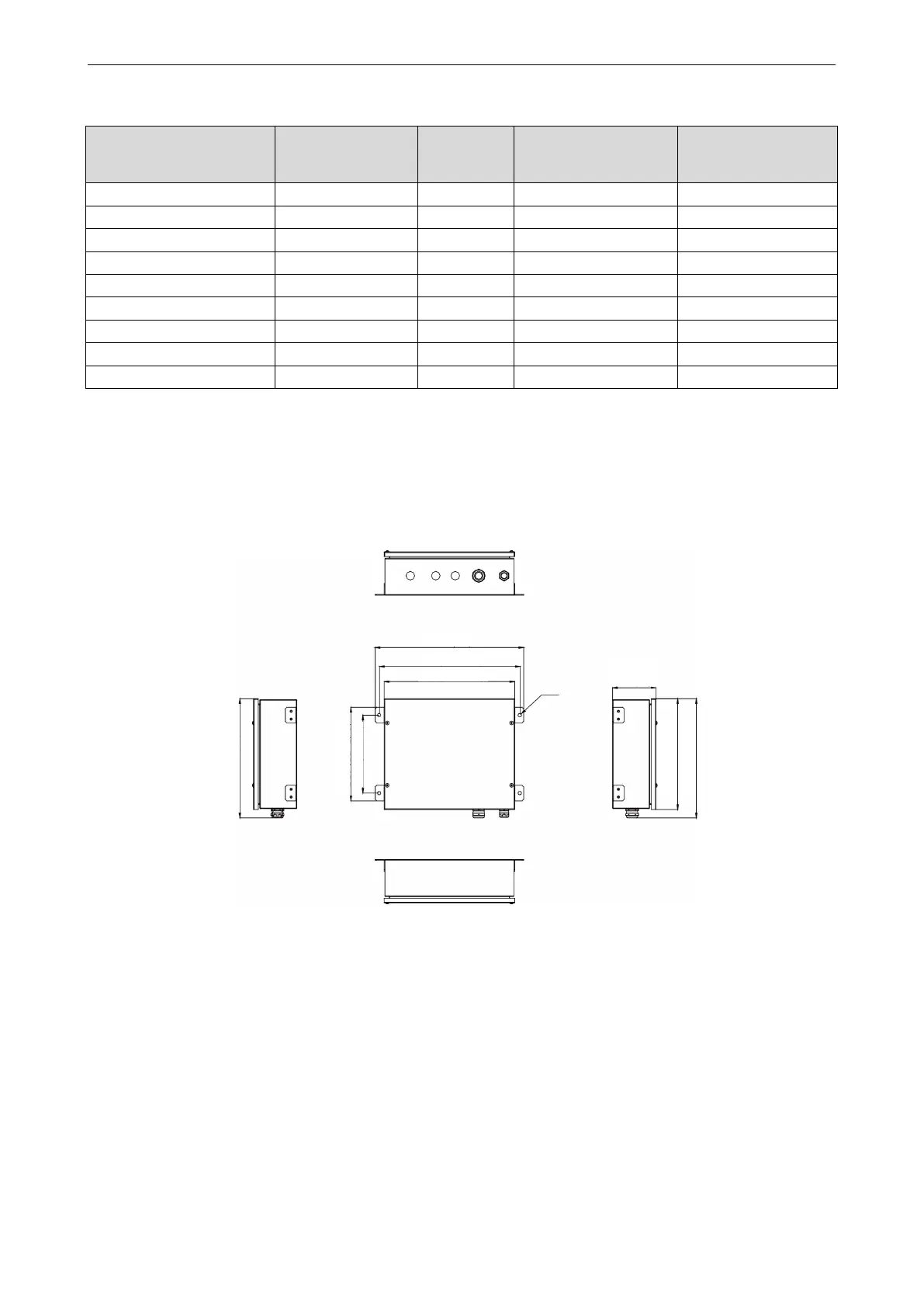

3.13 Installation of AHU-KIT
3.13.1 Outline and installation dimension
Size of control box for GMV-N12U/A-T(U) / GMV-N24U/A-T(U) / GMV-N48U/A-T(U) /
GMV-N96U/A-T(U) and GMV-N192U/A-T(U):
Unit: mm(inch)
380(15)
306(12)
111(4-3/8)
248(11-1/8)
306(12)
240(11-1/8)
200(7-7/8)
334(13-1/8)
4-Φ9
360(14-1/8)
