HEIDENHAIN TNC 426, TNC 430 163
6.6 Path Contours—FK Free Contour Programming

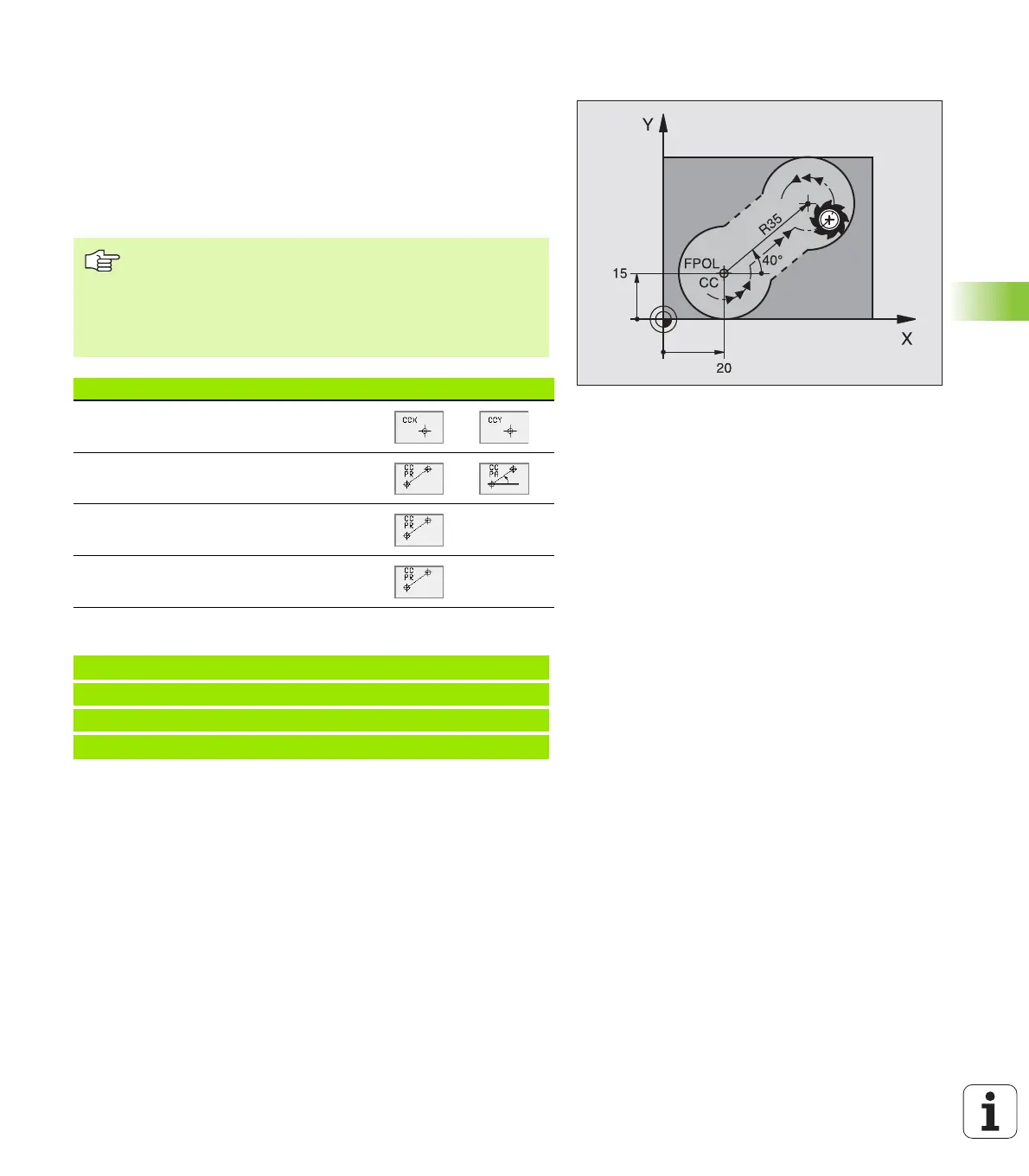

Circle center CC, radius and direction of rotation in the FC/FCT
block
The TNC calculates a circle center for free-programmed arcs from the
data you enter. This makes it possible to program full circles in an FK
program block.
If you wish to define the circle center in polar coordinates you must
use FPOL, not CC, to define the pole. FPOL is entered in Cartesian
coordinates and remains in effect until the TNC encounters a block in
which another FPOL is defined.
Example NC blocks
A circle center that was calculated or programmed
conventionally is then no longer valid as a pole or circle
center for the new FK contour: If you enter conventional
polar coordinates that refer to a pole from a CC block you
have defined previously, then you must enter the pole
again in a CC block after the FK contour.
Known data Soft keys
Circle center in Cartesian coordinates
Circle center in polar coordinates
Rotational direction of the arc
Radius of the arc
10 FC CCX+20 CCY+15 DR+ R15
11 FPOL X+20 Y+15
12 FL AN+40
13 FC DR+ R15 CCPR+35 CCPA+40
