114 PX4i and PX6i High Performance Printer User Guide

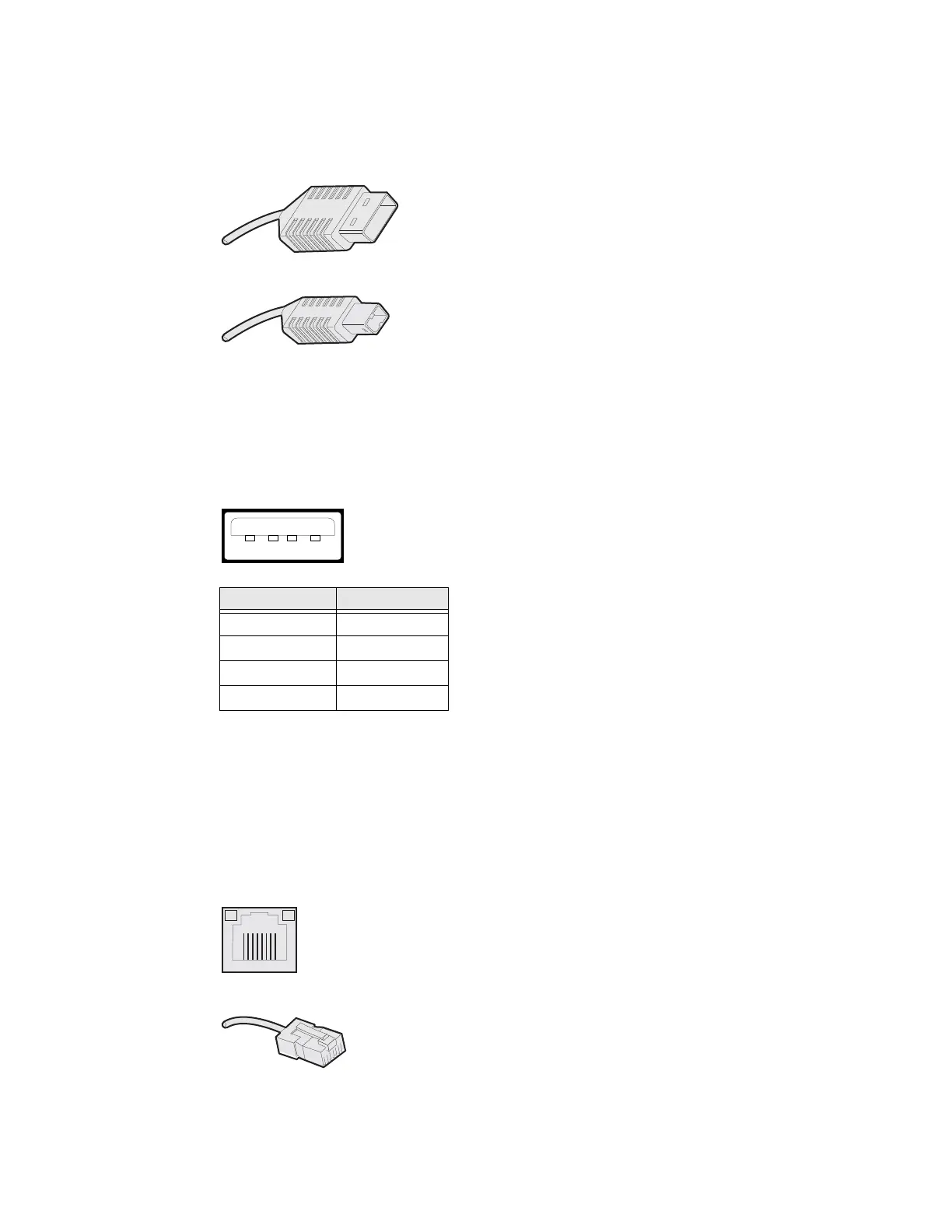

The USB cable that ships with the printer has a USB Type A connector on one end
to connect to the PC and a USB Type B connector on the other end to connect to
the printer. You do not need to configure communications for the USB port.
USB Type A Connector
USB Type B Connector
USB Host Interface
The printer has a USB host interface for connecting USB devices such as HID bar
code scanners and keyboards, USB storage devices, and USB hubs.
USB Host Interface
Ethernet Interface
The Ethernet interface has an RJ-45 socket for use with a standard RJ-45 cable.
The interface supports 10/100 Mbps Fast Ethernet (10BASE-T, 100BASE-TX) and
is fully compliant with the IEEE 802.3u standard. The network card MAC address
can be found on the label below the socket.
Ethernet Socket
Ethernet Connector
Pin Description
1VBUS
2D-
3D+
4Gnd
