4 PX940 User Guide

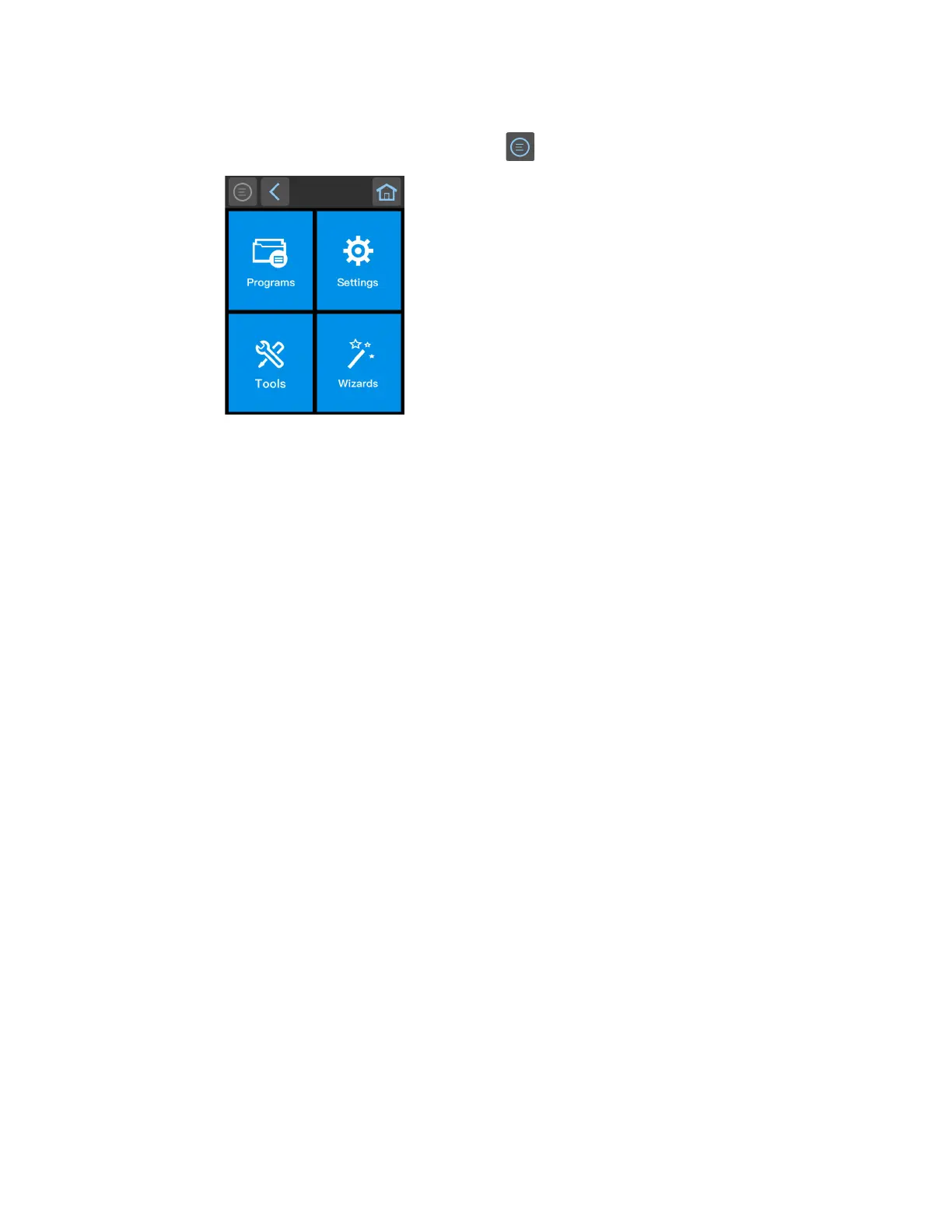

Main Menu
On the printer Ready screen, press to view the Main Menu.
Note: If you create menu shortcuts, the Main Menu is replaced by the Quick Choices menu.
Press a button to select the Programs, Settings, Tools, or Wizards menu.
• Programs displays a list of programs installed on the printer. This list includes
utility programs provided as part of the firmware and programs you have
installed. Programs appears in the Main Menu only if the printer is using
Fingerprint or Direct Protocol as the command language.
• Select Settings to view and change printer settings.
• Select Tools to print test labels, manage a connected USB storage device,
restore printer default settings, or save and load printer profiles.
• Select Wizards to see a list of wizards that help you configure printing or
communication settings, or calibrate the media sensors.
Note: The printer cannot print while the Main Menu is showing. Exit the Main Menu and
return to the Ready screen to begin printing.

Honeywell PX940 Specifications

General

Ethernet LAN	Yes
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Flash memory	256 MB
Internal memory	1024 MB
Page description languages	DP, DPL, XML, ZPL II, IPL
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 85 %
Cables included	AC
Color	No
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI
Minimum print length	4800 mm
Maximum printing width	108 mm
Ribbon width	110 mm
Core diameter	25 mm
Ribbon length	450 m
Maximum roll diameter	80 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Display	LCD
Product color	Black
Display diagonal	3.5 \
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	506 mm
Width	261 mm
Height	398.7 mm
Weight	23000 g
