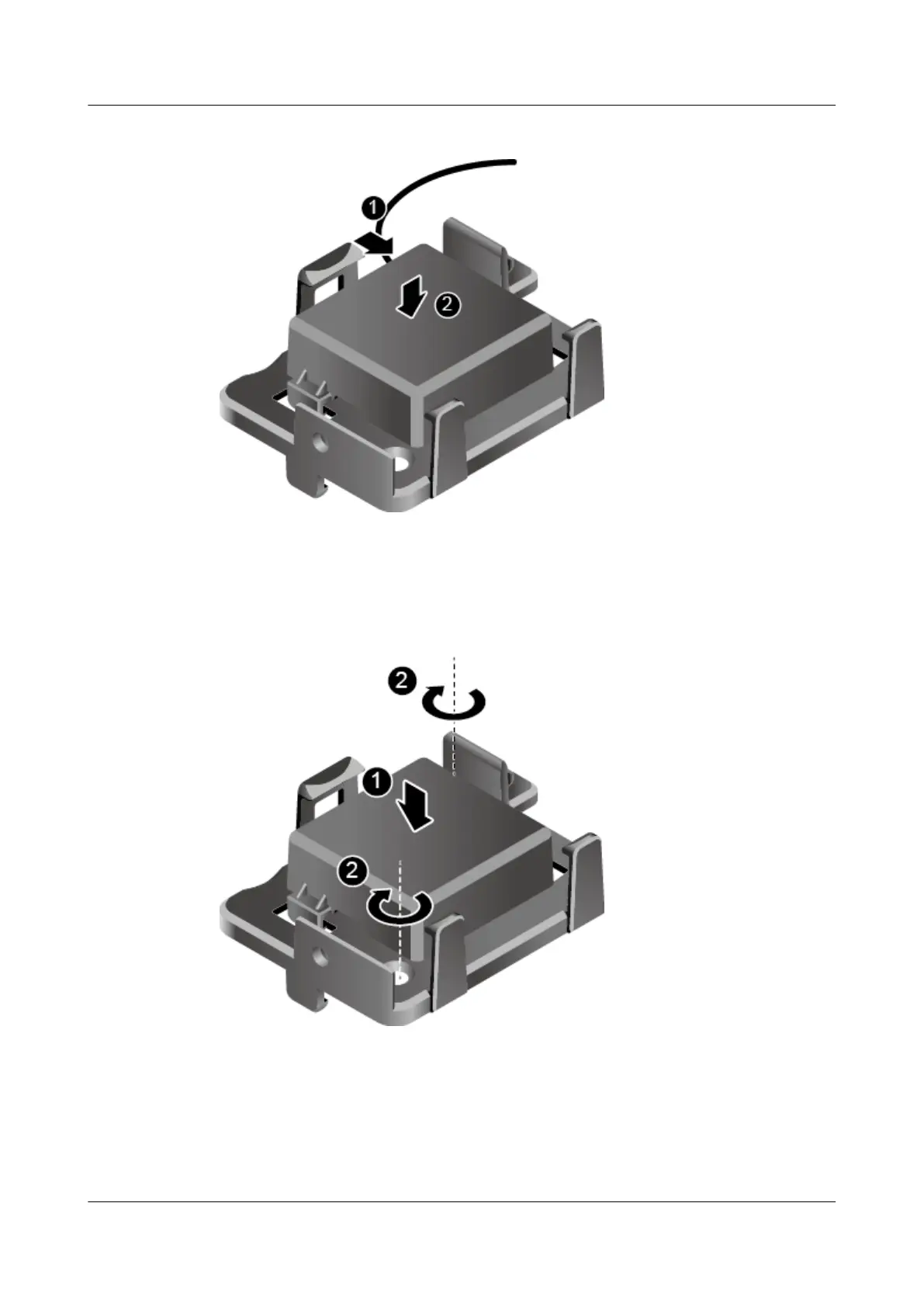

Figure 5-58 Installing a supercapacitor
Step 5 Place the supercapacitor tray in the front I/O module. See step (1) in Figure 5-59.
Step 6 Tighten the screws on the supercapacitor tray. See step (2) in Figure 5-59.
Figure 5-59 Installing a supercapacitor tray
Step 7 Install the cover of the front I/O module in the arrow directions. See steps (1) and
(2) in Figure 5-60.
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 175
