● You have obtained the cabinet number and chassis number of the RH8100 V3.
● You have located the RH8100 V3 based on the preceding information, and
labeled its panel to prevent misoperations.
● You have determined the position on the RH8100 V3 for installing a RAID
controller card.
Tools
● ESD gloves
● M3 Phillips screwdriver
● Packaging materials, for example, an ESD bag
Hardware
Spare RAID controller card
Procedure
Step 1 Wear an ESD wrist strap or ESD gloves. For details, see 1 Safety Instructions.
Step 2 Take the spare RAID controller card out of its ESD bag.
Step 3 Align the connector on the RAID controller card with the port on the mainboard,
and insert the RAID controller card slowly into the mainboard. See step (1) in
Figure 5-100.
Step 4 Tighten the screws on the RAID controller card. See step (2) in Figure 5-100.

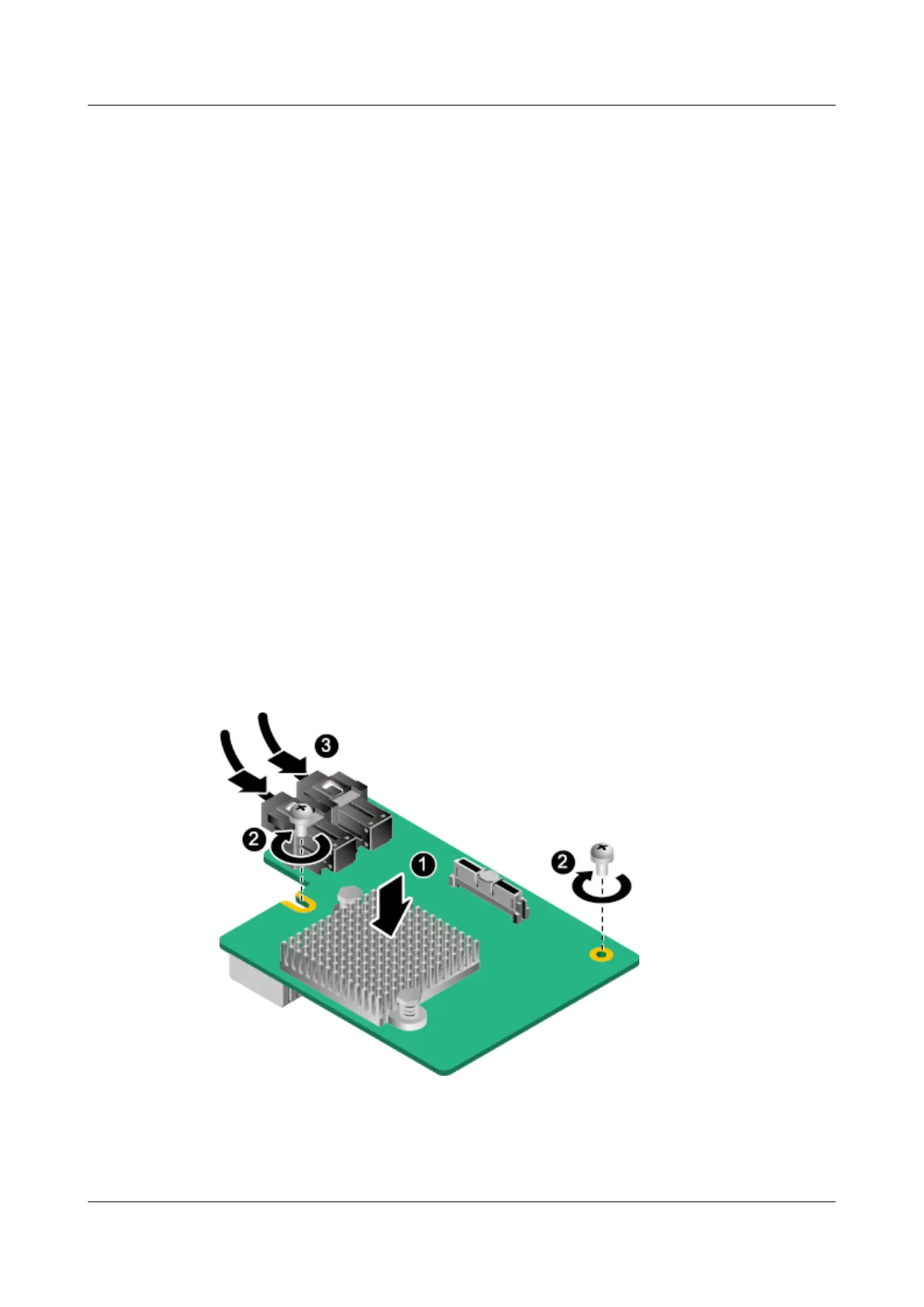

Figure 5-100 Installing a RAID controller card
Step 5 Insert the cables to the RAID controller card. See step (3) in Figure 5-100.
----End
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 218
