Data
● You have obtained the cabinet number and chassis number of the RH8100 V3.
● You have located the RH8100 V3 based on the preceding information, and
labeled its panel to prevent misoperations.
● You have determined the position on the RH8100 V3 for installing the front
hard disk backplane.
Tools
● ESD gloves
● Packaging materials, for example, an ESD bag
● Phillips screwdriver
Hardware
Spare hard disk backplane
Procedure
Step 1 Wear an ESD wrist strap or ESD gloves. For details, see 1 Safety Instructions.
Step 2 Take the spare front hard disk backplane out of its ESD bag.
Step 3 Install the hard disk backplane on to the front I/O module in the arrow direction.
See step (1) in Figure 5-128.
Step 4 Tighten the screws on the hard disk backplane. See step (2) in Figure 5-128.

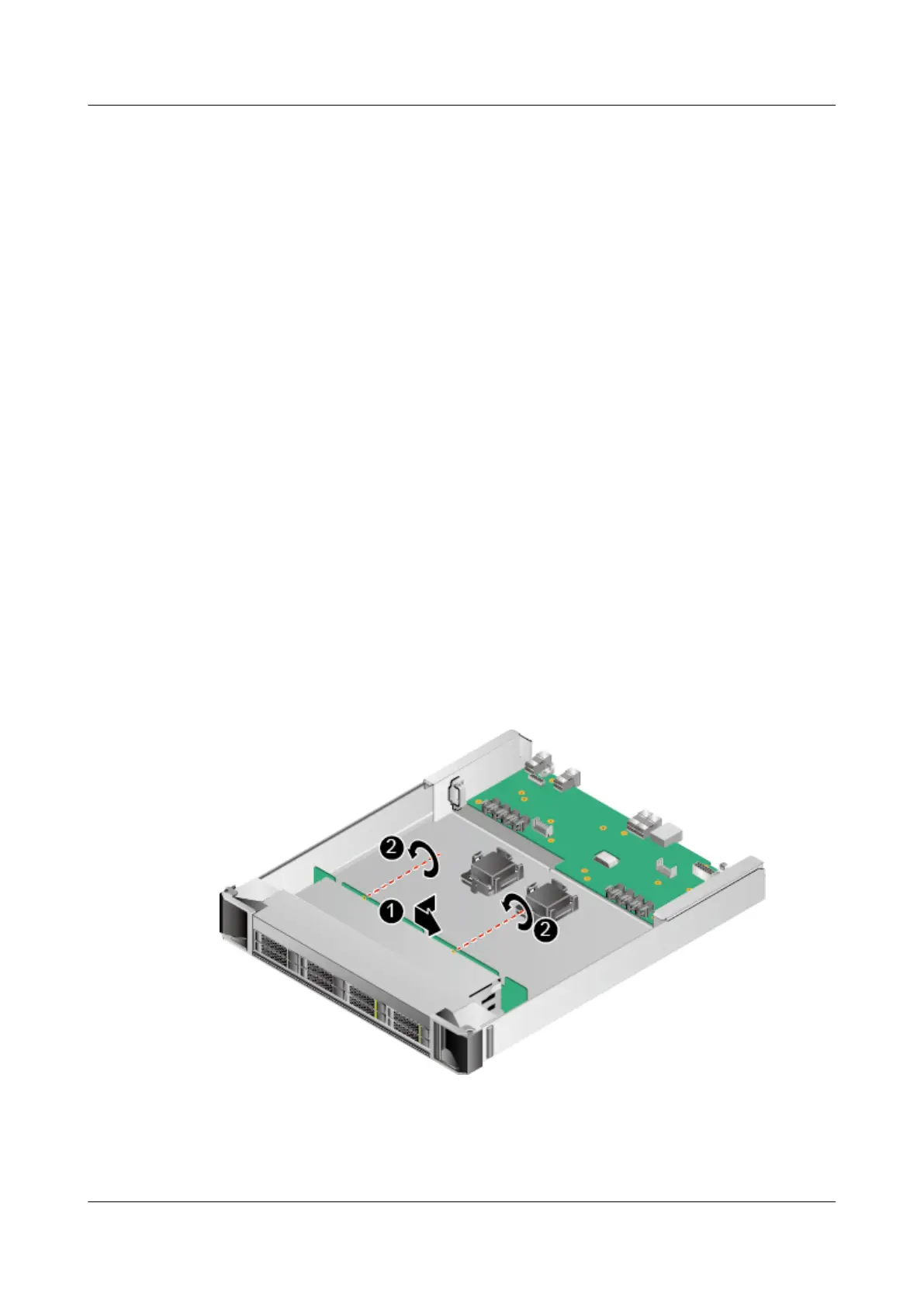

Figure 5-128 Installing a hard disk backplane
Step 5 Connect all cables to the hard disk backplane.
----End
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 250
