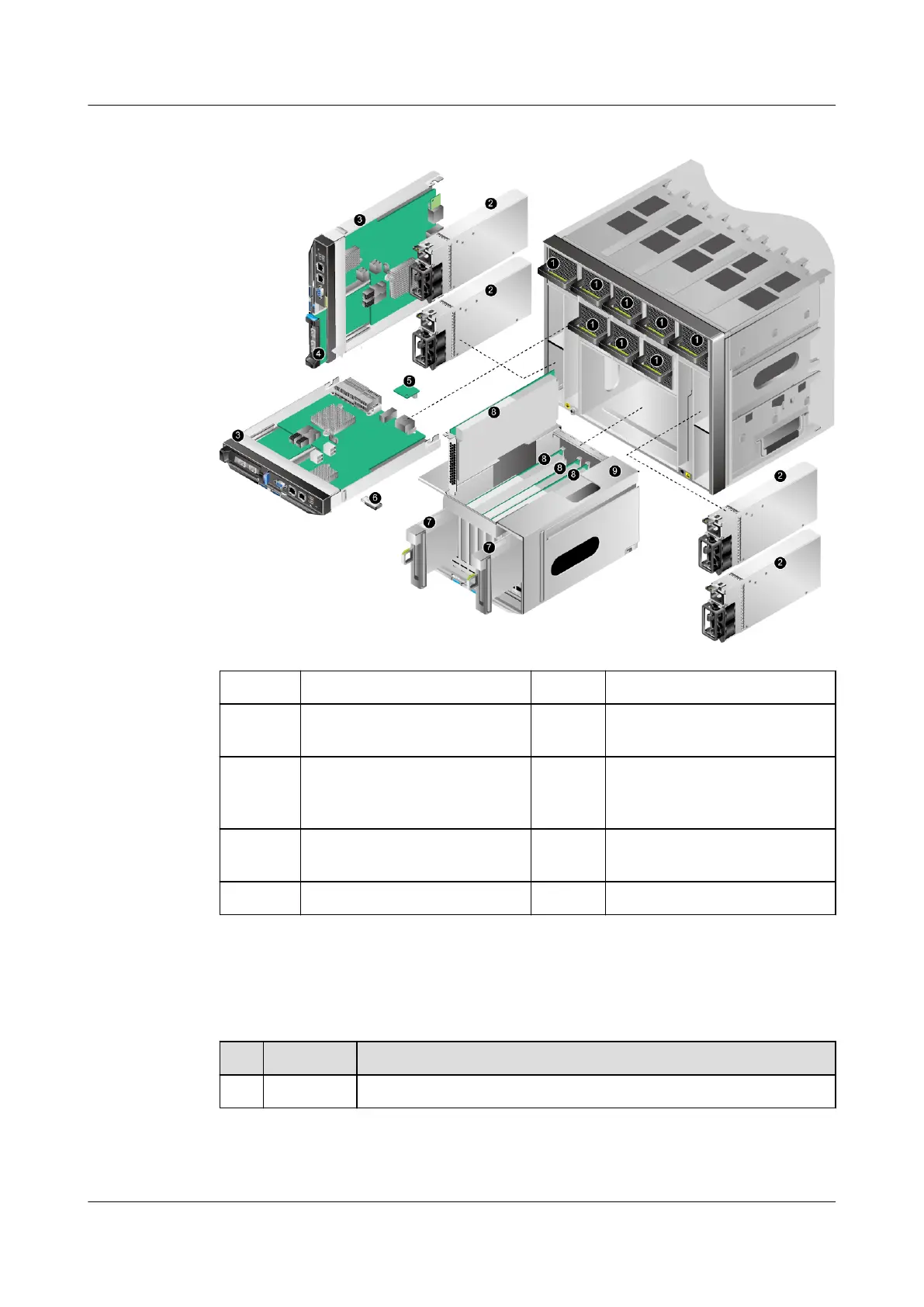

Figure 2-15 RH8100 V3 components (rear view)
1 Fan module 2 Power supply unit (PSU)
3 High-performance Fusion
Console (HFC)
4 Network interface card
(NIC)
5 Trusted platform module
(TPM) or trusted platform
module (TCM)
6 USB ash drive
7 Hot-swappable PCIe card 8 Non-hot-swappable PCIe
card
9 Rear I/O module - -
Table 2-16 and Table 2-17 describe the RH8100 V3 components.
Table 2-16 RH8100 V3 components (front view)
No.
Name Description
1 Chassis Houses and protects all components.
RH8100 V3 Server
User Guide 2 About the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 40
