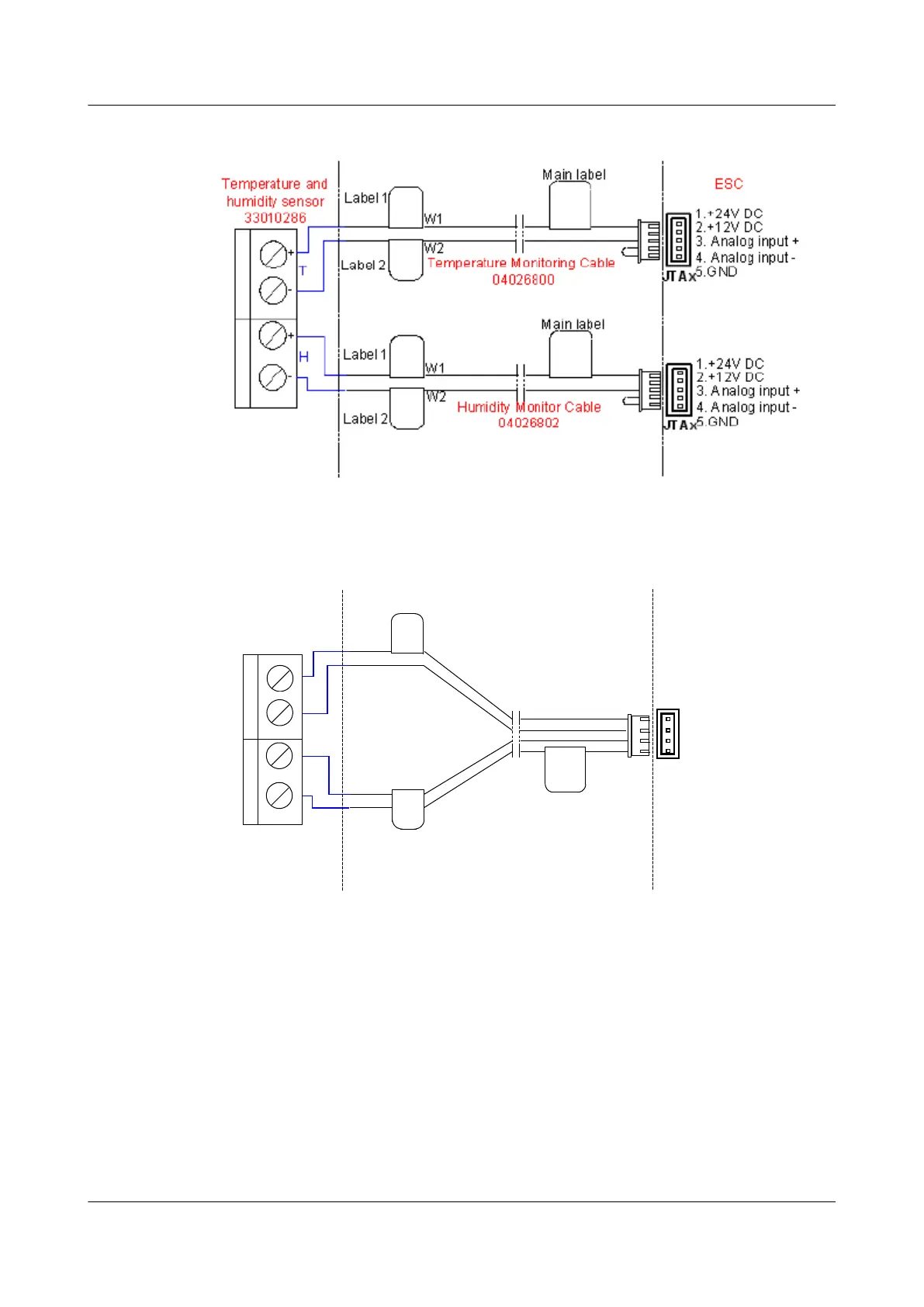

Figure 10-19 Connections of the temperature and humidity sensor (ESC)
Figure 10-20 Connections of the temperature and humidity sensor (Sensor transfer box)
Label 1
Temperature and
humidity sensor
33010286
Cable 04041584
Sensor transfer box
W4
W3
TEM_HU
1.+24V DC
2.Temperature signal
3. +24V DC
4. Humidity signal
T
+
-
H
+
-
Label 2
Main label
W2
W1
----End
10.2.4 Installing the Door Status Sensor
This section describes how to install the door status sensor.
Context
The requirements for installing the door status sensor are as follows:
l The door gap shall be less than 5 mm when the doors are closed.
