5.1 ESCM EMU
This topic covers the function, front panel, and specifications of the ESCM environment
monitoring unit (EMU).
Function
The ESCM EMU includes the environment monitoring board, terminal block, and DIP switch.
It monitors the environment parameters of the whole device, such as smoke, water, door status,
MDF, temperature, and humidity, and also provides the extended monitoring port.
Structure

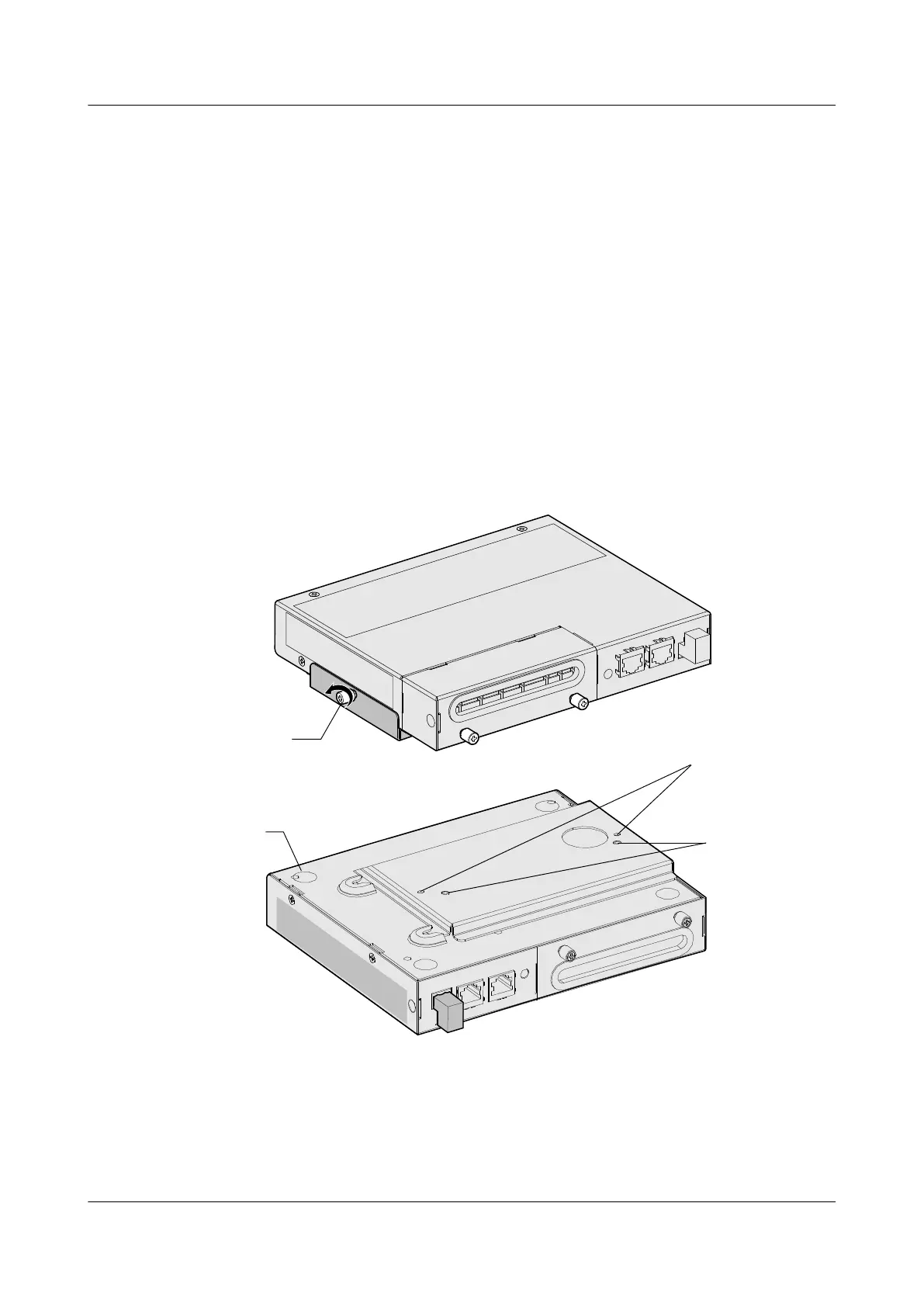

Figure 5-1 shows the structure of the ESCM EMU.
Figure 5-1 Structure of the ESCM EMU
Captive screw
Holes for the M3 sunk
screw (for fastening)
Plastic foot
Holes for the M3 sunk
screw (for unfastening)
Front Panel
Figure 5-2 shows the front panel of the ESCM EMU.
UA5000 Universal Access Unit
Environment Monitoring 5 ESCM Monitoring Solution
Issue 01 (2012-08-17) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
45
