Huawei UA5000 User Manual

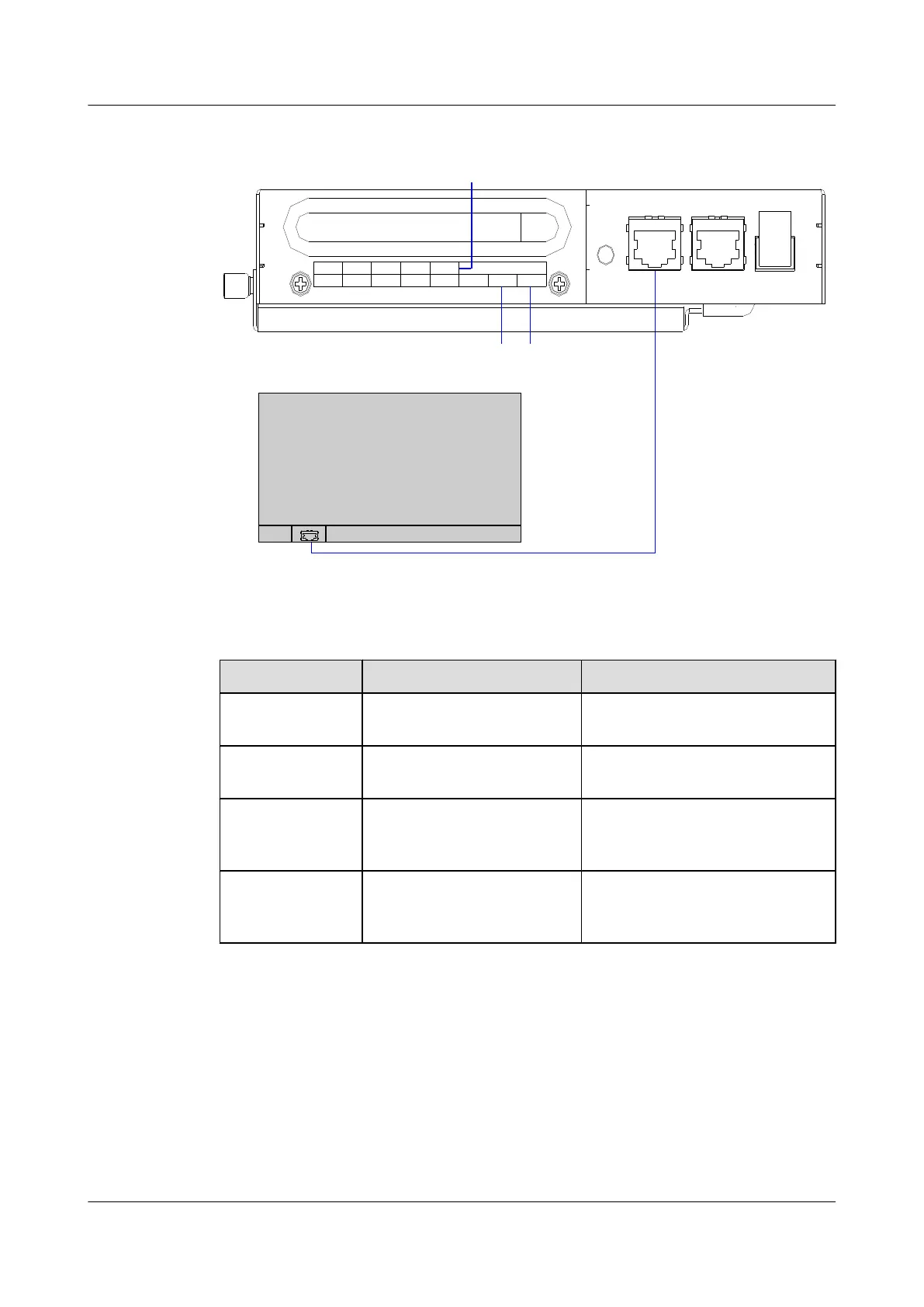

Figure 5-4 Connections of environment monitoring cables in the M200 cabinet
HABM
HABM
JTD1
JTD2
JTD3
JTD4
JTD5
JTD6
JTD7
JTS1
JTA1
JTA2 JAC JTM1 JTP1
SW1
RUN
48VDC
INPUT
RTN(+) NEG(-)
COM2
ESCM
COM1
PSTF
Temperature and Humidity Sensor
Door Status Sensor MDF
Table 5-6 Connections of environment monitoring cables in the M200 cabinet
Cable
One End Connects to... The Other End Connects to...
Door status sensor
connecting cable
Door status sensor JTM1 terminal of the ESCM
MDF monitoring
cable
MDF monitoring point JTP1 terminal of the ESCM
Temperature-
humidity sensor
monitoring cable
Temperature and humidity
sensor
JTA1 terminal of the ESCM
ESC monitoring
cable
Communication port on the
PSTF transfer board of the
HABM
COM1 terminal of the ESCM
5.3 Configuring the Environment Monitoring Parameters of
the ESCM
This topic describes how to configure the temperature, door status, MDF and power supply
monitoring parameters of the ESCM.
UA5000 Universal Access Unit
Environment Monitoring 5 ESCM Monitoring Solution
Issue 01 (2012-08-17) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
51
