Parameter Specification
Cooling method Forced air cooling, with the built-in fan in the rectifier module
Dimensions (excluding
mounting ears)
442 mm x 250 mm x 43.6 mm (W x D x H)
6.2 PMIB01 Sensor Transfer Box
This topic describes the application and front panel of the sensor transfer box, and provides the
specifications of the sensor transfer box.
Function
The sensor transfer box provides various sensor ports to connect the EMU and external sensors.
Overview
The sensor transfer box is an optional part. It provides diverse sensor ports to connect the
monitoring unit to the sensors.
Front Panel

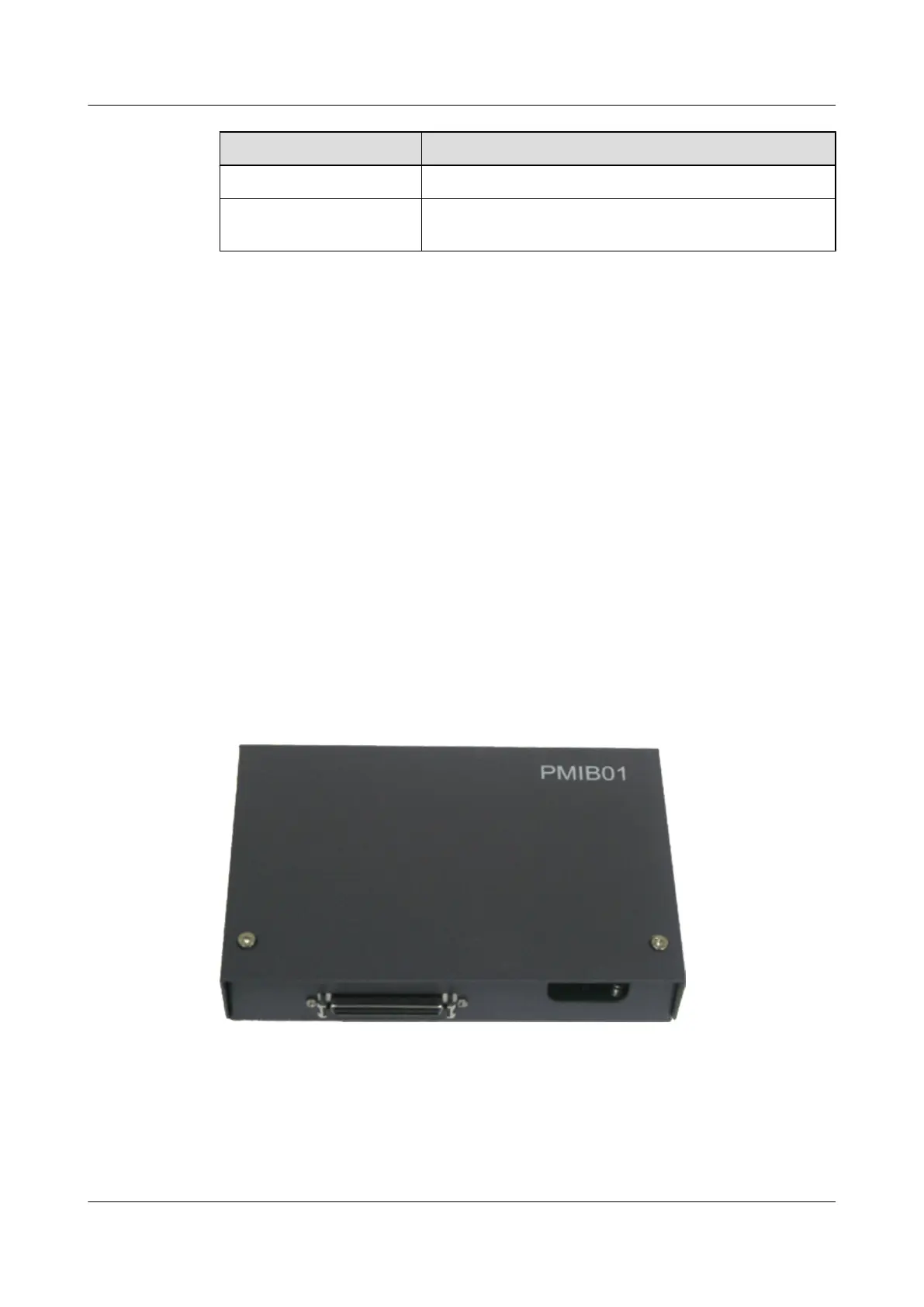

Figure 6-5 shows the PMIB01 sensor transfer box.
Figure 6-5 Front panel of the PMIB01 sensor transfer box
Sensor Port
Figure 6-6 and Table 6-9 describe the sensor ports of the PMIB01 sensor transfer box.
UA5000 Universal Access Unit
Environment Monitoring 6 EPS30-4815AF Monitoring Solution
Issue 01 (2012-08-17) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
65
