Appendix D Installing The Heavy-Duty Cutter
Installing The Heavy-Duty Cutter

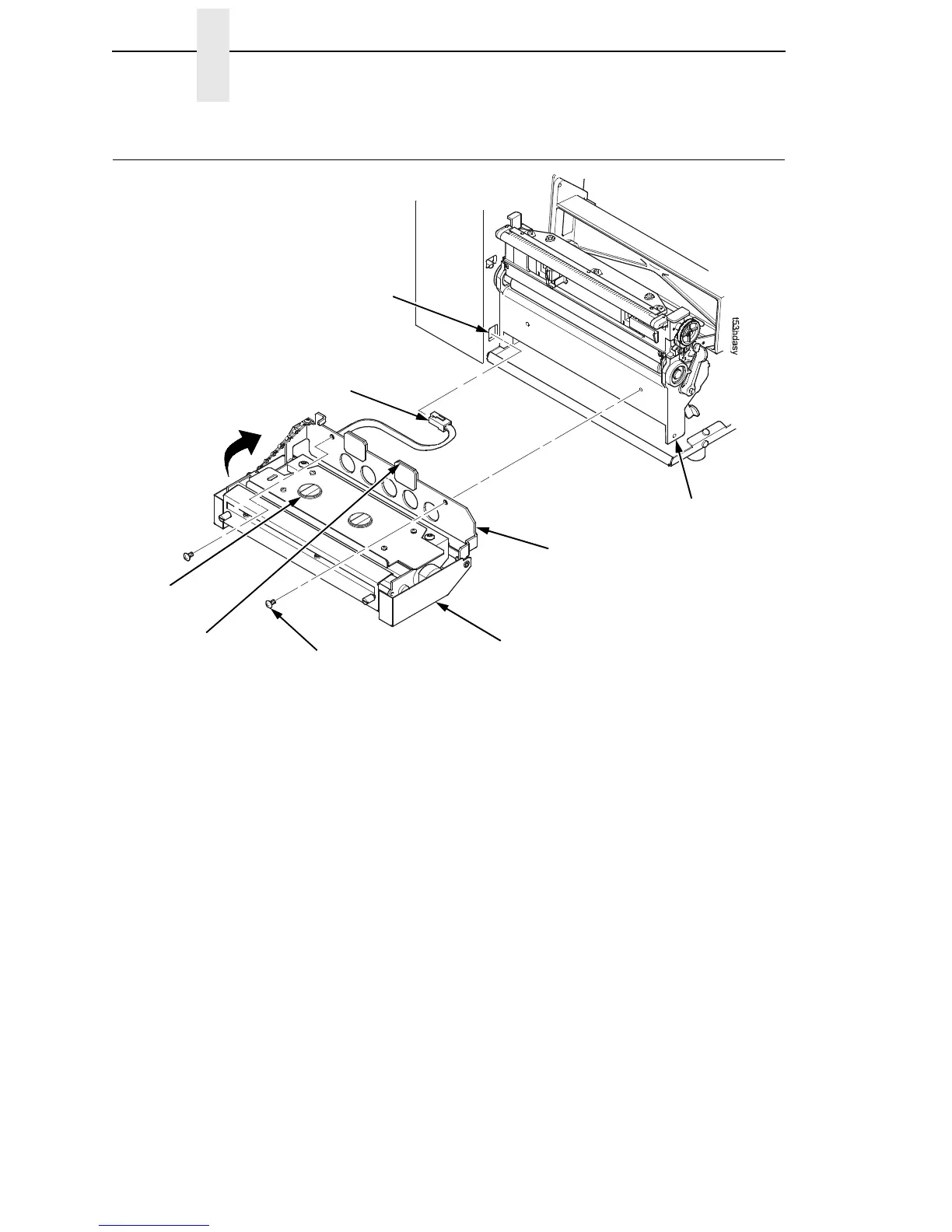

Figure 2. Heavy-Duty Cutter Assembly
1. Plug the RJ-11 connector into the RJ-11 receptacle.
2. Pull the metal tabs from the magnetic catches and swing open the cutter
assembly mounting bracket from the cutter assembly.
CAUTION
The cutter blades are sharp. Keep your fingers away from the cutter
blades.
3. Place the cutter assembly in position.
4. Install the two screws using the appropriate metric hex key.
5. Place the cutter assembly into the up (closed) position.
NOTE: The printer cannot detect the presence of the cutter unless the cutter
is in the up (closed) position and the cutter top cover is installed when
the printer is powered on.
Screw (2)
Cutter Assembly
RJ-11 Receptacle
Cutter Assembly
Mounting Bracket
Lower Support Assembly
RJ-11 Connector
Metal Tab (2)
Magnetic Catch (2)
