Chapter 4. Setting up the KVM switch
The topics in this chapter describe how to set up the KVM switch for use with the
appliance.
Before you begin
The bulk of KVM switch configuration is performed in manufacturing. Use the
following procedures to modify the generic configuration so that the KVM switch
GUI accurately reflects the unique system setup at the customer site.
Note: Use the arrow keys to navigate among the options on the KVM GUI.
Procedure
Perform the following steps to set up the KVM switch.
1. On the TSSC keyboard, press PrtSc to launch the KVM switch configuration
interface.
The Main screen displays:
2. At the Main screen click Setup.
The Setup screen displays:
ts760299

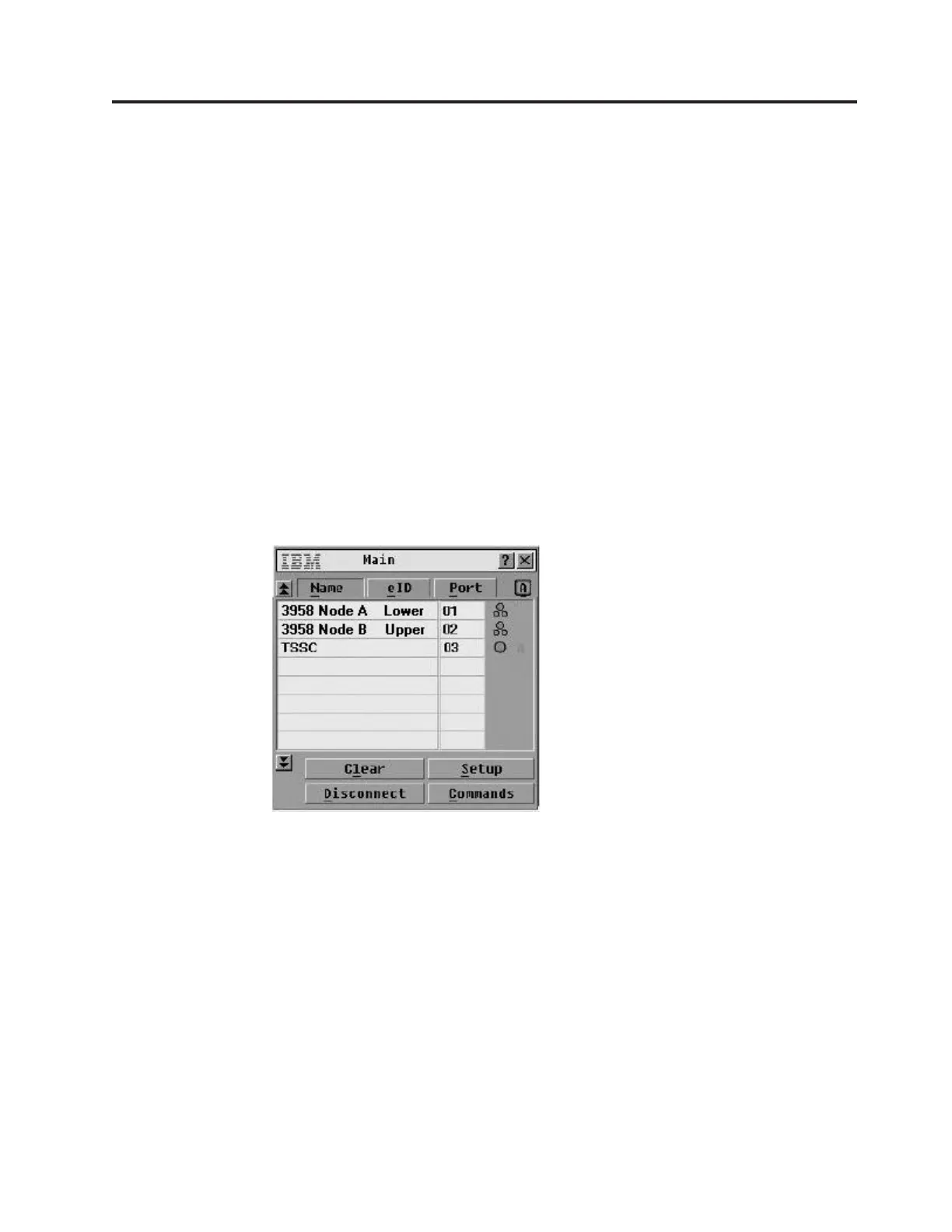

Figure 41. Main screen
© Copyright IBM Corp. 2011 71
