Icom ID-1 User Manual

15
2 INSTALLATION AND CONNECTIONS
New2001
■ Power supply connections
Use a DC power supply with a 10 A capacity and above when
operating the transceiver with AC power. Refer to the dia-
grams below.

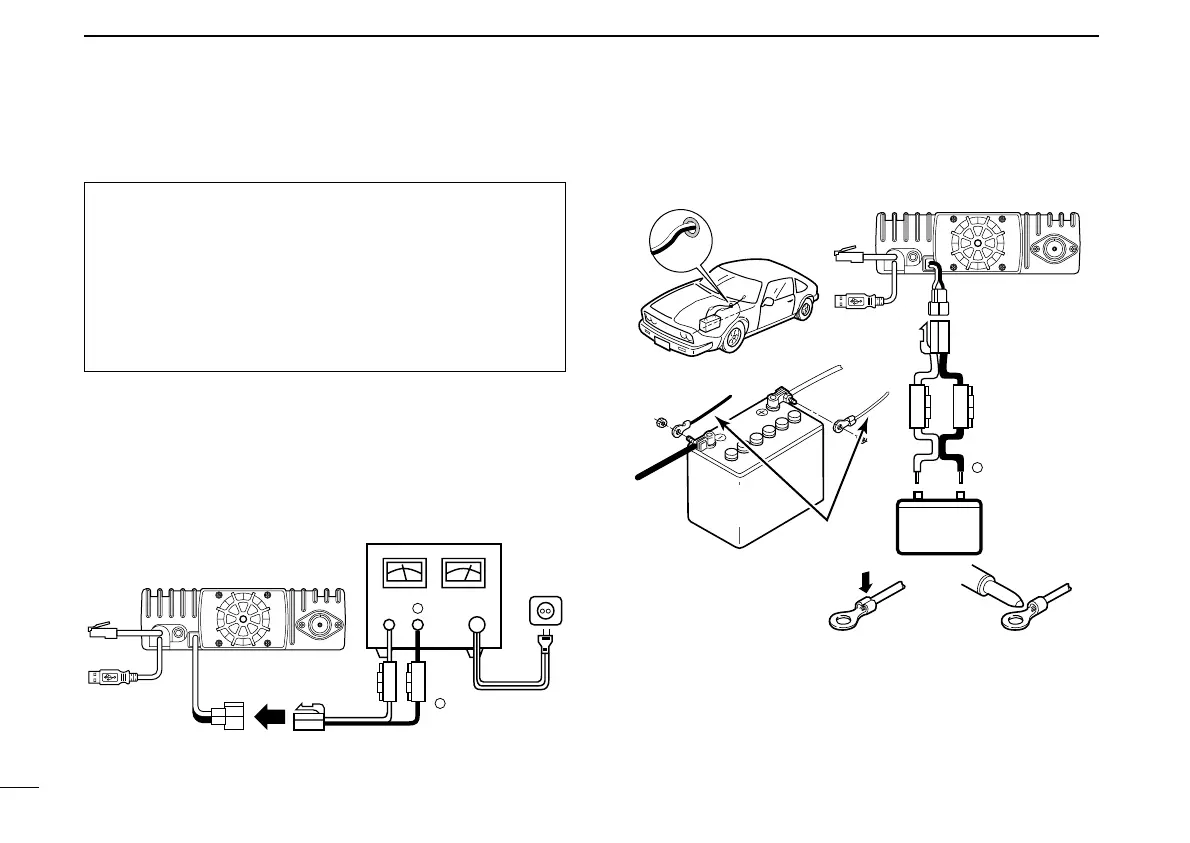

• Connecting to a DC power supply
• Connecting to a vehicle battery
12 V
Grommet
NOTE:
Use terminals for the
cable connections.
WARNING!
NEVER
remove the
fuse holders.
Crimp
Solder
12 V
battery
Supplied
DC power cable
+ red
ID-1
_ black
red⊕
black
−
DC power
supply 13.8 V
AC
outlet
Fuses
15 A
Black
Red⊕
−
⊕
−
ID-1
CAUTION: Before connecting the DC power cable,
check the following important items. Make sure:
• The [POWER] switch is OFF.
• Output voltage of the power source is 12–15 V when you
use a power supply.
• DC power cable polarity is correct.
Red : positive + terminal
Black : negative _ terminal
ID-1_ENG_2.qxd 04.9.22 9:29 Page 15 (1,1)
