2 INSTALLATION AND CONNECTIONS
New2001
■ Connecting a PC
DD

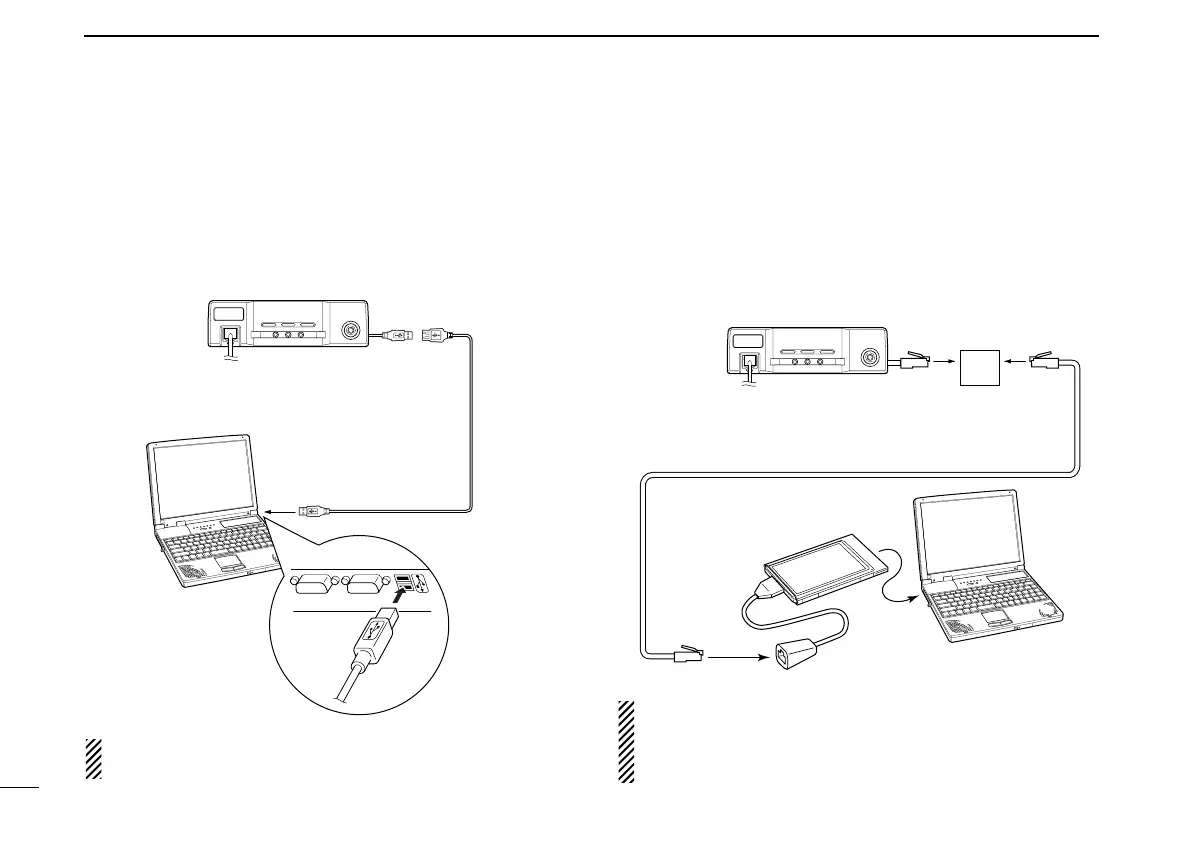

PC connection for control
USB (Universal Serial Bus) cable is used for the connection
between the ID-1 and a PC.
An USB extension cable, OPC-1127 (1.5 m; 4.9 ft), is sup-
plied with the transceiver for extended connection.
NOTE: When connecting the ID-1 and the PC through an
USB hub, use the self-powered type.
DD
PC connection for data operation
Ethernet cable connection is additionally required for the data
operation.
Connect the Ethernet receptacle to the Ethernet port on your
PC directly or through the supplied extension cable with the
cable coupler, if desired.
NOTE: When no Ethernet port is available with your PC,
install an Ethernet card and it’s driver before connecting
the ID-1. Ask your local computer dealer for details about
installing a Ethernet card to your computer.
ID-1
PC
Use the supplied OPC-1069, Ethernet cable (3 m; 9.8 ft),
and the cable coupler for extension, if desired.
to Ethernet
port
to card
slot
Cable coupler
Ethernet card
ID-1
PC
Use the supplied
USB extension cable,
OPC-1127
(1.5 m; 4.9 ft),
if desired.
to USB
port
