7.1 How the Selector Switch is Used

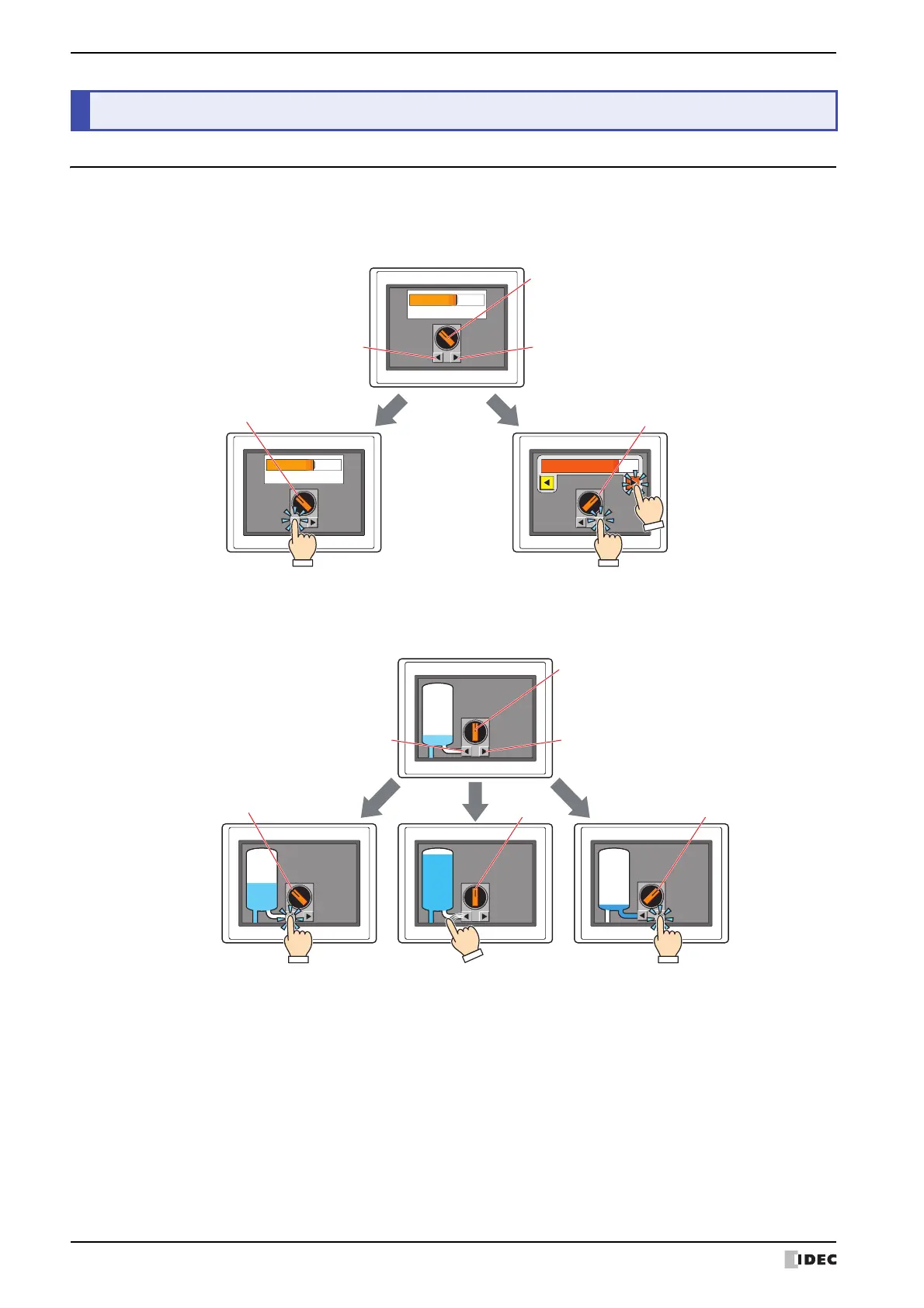

Writes a 0 or 1 to a bit device. This is an exclusive control that only writes a single value as 1 and all other values as 0.
• Switching between two Run Modes (Manual and Auto)
• Switching between three Run Modes (Filling - Stop - Discharge)
7 Selector Switch
Automatic
Manual
Automatic
Auto Manual
Auto Manual Auto Manual
R-button
Ch2
Ch1
L-button
Knob
Press L-button to
switch to Auto.
Press R-button to
switch to Manual.
Operate
manually
FSD
FSD
FSD
FSD
R-button
Ch3Ch2Ch1
L-button
Knob
Press L-button to
switch to Filling.
Switch to Stop.
(The operation varies based
on the switch type.)
Press R-button to
switch to Discharge.
